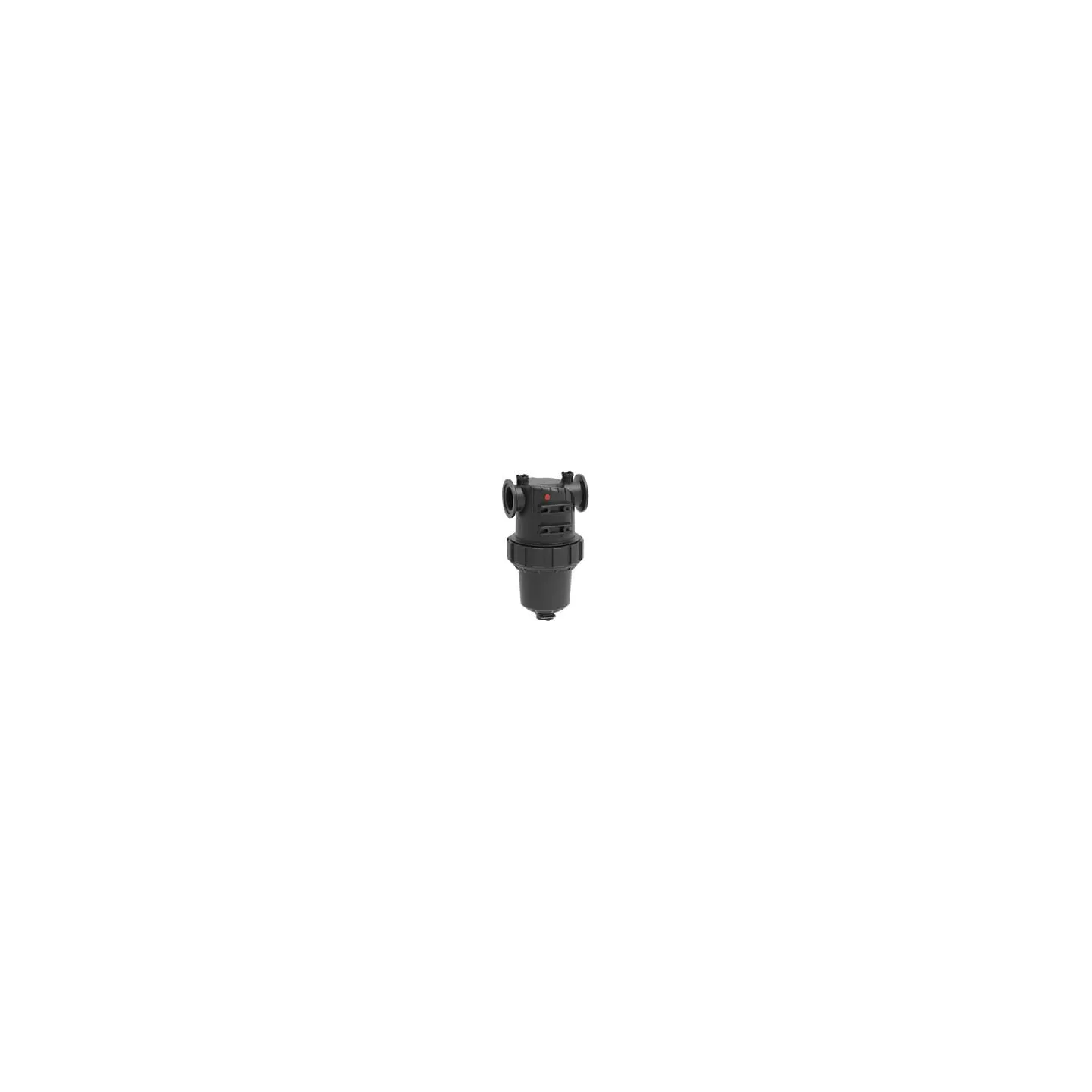

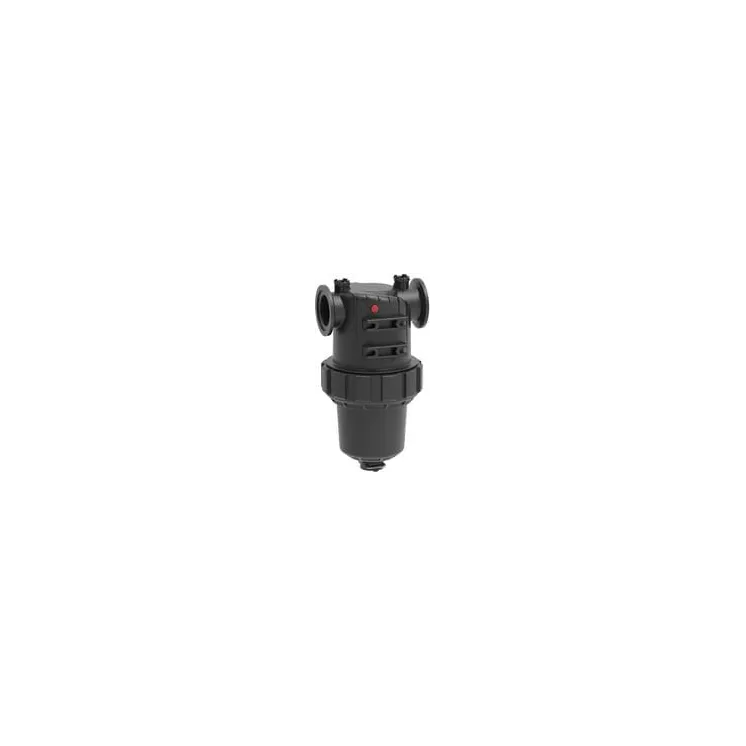

Pressure filter 2FP 500 L/min. 80 Mesh Viton, outlet T3F 33031735V Arag
IN WAREHOUSE

17404

Part number
33031735V
EAN8026834428980
Unit
Each
Product details
  • Line filters of the 330 series are designed to be mounted on circuits of machines with a high section flow rate.
  • The filter has a banjo flange connection, and thanks to the high flow rate of 500 l/min and the minimal pressure drop, circuits can be designed with 853-series ball valves for perfect integration and maximum compactness and efficiency.
  • At the top, there are two T1 fork couplings for mounting pressure gauges.
  • At the bottom, a T3 female fork coupling for connection of a drain valve.
Medium
Water
Bypass
Yes
Height
327 mm
Outside diameter
168 mm
Max flow rate
550 l/min
Outlet port type
Flange Banjo
Outlet port diameter
2 Inch
Mesh
80
Filtration surface
162 cm²
Sealing material
Viton
  • Brand
    Arag
  • Reference
    33031735V
  • In stock
    1 Item
  • Condition
    New
  • EAN
    8026834428980
