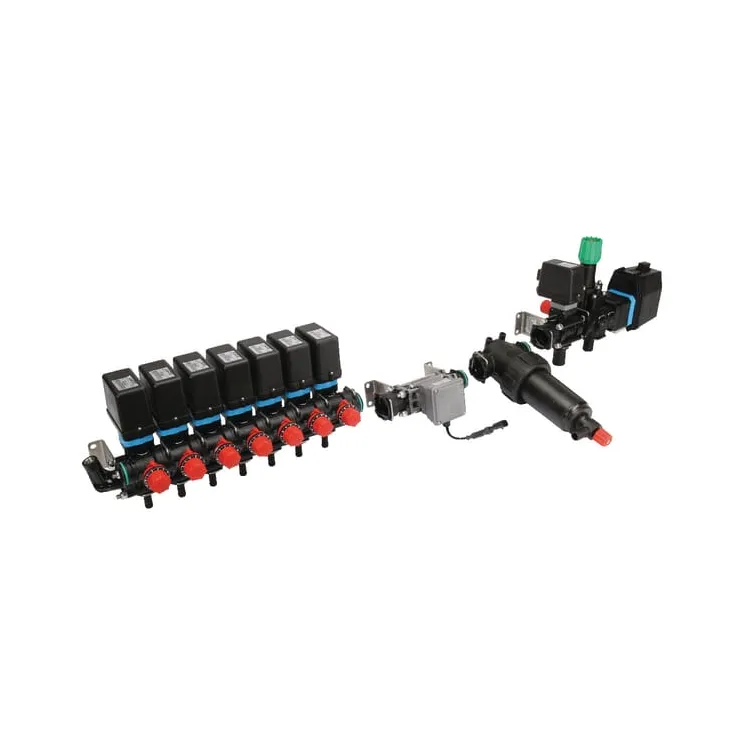

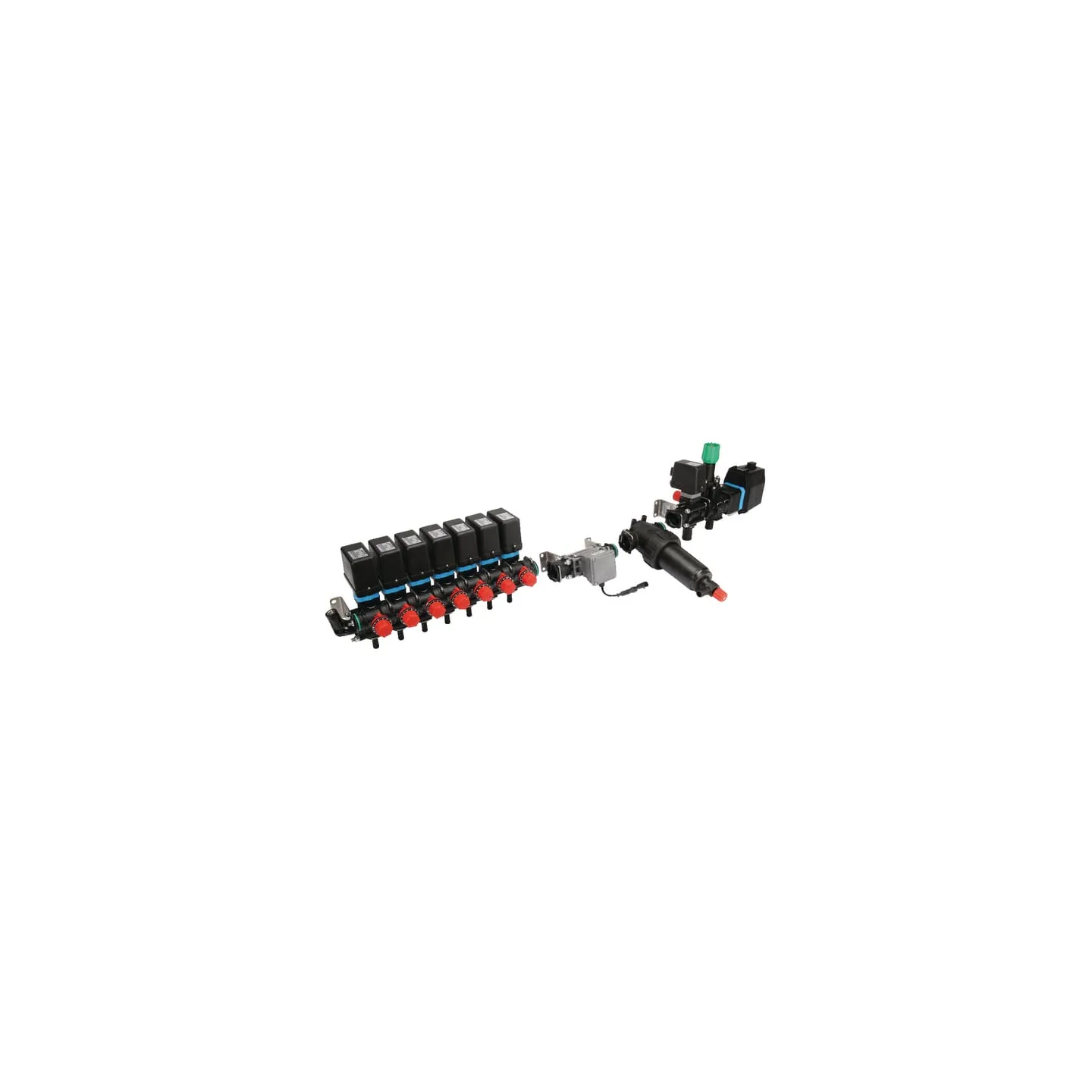

Bravo fitting standard 7TB 250l 4645702U7DSKIT

Name: Bravo fitting standard 7TB 250l 4645702U7DSKIT
Brand: Arag
SKU: 4645702U7DSKIT
Price: 2288.27 EUR
Availability: BackOrder

Payment options

€2,288.27

Tax included

On Request

Bravo fitting standard 7TB 250l 4645702U7DSKIT Arag 4645702U7DS KIT4645702U7DSKIT

ON REQUEST

ID: 18186

Description

Part number	4645702U7DSKIT
EAN
Unit	Set
Details	Modular design
Application range	For crop sprayers
Properties	Housing made from fibreglass-reinforced nylon Inner parts made from Delrin® and Inox steel AISI 303 Viton® seals Are equipped with hose nipples for inlet and a by-pass. Further connections can be found under "easylink" P214315 (series 463) and P358607 (series 473) Resettable internal fuse
Benefits	Easy installation and replacement of components with fork connectors
For use with	Bravo 110, 120, 180, 300S
Type	7 sections
Consists of	Main switch valve with pressure-relief valve Proportional pressure regulating valve Pressure filter Flow meter 7 section valves with constant-pressure collector, without female part on the pressure side; these can be found under "easylink" P222878 Connection for pressure gauge or pressure transducer To be ordered separately: Pressure transducer: 466113.200 (0-20 bar) for 180S, 300, 300S
P max. (bar)	20 BAR
Numbers of valves	7
Components	8730022S; 46452U50; 32621M3; 4621AA4A5B5; 46301751
Flow rate	250 l/min
