| Part number | 4627707A | |
|---|
| EAN | 8026834338104 | |
|---|
| Unit | Each | |
|---|

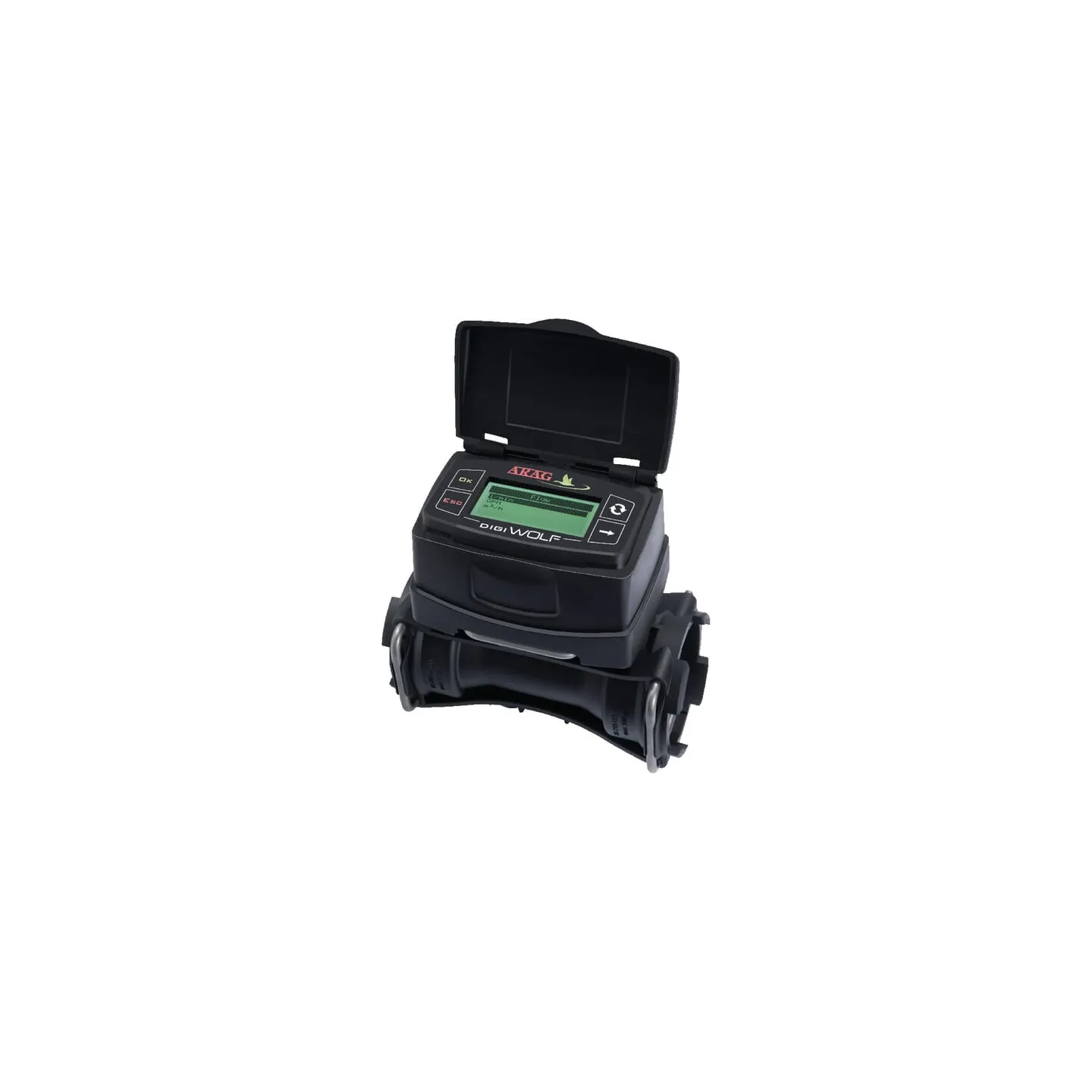

| Details | - Arag Paddle flow meter Digi Wolf
- With digital display
- For reading the actual liters per minute and total number of liters.
- With two-independent resetting counters.
- Items with Suffix A - Power-by mains 12Vdc
- No Suffix Powered by 2x battery (AA)
| |
|---|
| Application range | Rates from 10 to 800 l/min available | |
|---|
| Properties | - Instant rate display (l/min)
- Supplied fluid display
- Unit of measurement: liters or US Gallons
- 2 separately resettable counters
- Programmable flow threshold alarm (min./max.)
- Assisted constant setting procedure
- Characteristic mistake: 1% of the full scale
- Operating pressure: up to 20 bars*
- Parts in contact with the fluid are made of fiberglass and Delrin® reinforced Nylon
| |
|---|
| Benefits | - High accuracy
- Programmable multilingual graphic display
- Available either with external battery (12 Vdc) or inside cell power supply
- Display snap-on cover
- Body with fork connectors for flexible connection layout
- Sapphire paddle pin to minimize rotational friction and maximize sensitivity and accuracy
- Paddle assembly equipped with ‘TWIST’ system for either cleaning or replacing operations without the need of any tools
- Fully sealed and watertight electronic sensor
| |
|---|
| Consists of | - Digital Display
- Paddle Flow meter
- Note: Unions with fork connectors on should be ordered separately
| |
|---|
| Connection | T7 F | |
|---|
| Working pressure max. | 7 BAR | |
|---|
| Measure range | 40-800 l/min | |
|---|
| Primary power supply | 12 Vdc | |
|---|
