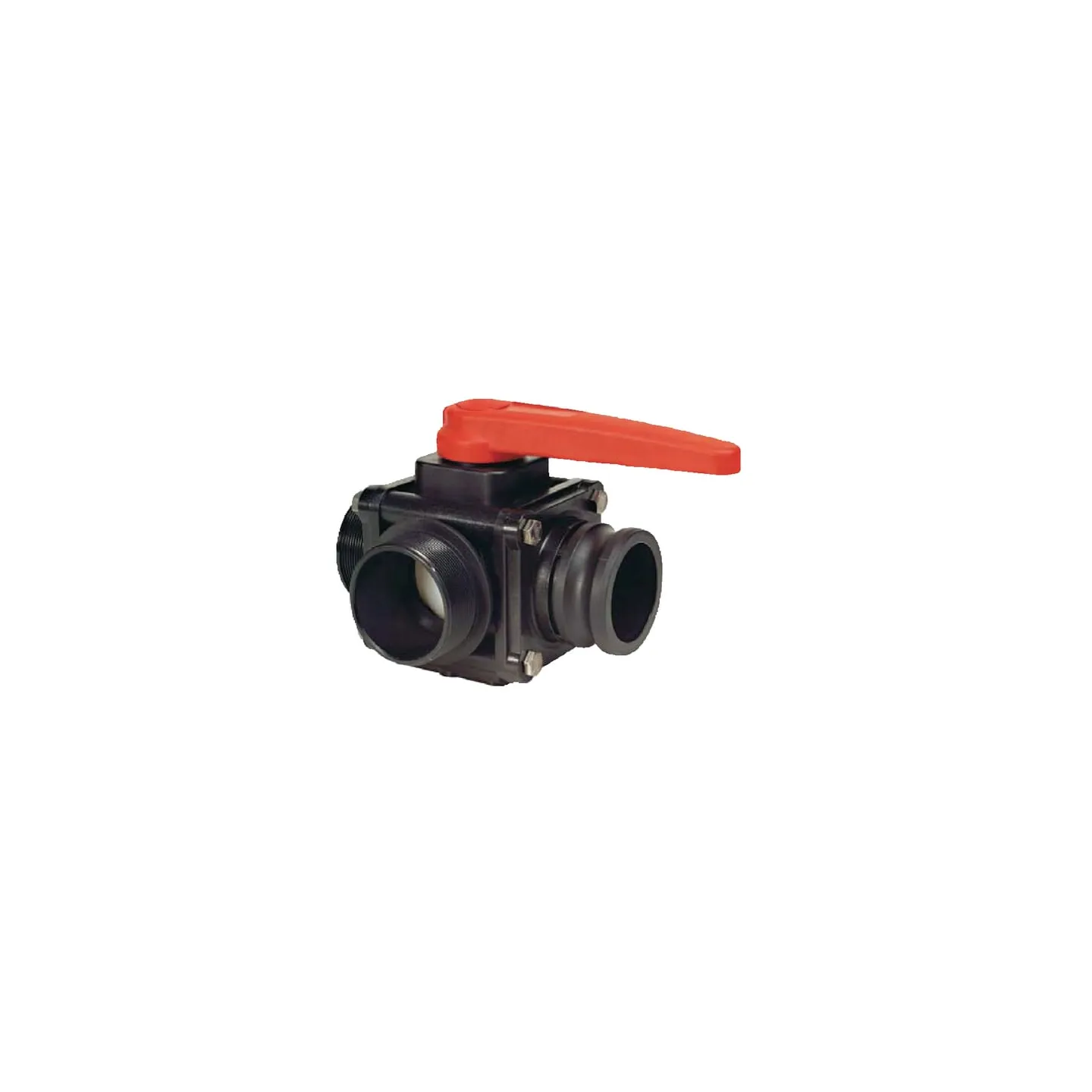

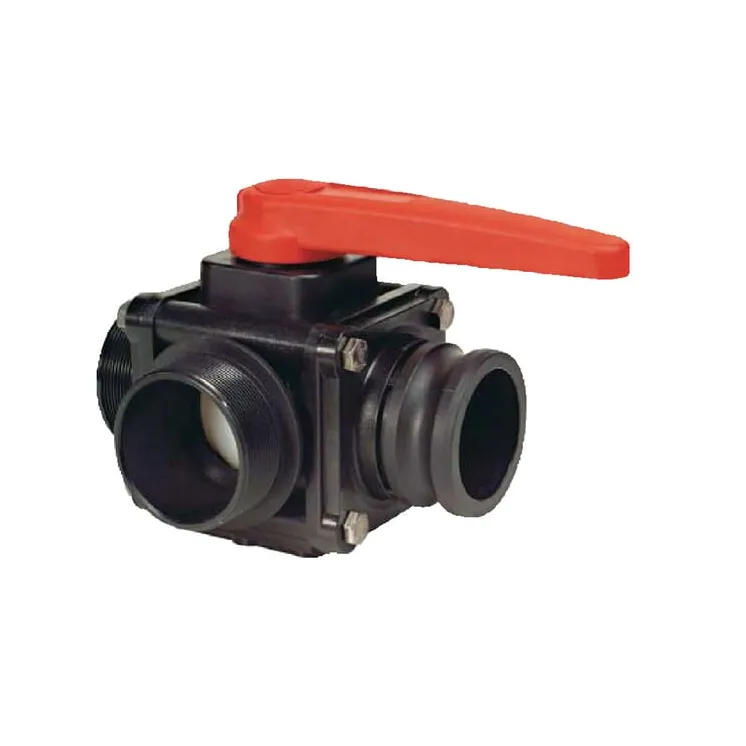

Ball - valve 3 ways 2 M 453016H77 Arag
search
  • Ball - valve 3 ways 2 M 453016H77 Arag

Ball - valve 3 ways 2 M 453016H77

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€79.82
Tax included
On Request
Ball - valve 3 ways 2 M 453016H77 Arag
ON REQUEST

18550

Part number
453016H77
EAN8026834224520
Unit
Each
Properties
  • The housing is made from fibreglass-reinforced polypropylene
  • Teflon® seal seats
  • Screws and bolts made from stainless steel
  • Ball made from fibreglass-reinforced polypropylene
  • Seals made from EPDM
Technical info
  • Lever 90° adjustable
  • The handle is rounded off for safe and comfortable handling
  • The "F" and "M" abbreviations in the properties are female (internal screw thread) and male (external screw thread) respectively
  • Connections: 2 threads and a CAMLOCK male part
Number of positions
3
Number of ports
3
Type
Manual valve
Max working pressure
10 BAR
Connection type
Quick coupling system Camlock
Connection thread diameter
2 Inch
LConnection thread length
27 mm
DNNominal inner diameter
50 mm
Ball material
Polypropylene
ATotal length
201 mm
Housing width
109 mm
  • Brand
    Arag
  • Reference
    453016H77
  • Condition
    New
  • EAN
    8026834224520
