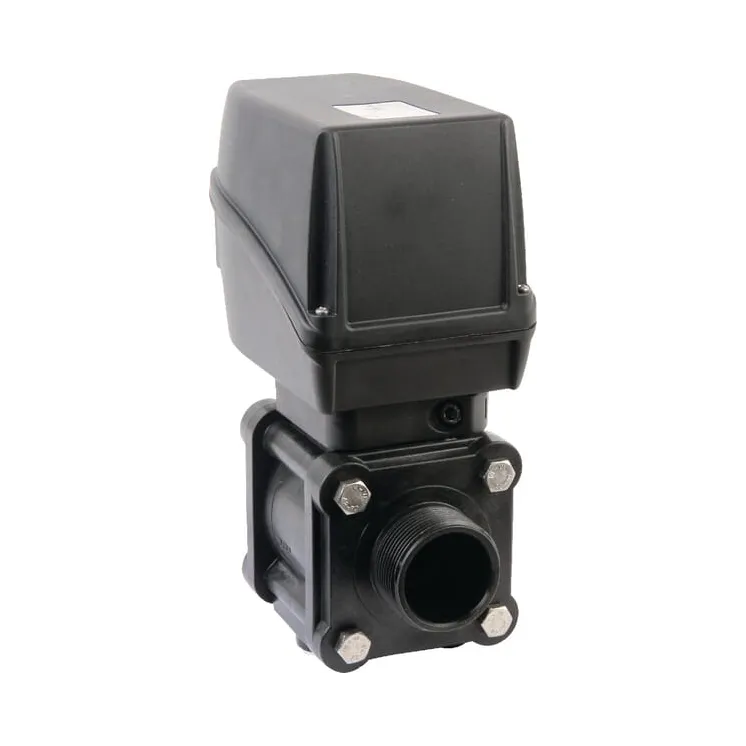

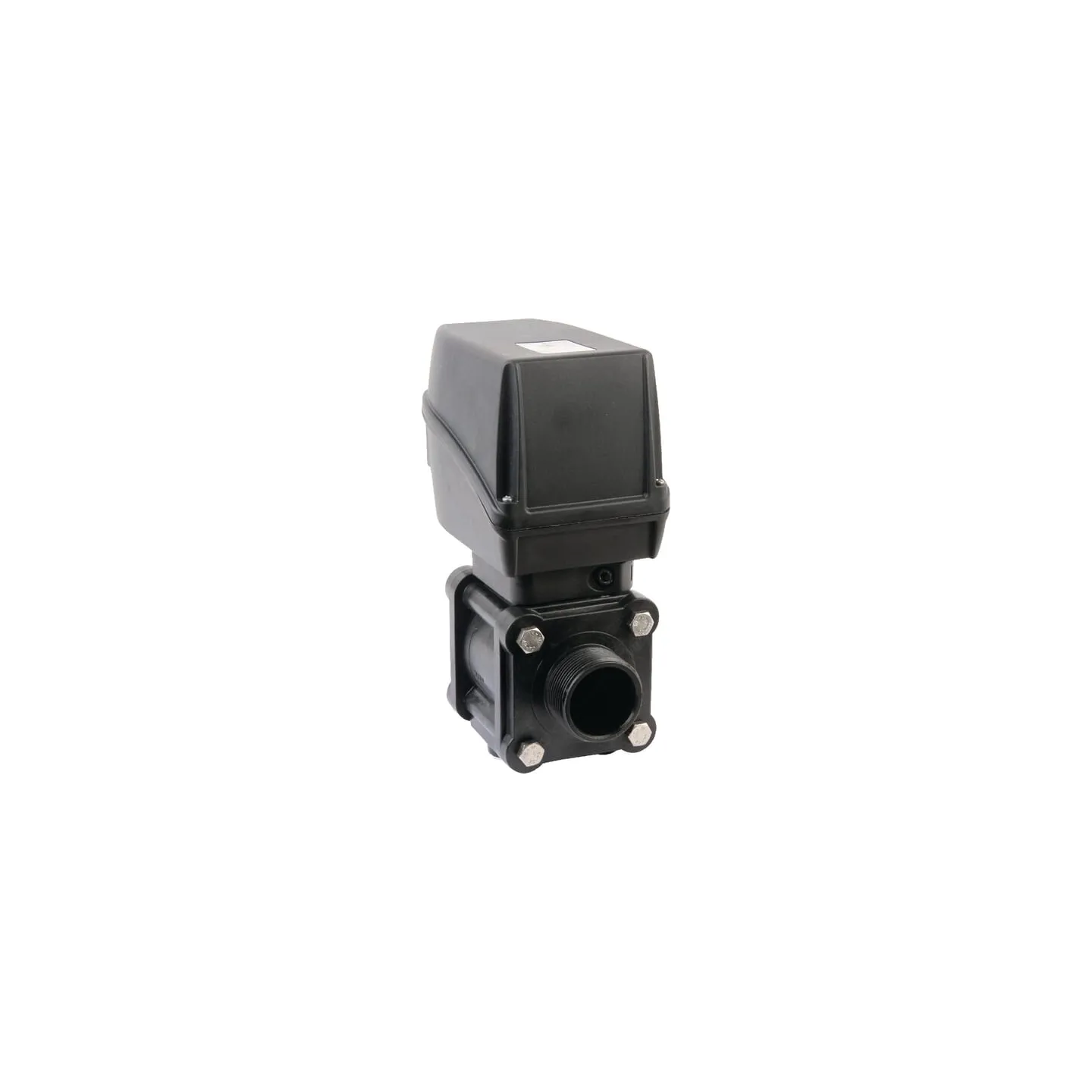

Elec. 2-way ball valve 1 1/2 853K05E66 Arag 453705E66T 853705E66
search
  • Elec. 2-way ball valve 1 1/2 853K05E66 Arag 453705E66T 853705E66

Elec. 2-way ball valve 1 1/2 853K05E66

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€456.91
Tax included
On Request
Elec. 2-way ball valve 1 1/2 853K05E66 Arag 453705E66T 853705E66
ON REQUEST

18846

  • Brand
    Arag
  • Reference
    853K05E66
  • Condition
    New
  • CODE
    453705E66T 853705E66
  • EAN
    8026834395954
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
853K05E66
EAN8026834395954
Unit
Each
Properties
  • Ball positioning seats made from Teflon
  • Internal O-rings made from viton
  • Clamping devices for flange mounting made from stainless steel, protected by the valve housing
Technical info
  • The abbreviation "A" in the item number means: female thread on both sides; "E" means male thread on both sides
  • NO: normally open
  • The valves are designed for the 3-wire function (++-), a supply with 12Vdc:
  • As long as the controller is fed, the valve rotates and moves into position, in which it interrupts the power consumption independently.
  • If the power supply is interrupted, the gear motor brings the ball back to its original position
  • The valves are also compatible with the 2-wire controllers:
  • where the opening/closing movement by reversing the supply polarity is achieved with a double diverter
Ball material
Stainless steel 316
Voltage
12V/ 3 A V
Response time
2.3 s
CHeight from top to center
178 mm
FThread
1 1/2" M Inch
BHeight from bottom to center
52 mm
XLength between fixing holes
40 mm
LLength nipple
24 mm
ALength pass through
153 mm
Max. working pressure
10 BAR
DNNominal diameter
40 mm
YWidth between fixing holes
49 mm
EWidth pass through
91 mm
