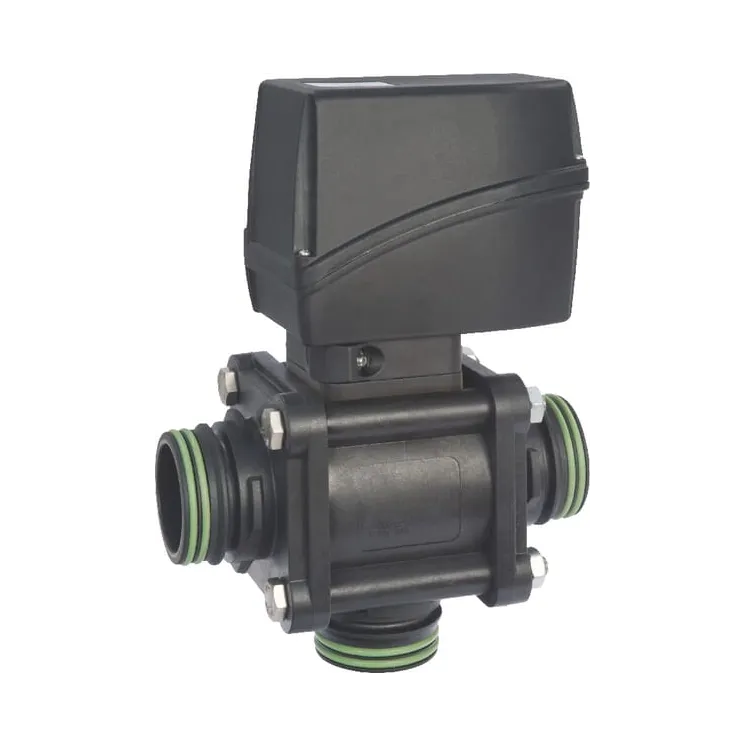

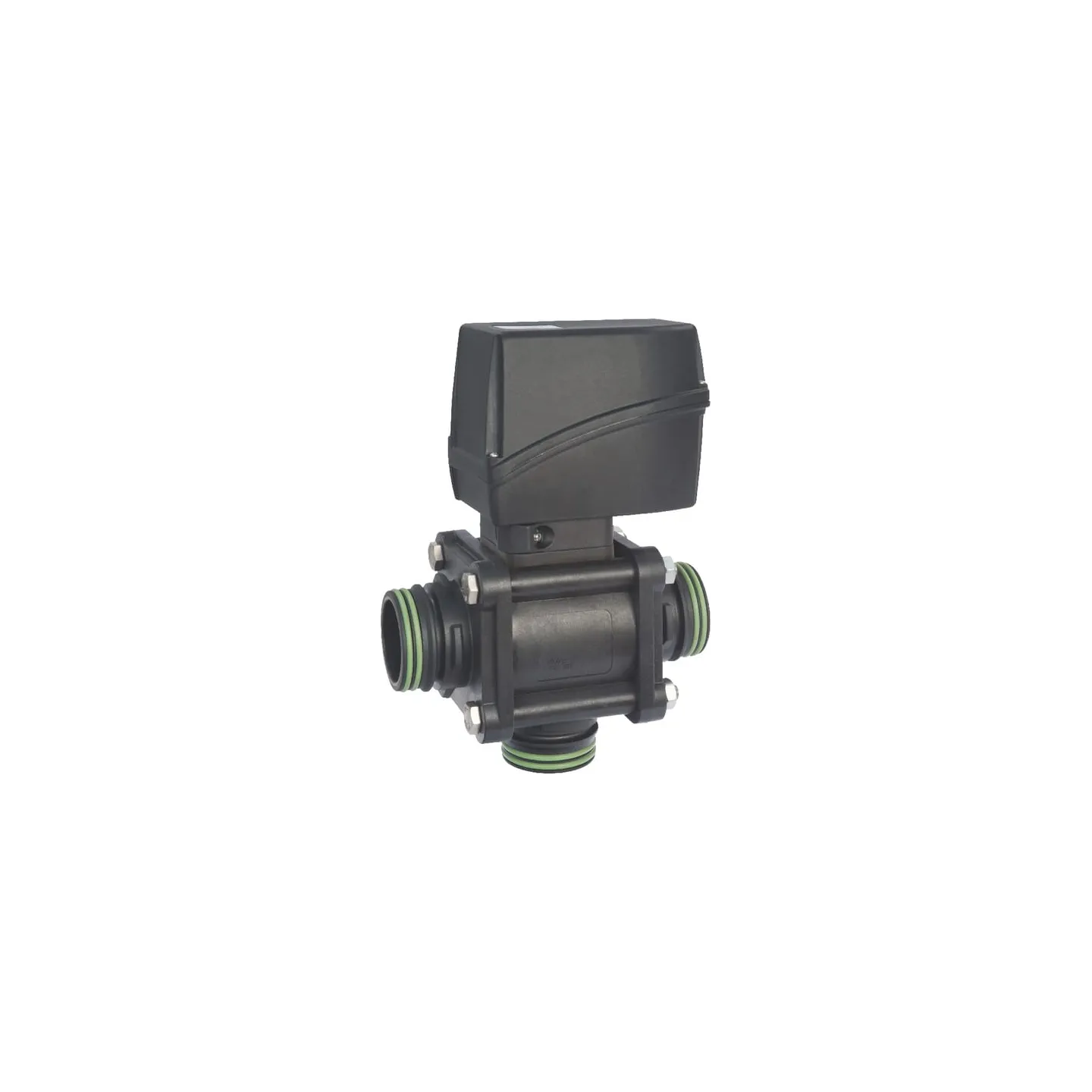

Electric 3 Way ball valve T7M 853K26S77

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€440.10
Tax included
On Request
Electric 3 Way ball valve T7M 853K26S77 Arag 853726S77
ON REQUEST

18876

Part number
853K26S77
EAN8026834396913
Unit
Each
Properties
  • Ball positioning seats made from Teflon
  • Internal O-rings made from viton
  • Clamping devices for flange mounting made from stainless steel, protected by the valve housing
Technical info
  • NO: normally open
  • The valves are designed for the 3-wire function (++-), a supply with 12Vdc:
  • As long as the controller is fed, the valve rotates and moves into position, in which it interrupts the power consumption independently.
  • If the power supply is interrupted, the gear motor brings the ball back to its original position
  • The valves are also compatible with the 2-wire controllers:
  • where the opening/closing movement by reversing the supply polarity is achieved with a double diverter
Ball material
Stainless steel 316
Voltage
12V/ 3 A V
Response time
4.6 s
A
203 mm
B
61 mm
C
187 mm
DN
50 mm
F (BSP)
T7 Inch
Max. working pressure
8 BAR
Y
60 mm
X
57 mm
  • Brand
    Arag
  • Reference
    853K26S77
  • Condition
    New
  • CODE
    853726S77
  • EAN
    8026834396913
