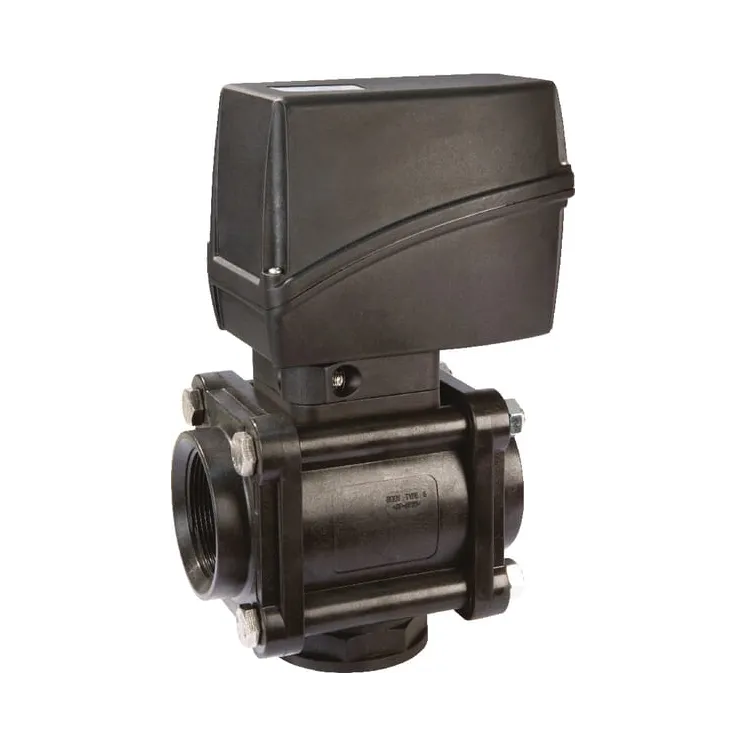

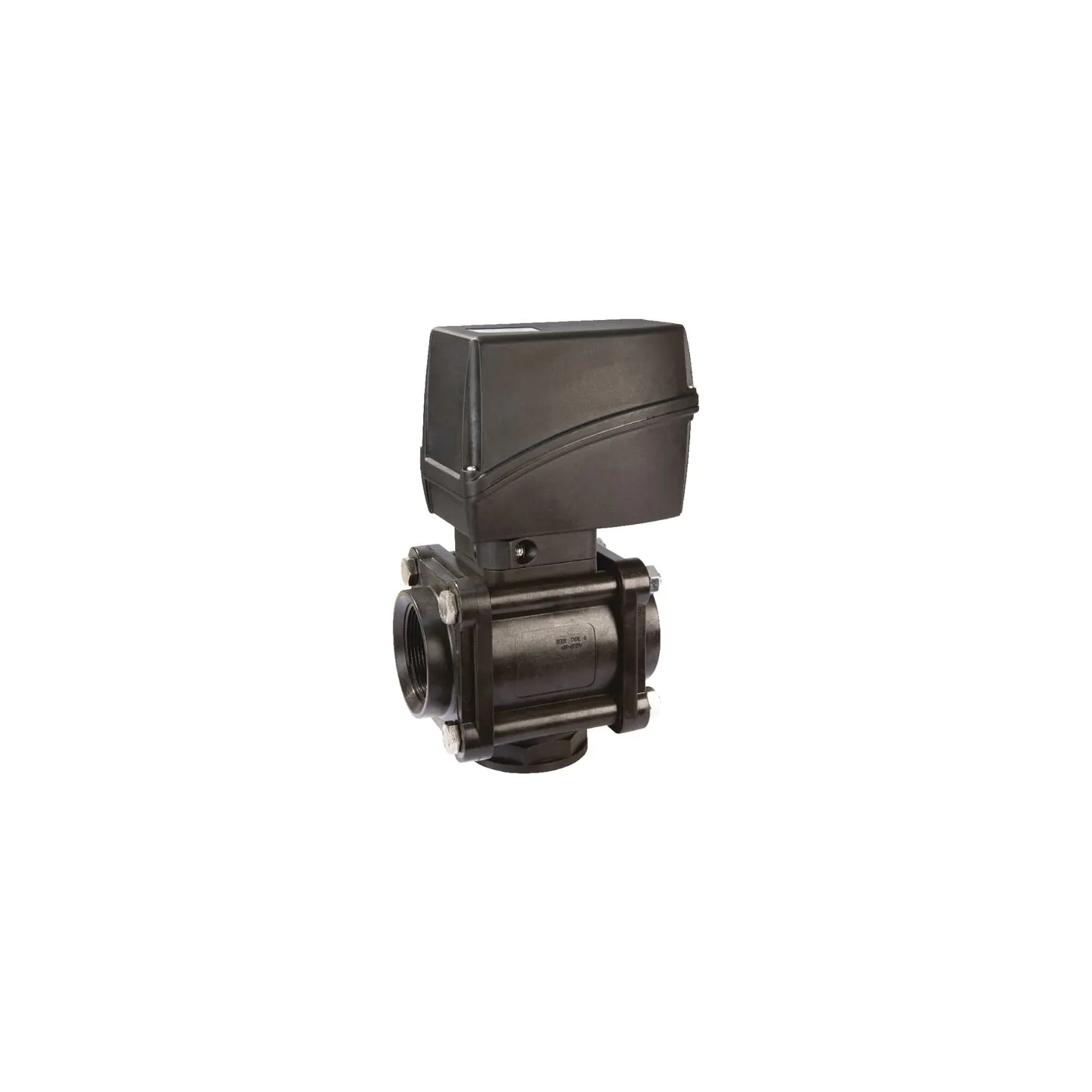

Electric 3-way ball valve 1 1/4 853K24A55

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€469.00
Tax included
On Request
Electric 3-way ball valve 1 1/4 853K24A55 Arag 453724A55T 853724A55 853824A55 853L24A55
ON REQUEST

18886

  • Brand
    Arag
  • Reference
    853K24A55
  • Condition
    New
  • CODE
    453724A55T 853724A55 853824A55 853L24A55
  • EAN
    8026834430556
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
853K24A55
EAN8026834430556
Unit
Each
Properties
  • Ball positioning seats made from Teflon
  • Internal O-rings made from viton
  • Clamping devices for flange mounting made from stainless steel, protected by the valve housing
Technical info
  • The abbreviation "A" in the item number means: female thread on both sides; "E" means male thread on both sides
  • NO: normally open
  • The valves are designed for the 3-wire function (++-), a supply with 12Vdc:
  • As long as the controller is fed, the valve rotates and moves into position, in which it interrupts the power consumption independently.
  • If the power supply is interrupted, the gear motor brings the ball back to its original position
  • The valves are also compatible with the 2-wire controllers:
  • where the opening/closing movement by reversing the supply polarity is achieved with a double diverter
Ball material
Stainless steel 316
Power consumption
3 A
Voltage
12 V
Response time
2.8 s
CHeight from top to center
171 mm
FThread
1 1/4 F Inch
BHeight from bottom to center
42 mm
DLength fitting to centre line
58 mm
LLength nipple
25 mm
ALength pass through
105 mm
Max. working pressure
12 BAR
DNNominal diameter
32 mm
XWidth pass through
33 mm
YWidth suction fitting
38 mm
