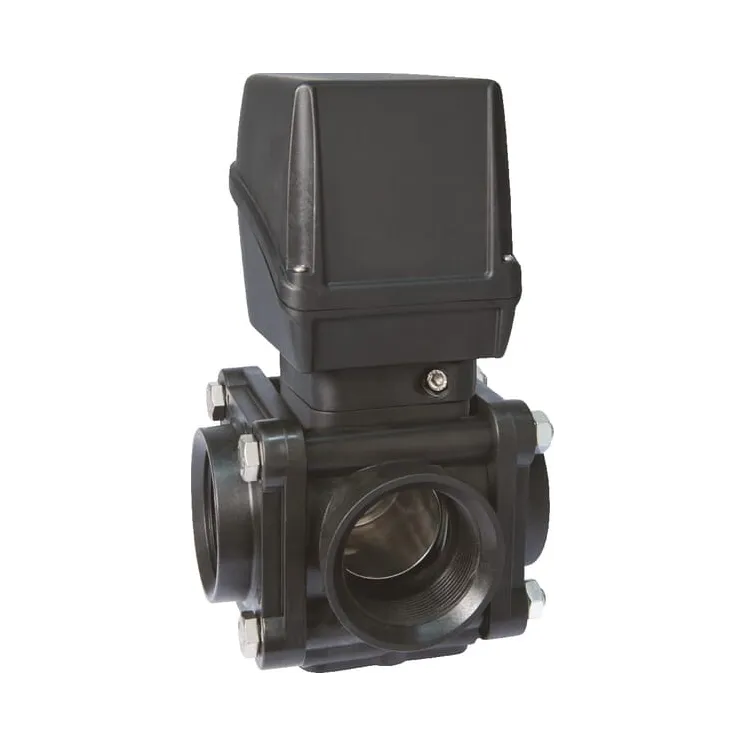

Elec. 3-way ball valve 1 1/2 853K15A66

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€494.16
Tax included
4-5 Working days
Elec. 3-way ball valve 1 1/2 853K15A66 Arag 453715A66 453715A66T 853715A66
IN WAREHOUSE

18891

  • Brand
    Arag
  • Reference
    853K15A66
  • In stock
    2 Items
  • Condition
    New
  • CODE
    453715A66 453715A66T 853715A66
  • EAN
    8026834398047
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
853K15A66
EAN8026834398047
Unit
Each
Properties
  • Ball positioning seats made from Teflon
  • Internal O-rings made from viton
  • Clamping devices for flange mounting made from stainless steel, protected by the valve housing
Technical info
  • The abbreviation "A" in the item number means: female thread on both sides; "E" means male thread on both sides
  • NO: normally open
  • The valves are designed for the 3-wire function (++-), a supply with 12Vdc:
  • As long as the controller is fed, the valve rotates and moves into position, in which it interrupts the power consumption independently.
  • If the power supply is interrupted, the gear motor brings the ball back to its original position
  • The valves are also compatible with the 2-wire controllers:
  • where the opening/closing movement by reversing the supply polarity is achieved with a double diverter
Ball material
Stainless steel 316
Voltage
12V/ 3 A V
Response time
2.3 s
CHeight from top to center
178 mm
FThread
1 1/2" F Inch
BHeight from bottom to center
52 mm
DLength fitting to centre line
63 mm
LLength nipple
25 mm
ALength pass through
128 mm
Max. working pressure
10 BAR
DNNominal diameter
40 mm
XWidth pass through
40 mm
YWidth suction fitting
49 mm
