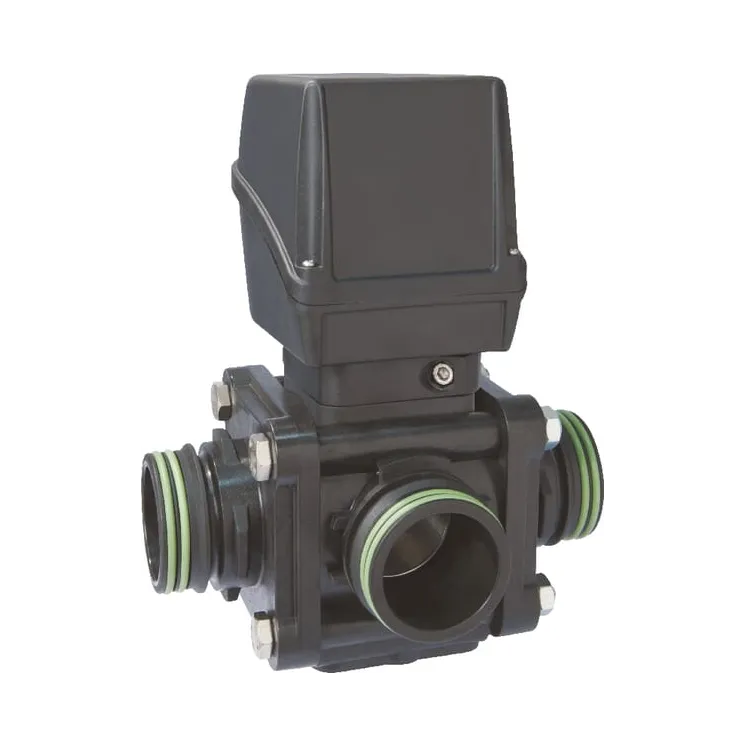

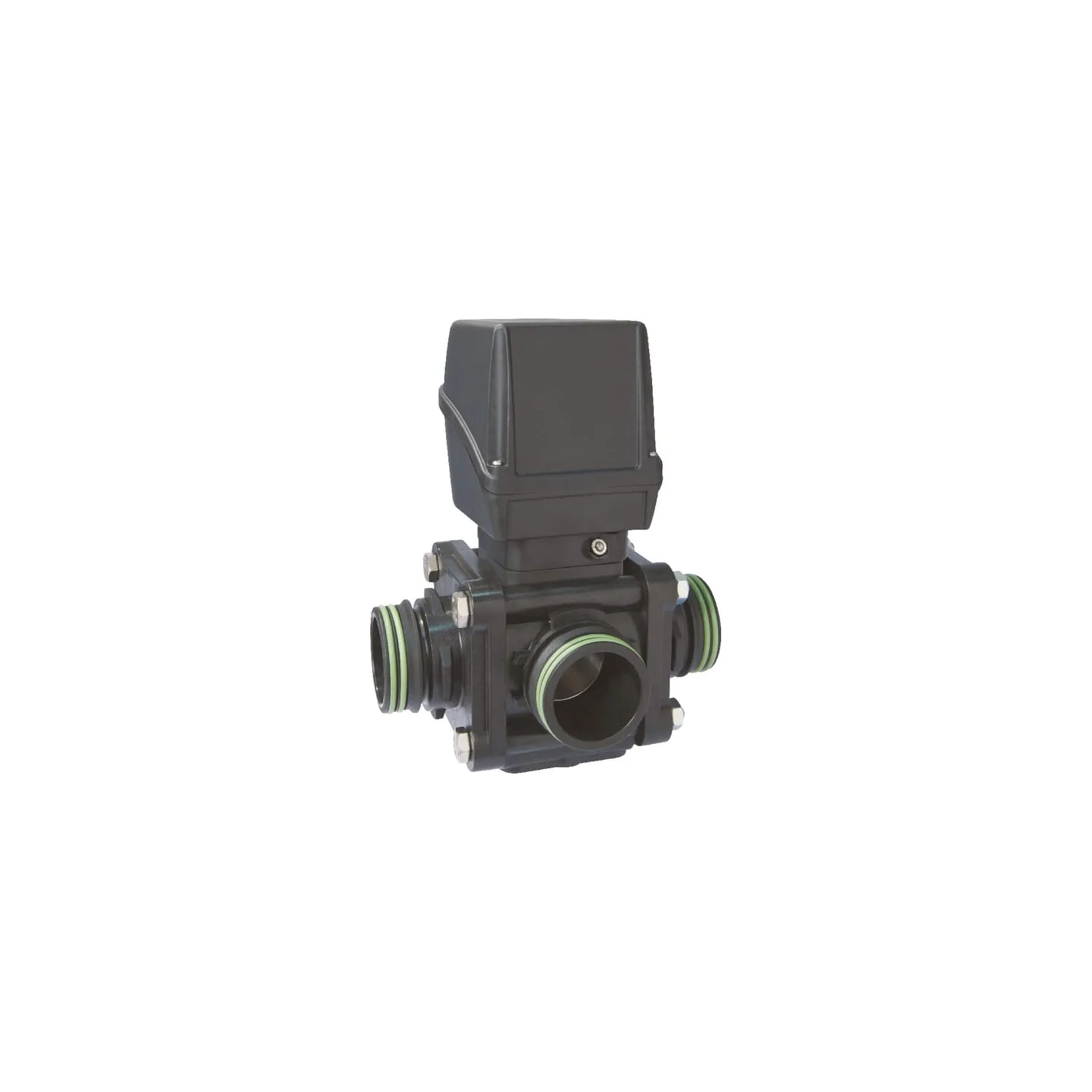

Ball Valve 853K16S77 Arag 853716S77
ON REQUEST

18904

Part number
853K16S77
EAN8026834398108
Unit
Each
Properties
  • Ball positioning seats made from Teflon
  • Internal O-rings made from viton
  • Clamping devices for flange mounting made from stainless steel, protected by the valve housing
Technical info
  • NO: normally open
  • The valves are designed for the 3-wire function (++-), a supply with 12Vdc:
  • As long as the controller is fed, the valve rotates and moves into position, in which it interrupts the power consumption independently.
  • If the power supply is interrupted, the gear motor brings the ball back to its original position
  • The valves are also compatible with the 2-wire controllers:
  • where the opening/closing movement by reversing the supply polarity is achieved with a double diverter
  • Brand
    Arag
  • Reference
    853K16S77
  • Condition
    New
  • CODE
    853716S77
  • EAN
    8026834398108
