| Part number | 20B2GPP005 | |
|---|---|---|
| EAN | 8719493114720 | |
| Unit | Metre | |
| Qty. Rounding | 5 | |
| Properties | Starts and ends with an inner link | |
| Technical info | Chain available in 5-m lengths | |
| pPitch | 31.75 mm | |
| Pitch | 1-1/4 Inch | |
| b1Width inside | 19.56 mm | |
| Width inside | 3/4 Inch | |
| b2Width inner link | 28.56 mm | |
| Width outside | 76.9 mm | |
| d2Pin diameter | 10.19 mm | |
| d1Roller diameter | 19.05 mm | |
| gHeight | 26.4 mm | |
| eSections distance | 36.45 mm | |
| Size code ISO | 20 B-2 | |
| Thickness inner plate | 4.5 mm | |
| Min. breaking load according to standard | 170000 N | |
| Thickness outer plate | 3.5 mm | |
| Min. breaking load | 210900 N | |
| Length | 5 m | |
| Weight | 7.27 kg/m | |
| Material | Steel | |
| DIN standard | 8187 | |
| Type | Duplex | |

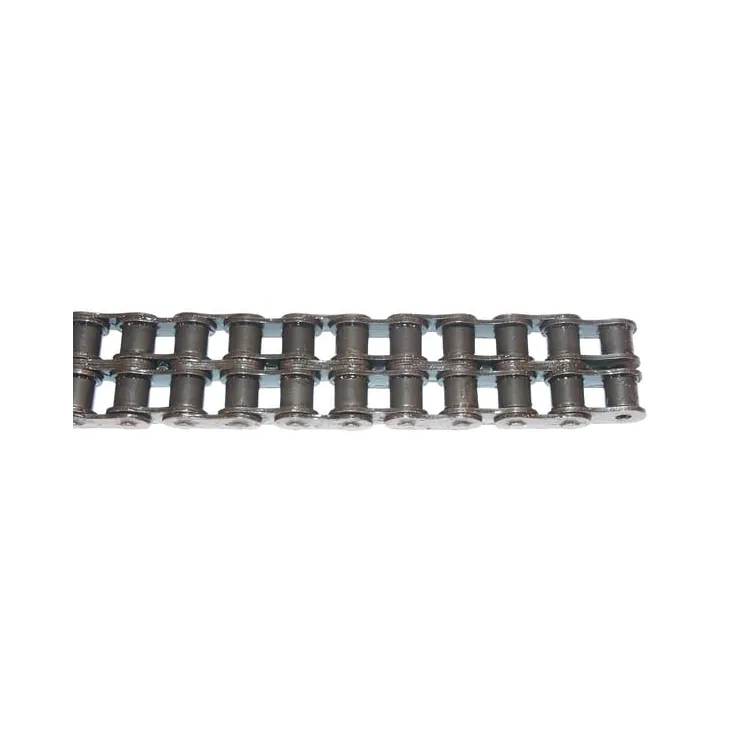

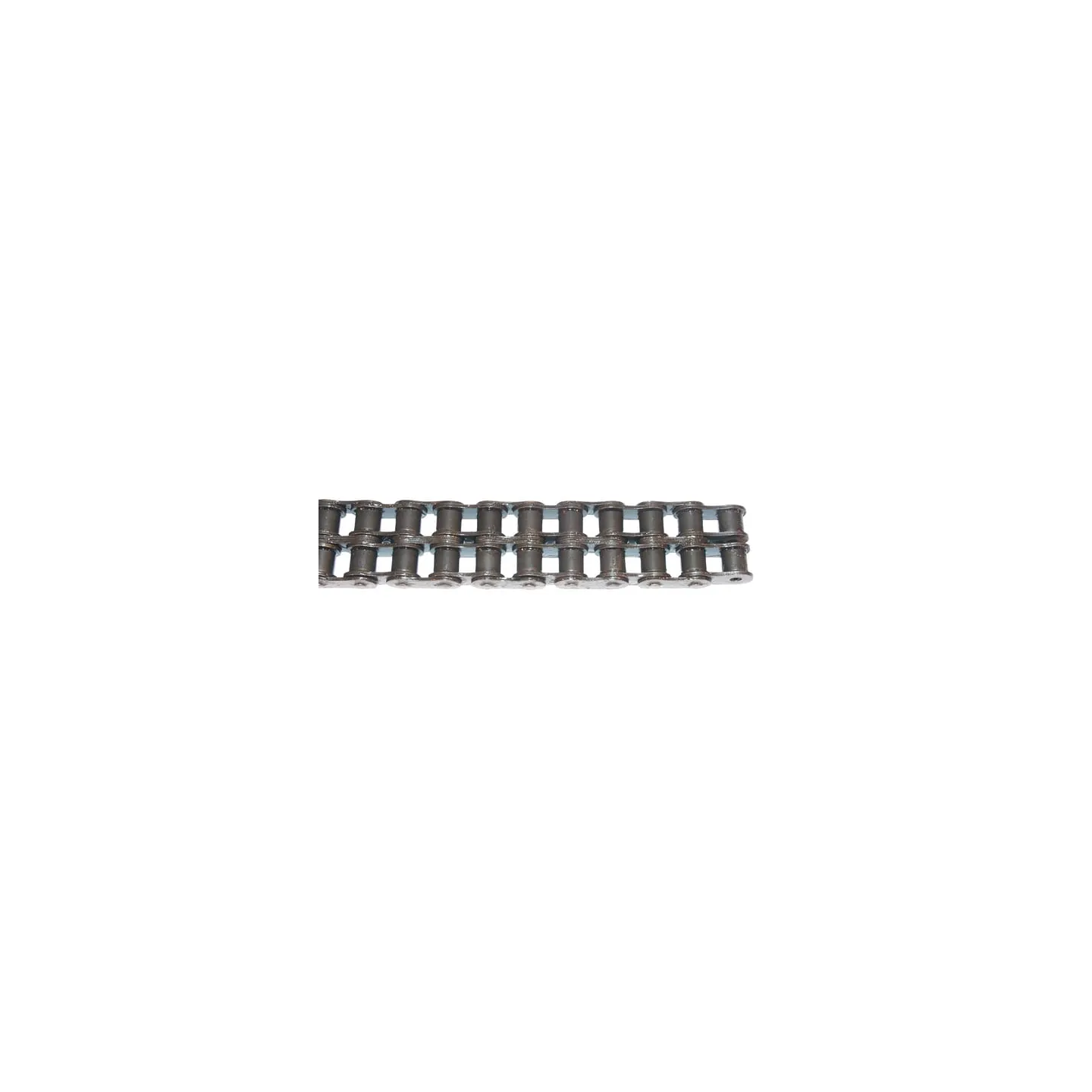

| Product category | Roller chain | |
| Content in sale unit | 5 m |
