Gear motor Gr2 6cc R C18E GM206R3030C18EGP gopart
search
  • Gear motor Gr2 6cc R C18E GM206R3030C18EGP gopart

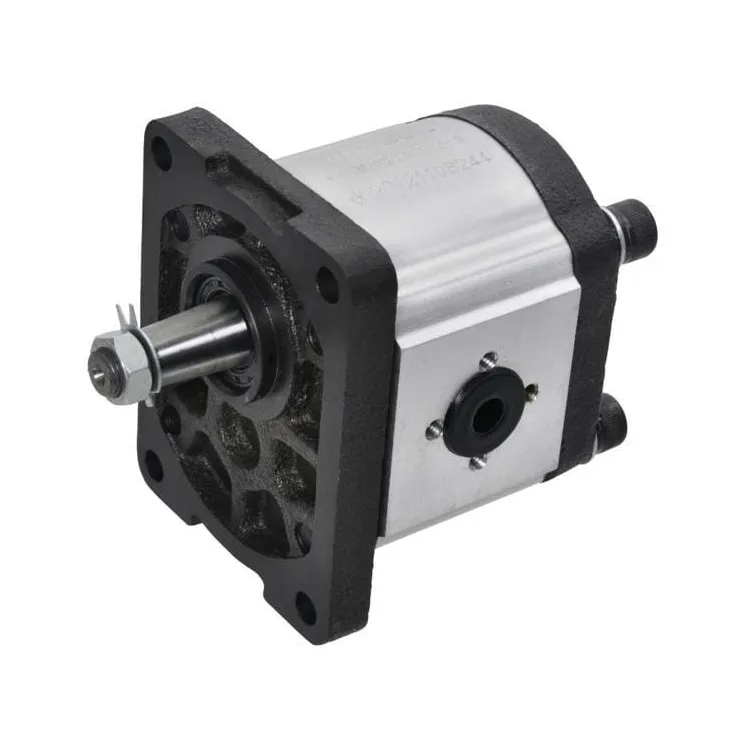

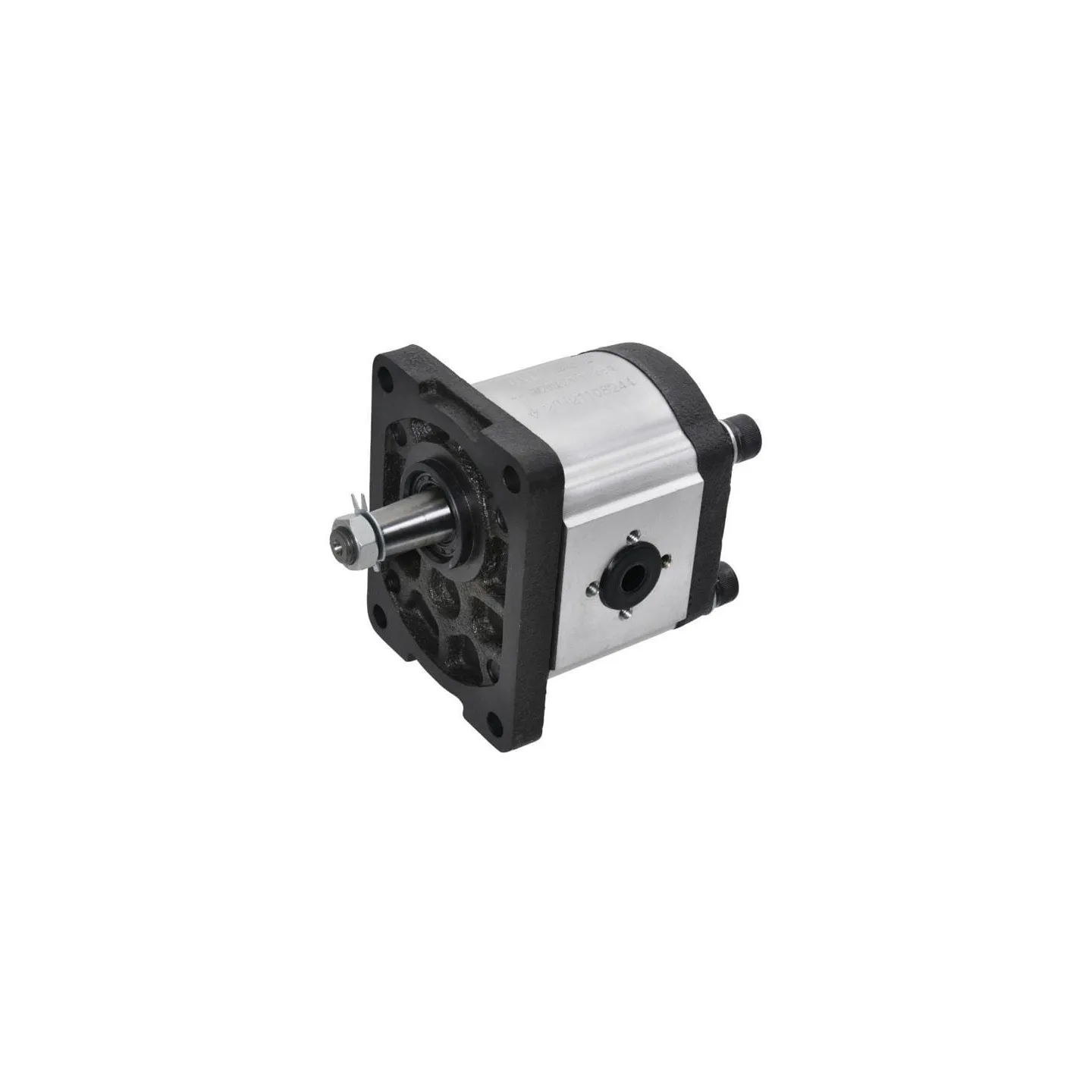

Gear motor Gr2 6cc R C18E GM206R3030C18EGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€152.70
Tax included
4-5 Working days
Gear motor Gr2 6cc R C18E GM206R3030C18EGP gopart
IN WAREHOUSE

30684

Part number
GM206R3030C18EGP
EAN8716106140060
Unit
Each
Technical info
  • Gear motors from gopart can be used in many areas, especially for mobile and industrial applications.
  • Maximum pressure on the leakage oil line: 5 bar
  • The gear motors have two directions of rotation and must have an external leakage oil connection.
ECenter to center pressure side
30 mm
DCenter to center suction side
30 mm
Connection
European 4-hole flange
ALength body
99 mm
BLength flange to center bore
45 mm
Material
Pump housing: Aluminium- Flange and back cover: Steel
Rotation max.
3500 r/min
Rotational speed min.
500 r/min
P1 (bar)
200 BAR
Pressure flange
1G08
Shaft type
Tapered shaft 1 : 8
Stroke volume
6 cm³/rev
Suction flange
1G08
  • Brand
  • Reference
    GM206R3030C18EGP
  • In stock
    4 Items
  • Condition
    New
  • EAN
    8716106140060
