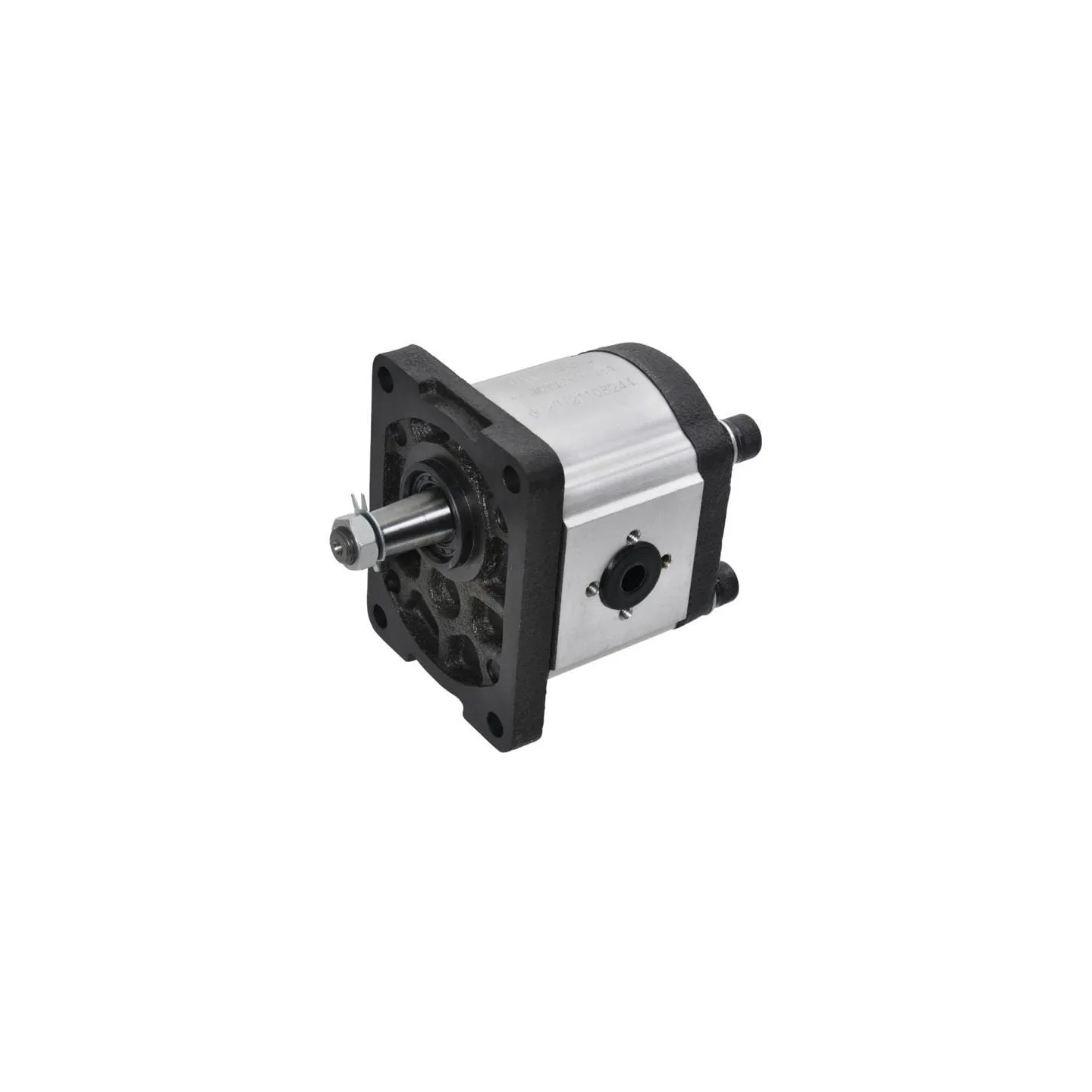

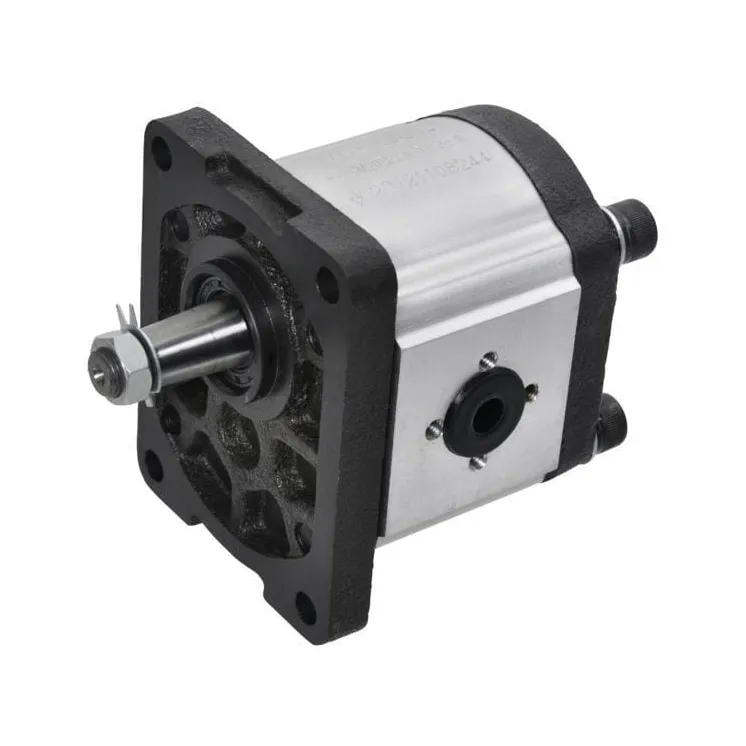

Gear motor Gr2 20cc R C18E GM2020R4040C18EGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€220.06
Tax included
4-5 Working days
Gear motor Gr2 20cc R C18E GM2020R4040C18EGP gopart
IN WAREHOUSE

30696

Part number
GM2020R4040C18EGP
EAN8716106140015
Unit
Each
Technical info
  • Gear motors from gopart can be used in many areas, especially for mobile and industrial applications.
  • Maximum pressure on the leakage oil line: 5 bar
  • The gear motors have two directions of rotation and must have an external leakage oil connection.
ECenter to center pressure side
40 mm
DCenter to center suction side
40 mm
Connection
European 4-hole flange
ALength body
121 mm
BLength flange to center bore
56 mm
Material
Pump housing: Aluminium- Flange and back cover: Steel
Rotation max.
3500 r/min
Rotational speed min.
500 r/min
P1 (bar)
200 BAR
Pressure flange
2G08
Shaft type
Tapered shaft 1 : 8
Stroke volume
20 cm³/rev
Suction flange
2G08
  • Brand
  • Reference
    GM2020R4040C18EGP
  • In stock
    5 Items
  • Condition
    New
  • EAN
    8716106140015
