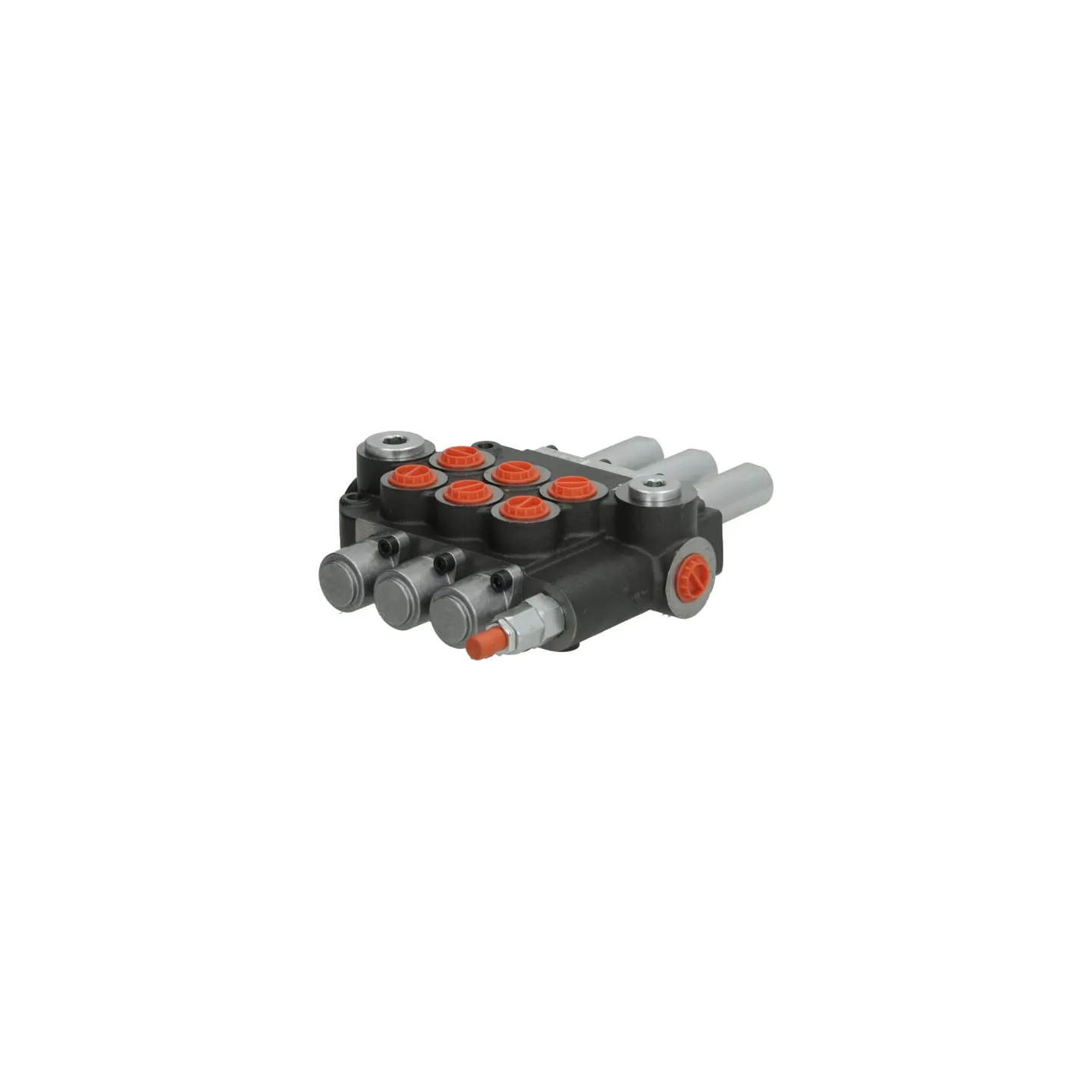

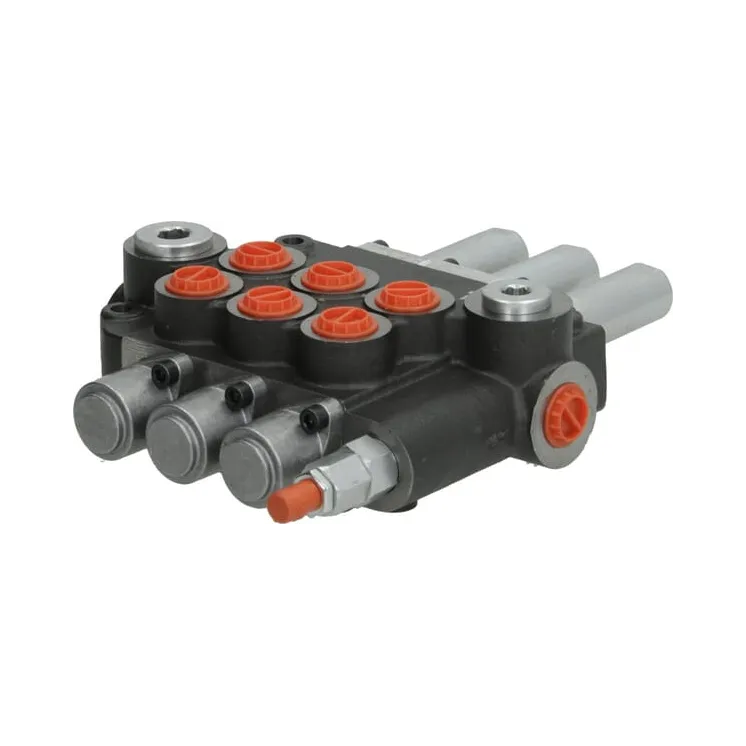

Control valve MBV11-A1V-A1V-A1V MBV113011GP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€202.47
Tax included
4-5 Working days
Control valve MBV11-A1V-A1V-A1V MBV113011GP gopart
IN WAREHOUSE

31087

Part number
MBV113011GP
EAN8719607125673
Unit
Each
Application range
  • Hydraulic applications with large oil quantities
  • Wood splitters
  • Tipping trailers
  • Vehicle construction
Properties
  • Robust monoblock construction
  • Main pressure relief valve and check valve in P-channel
  • Suitable for open systems (can be converted for closed systems)
  • Can be customised for many application areas
Technical info
Working pressure setting at 180 bar
Number of sections
4
Max. flow rate
80 l/min
Consists of
  • Control valve
  • Control lever
Max working pressure
300 BAR
Outlet port option
Open circuit
Sealing material
Nitrile rubber [NBR]
Mounting holes distance
141 mm
Adjustment type
Socket screw
Workport A - Thread diamter
1/2 Inch
Workport A - Thread type
BSP
Workport B - Thread diamter
1/2 Inch
Workport B - Thread type
BSP
Total height
67 mm
Total width
198 mm
Handle length
80 mm
Max. leakage
6 cm³/min
Extra info
3x Double Acting, Spring Return and ready for cable operation
