| Part number | MBV53011GP | |
|---|---|---|
| EAN | 8719607125703 | |
| Unit | Each | |

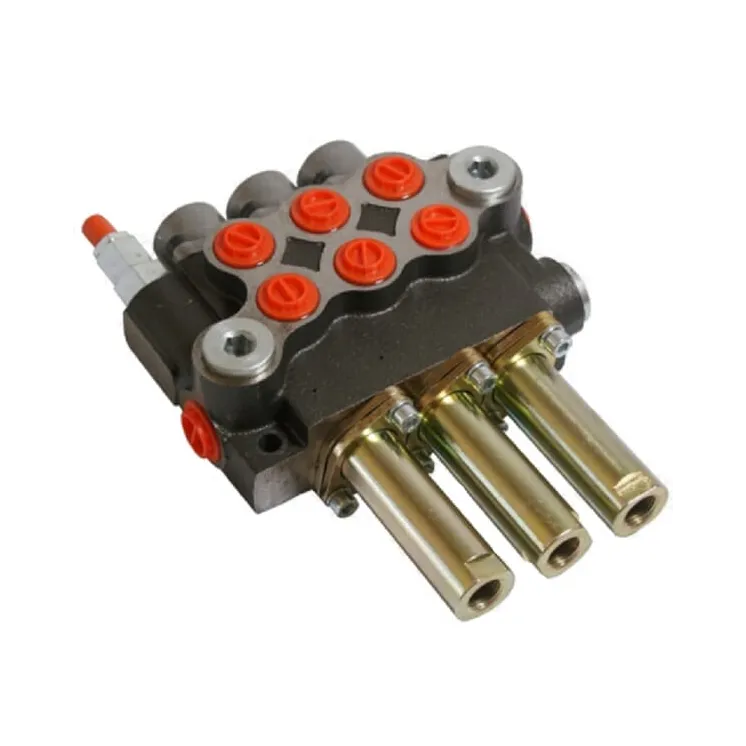

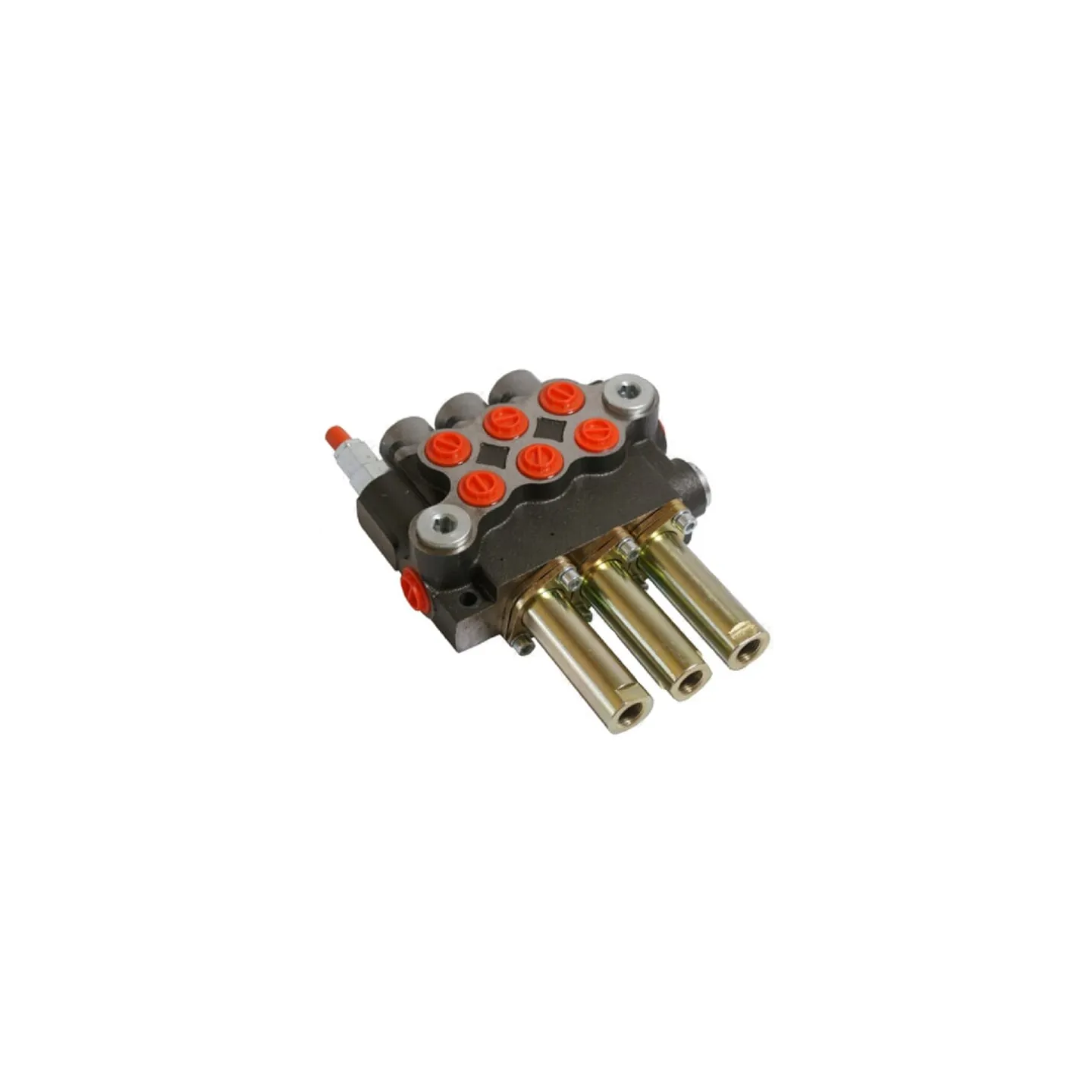

| Long description | gopart's manual monoblock valves are designed for hydraulic applications with medium oil flow rates and pressures, especially in sectors such as agriculture, viticulture and municipal services. They are often used as control valves for cylinders and engines on trailers, log splitters and similar applications. Show more | |
| Pros |
| |
| Product details |
| |
| Includes |
| |
| Number of sections | 5 | |
| Max. flow rate | 50 l/min | |
| Max working pressure | 300 BAR | |
| Outlet port option | Open circuit | |
| Sealing material | Nitrile rubber [NBR] | |
| Mounting holes distance | 132 mm | |
| Adjustment type | Socket screw | |
| Workport A - Thread type | BSP | |
| Workport B - Thread diamter | 3/8 Inch | |
| Workport B - Thread type | BSP | |
| Total height | 60 mm | |
| Total width | 164 mm | |
| Handle length | 80 mm | |
| Max. leakage | 5 cm³/min | |
| Extra info | 3x Double Acting, Spring Return and ready for cable operation |
