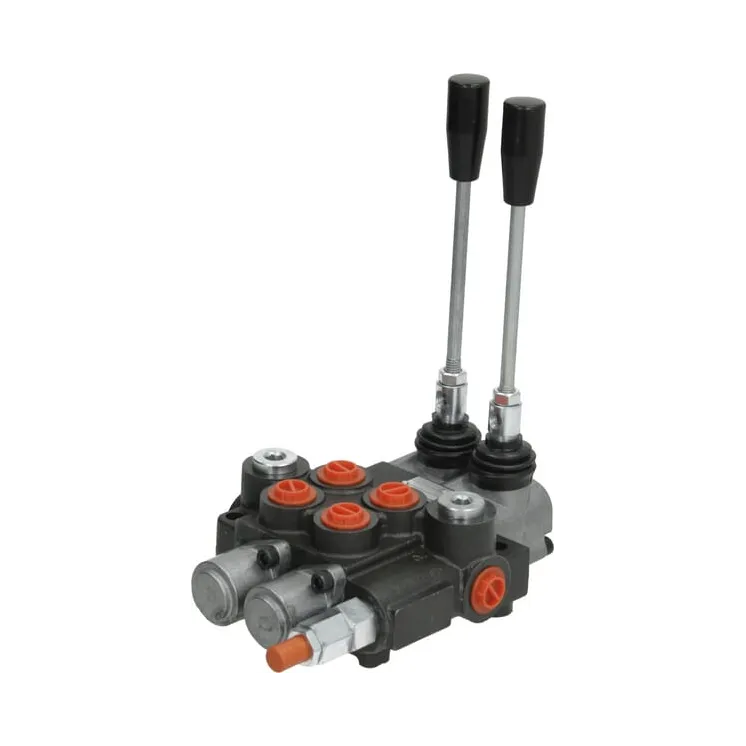

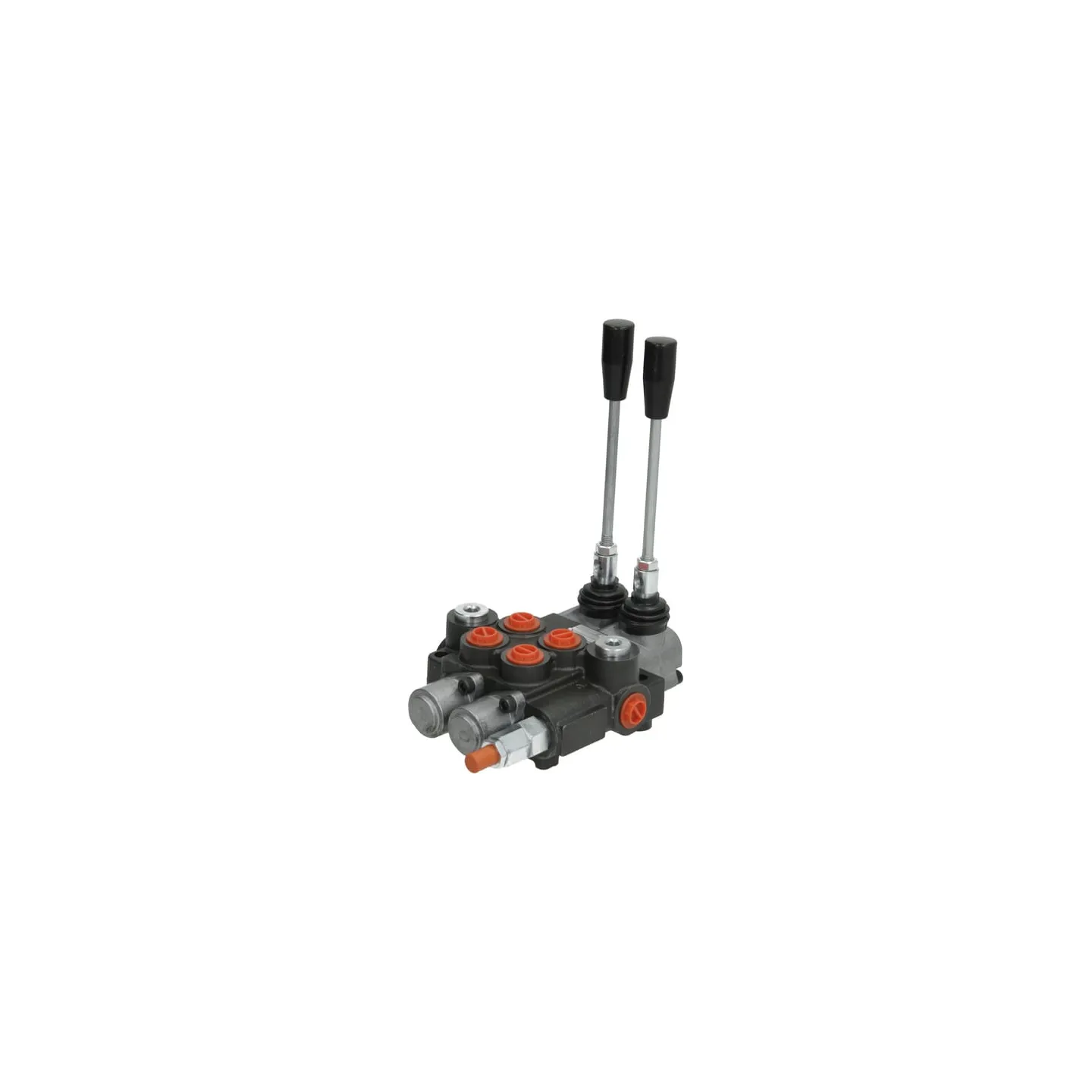

Control valve MBV5 A1A1(G3/8)KZ1 MBV52001GP

Name: Control valve MBV5 A1A1(G3/8)KZ1 MBV52001GP
Brand: GoPart
SKU: MBV52001GP
Price: 83.01 EUR
Availability: InStock

Payment options

€83.01

Tax included

4-5 Working days

Control valve MBV5 A1A1(G3/8)KZ1 MBV52001GP gopart VFG1003

IN WAREHOUSE

ID: 31106

Description

Part number	MBV52001GP
EAN	8716106307401
Unit	Each
Long description	gopart's manual monoblock valves are designed for hydraulic applications with medium oil flow rates and pressures, especially in sectors such as agriculture, viticulture and municipal services. They are often used as control valves for cylinders and engines on trailers, log splitters and similar applications. Show more
Pros	Robust monoblock construction Various options and possible conversions
Product details	Main pressure relief valve and check valve in P-channel Maximum operating pressure : 300 bar Safety adjusted to 180 bar Flow up to 40L/min. Maximum return pressure : 25 bar Internal leakage A-B-T : max 5cmÂ³ at 100 bar, 46 cSt
Includes	Control valve Control levers
Number of sections	2
Plunger type code	A1
Max. flow rate	50 l/min
Max working pressure	300 BAR
Outlet port option	Open circuit
Sealing material	Nitrile rubber [NBR]
Mounting holes distance	97 mm
Adjustment type	Socket screw
Workport B - Thread type	BSP
Total height	60 mm
Total width	129 mm
Handle length	80 mm
Max. leakage	5 cmÂ³/min
Extra info	2x double acting, spring return
