| Part number | MBV51011GP | |
|---|---|---|
| EAN | 8716106307418 | |
| Unit | Each | |

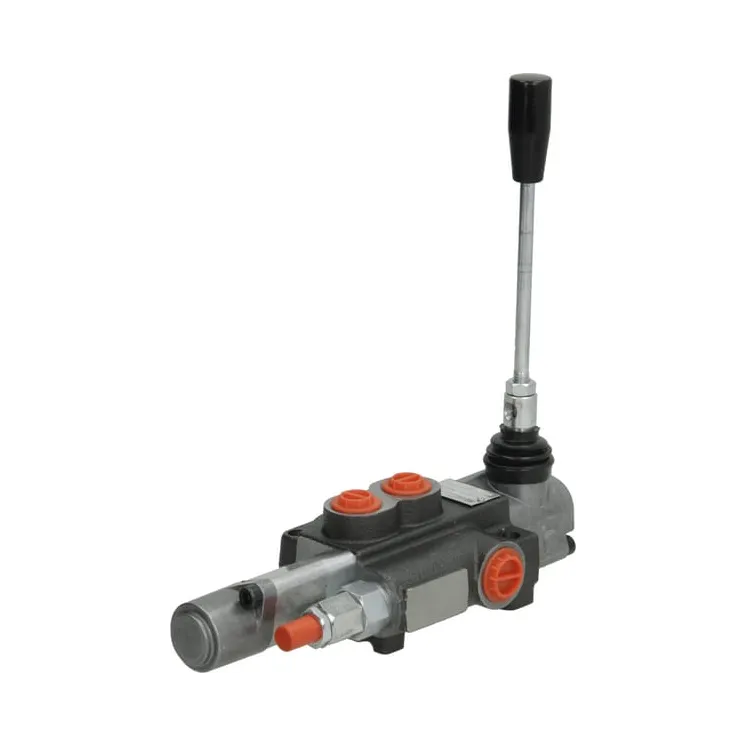

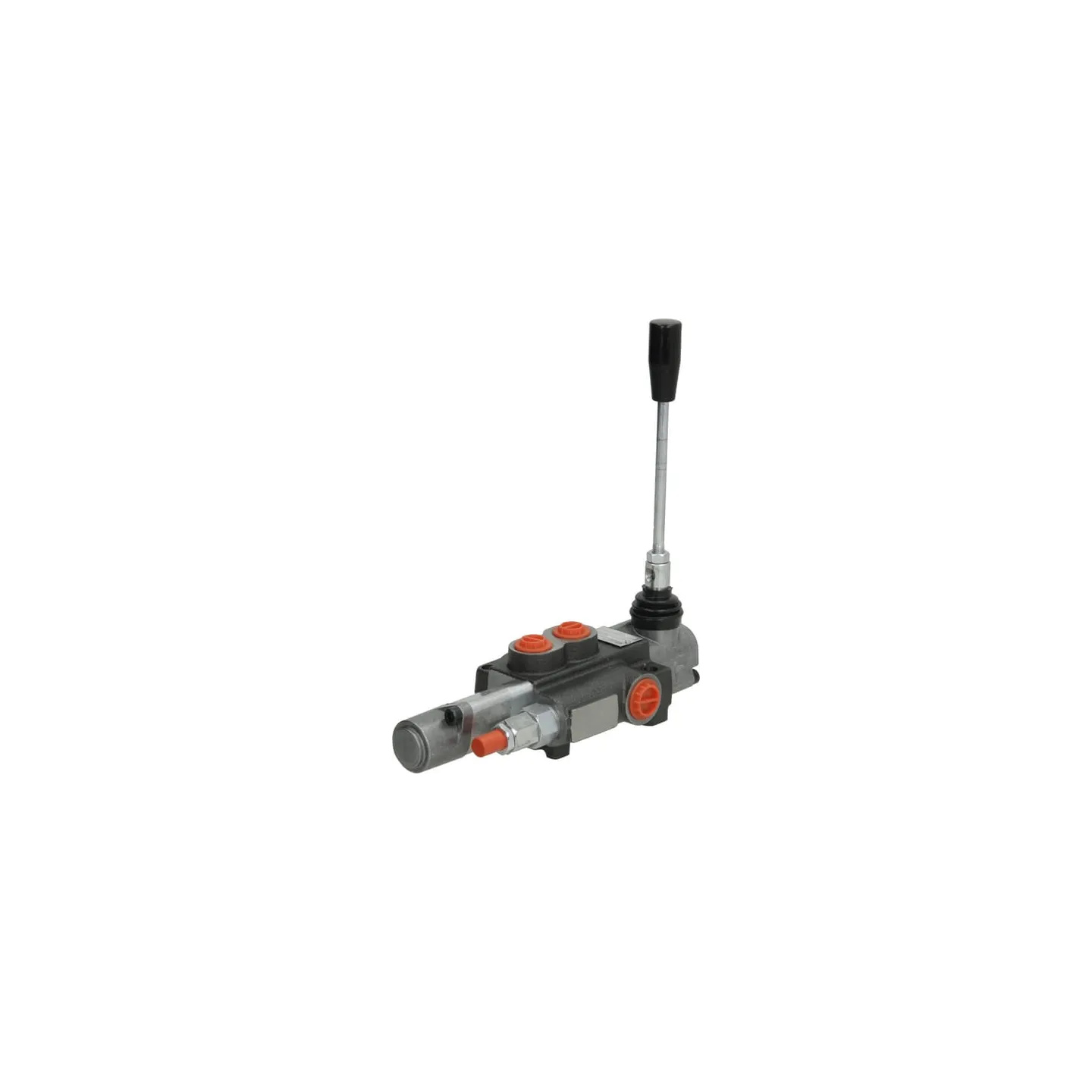

| Long description | gopart's manual monoblock valves are designed for hydraulic applications with medium oil flow rates and pressures, especially in sectors such as agriculture, viticulture and municipal services. They are often used as control valves for cylinders and engines on trailers, log splitters and similar applications. Show more | |
| Pros |
| |
| Product details |
| |
| Includes |
| |
| Number of sections | 5 | |
| Plunger type code | K16 | |
| Spool positioning | 16 | |
| Max. flow rate | 40 l/min | |
| Max working pressure | 300 BAR | |
| Outlet port option | Open circuit | |
| Sealing material | Nitrile rubber [NBR] | |
| Mounting holes distance | 60 mm | |
| Adjustment type | Socket screw | |
| Workport A - Thread diamter | 1/2 Inch | |
| Workport A - Thread type | BSP | |
| Workport B - Thread type | BSP | |
| Total height | 60 mm | |
| Total width | 85 mm | |
| Handle length | 80 mm | |
| Max. leakage | 5 cm³/min | |
| Extra info | Double acting, float position in 4th position |
