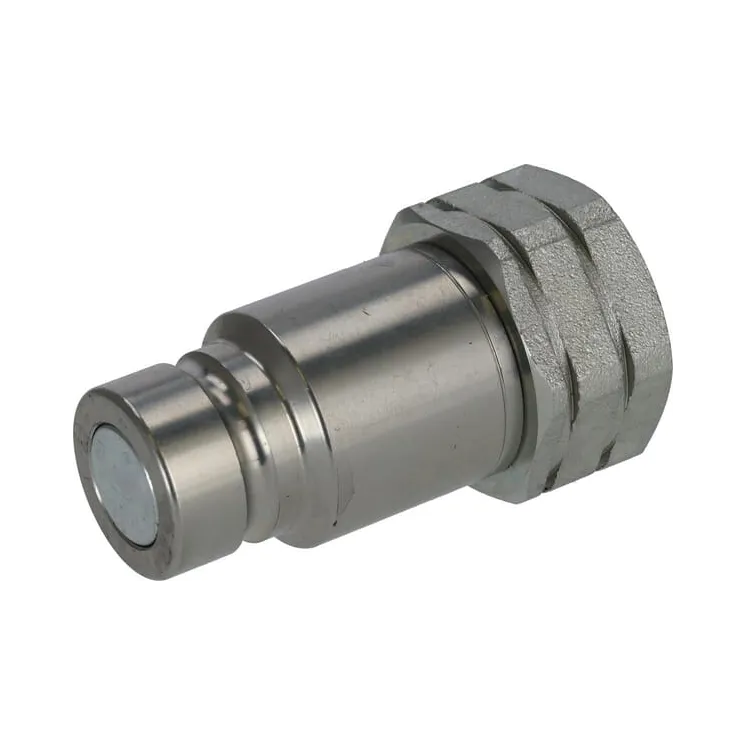

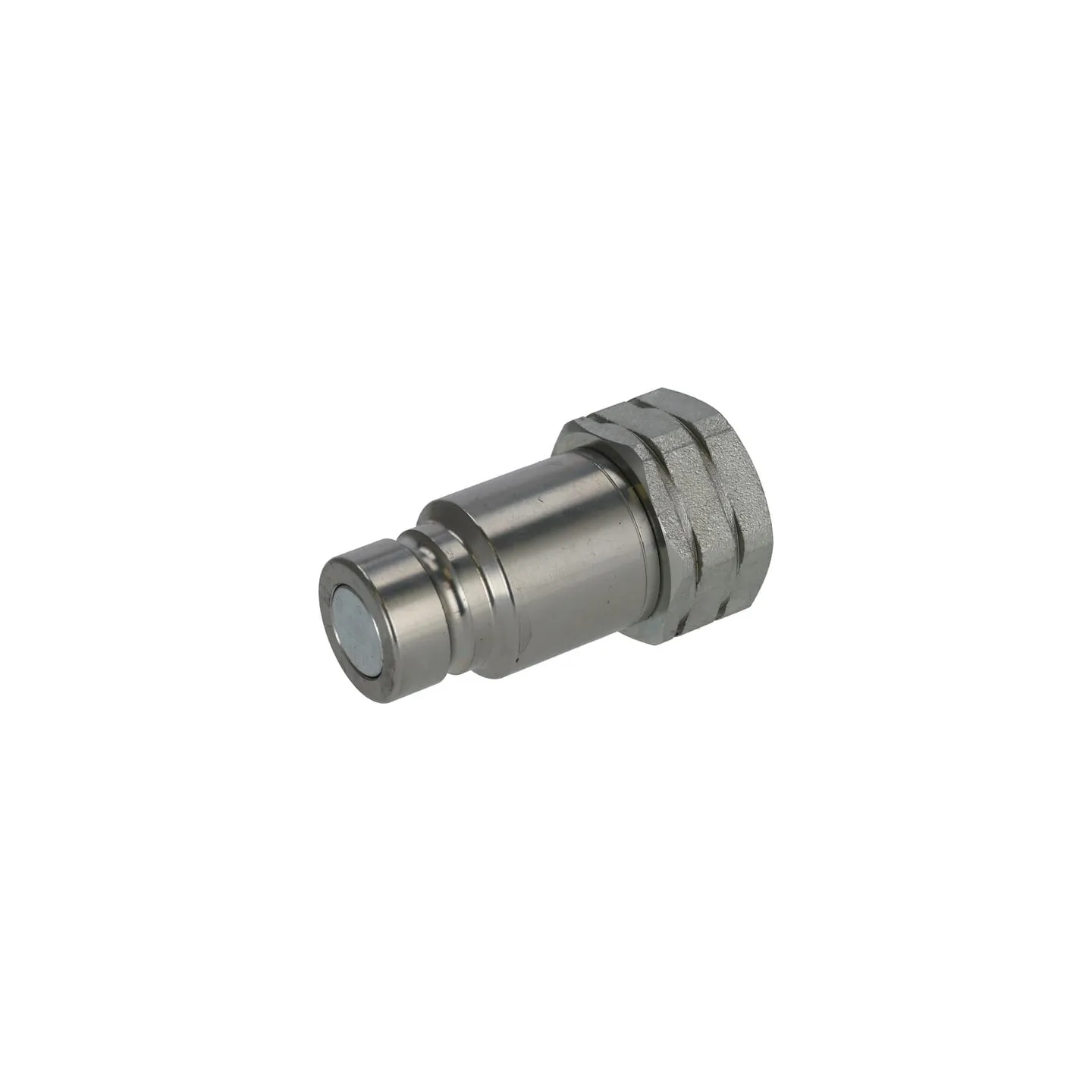

Quick release coupling Male 1/2 - 1/2 BSP SKVM12C08N

Name: Quick release coupling Male 1/2 - 1/2 BSP SKVM12C08N
Brand: GoPart
SKU: SKVM12C08N
Price: 15 EUR
Availability: InStock

Payment options

€15.00

Tax included

4-5 Working days

Quick release coupling Male 1/2 - 1/2 BSP SKVM12C08N gopart

IN WAREHOUSE

ID: 31457

Description

Part number	SKVM12C08N
EAN	8719493095111
Unit	Each
Details	One-handed coupling With special flat valve
Application range	Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids
Properties	Locks on both sides
Benefits	User-friendly Low leakage No air pockets during coupling
Shape	Straight - 2 connection sides
Connection no 1 type	Quick coupling
Connection no 1 type - male/female	Male
Ã˜D1Connection no 1 diameter	15 mm
L2Connection no 1 length	48 mm
Size code	BG 3
Body size	1/2 Inch
Connection 2, type	Thread
Connection 2, type - male/female	Female
Connection 2, thread diameter	1/2 Inch
Connection 2, threads per inch	14
Connection 2, thread type	BSP
Connectable under pressure	No
Ã˜DOutside diameter	36 mm
L1Total length	68 mm
Material	Steel
Max working temperature	100 Â°C
Min. working temperature	-20 Â°C
Seal material	Nitrile rubber [NBR] Teflon (PTFE)
