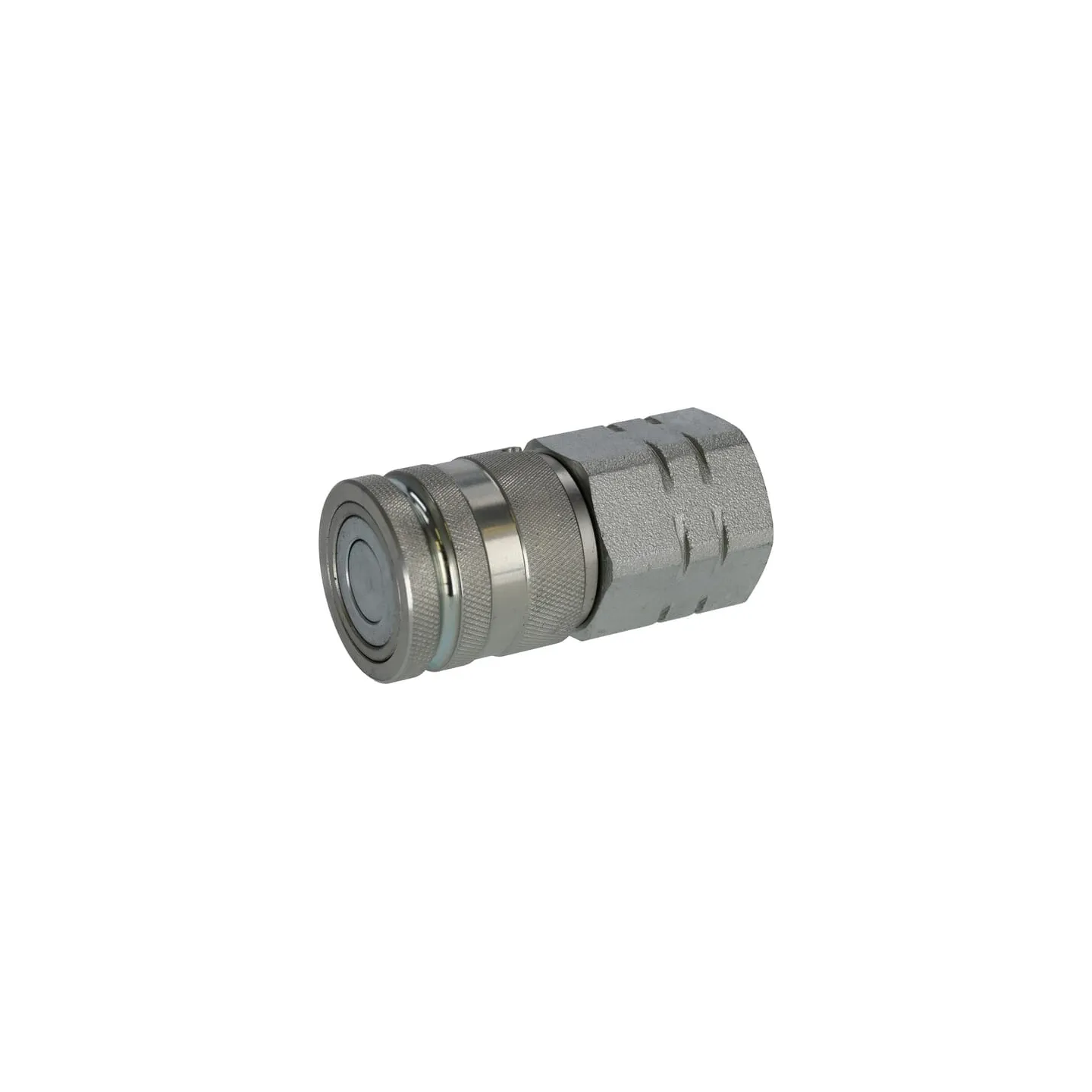

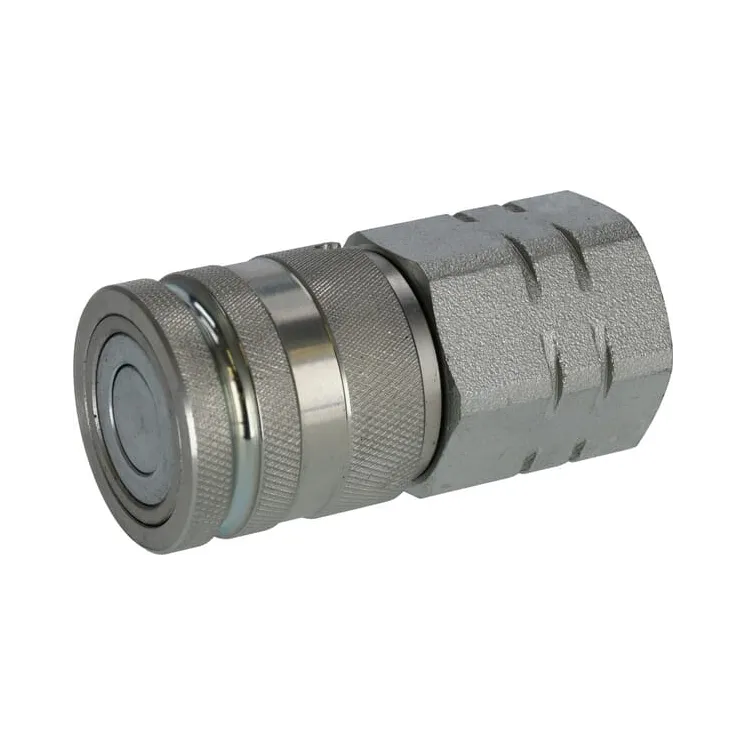

Quick release coupling Female 1/2 - 1/2 BSP SKVF12C08N

Name: Quick release coupling Female 1/2 - 1/2 BSP SKVF12C08N
Brand: GoPart
SKU: SKVF12C08N
Price: 25.86 EUR
Availability: InStock

Payment options

€25.86

Tax included

4-5 Working days

Quick release coupling Female 1/2 - 1/2 BSP SKVF12C08N gopart

IN WAREHOUSE

ID: 31460

Description

Part number	SKVF12C08N
EAN	8719493095142
Unit	Each
Details	One-handed coupling With special flat valve Protected against accidental decoupling
Application range	Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids
Properties	Locks on both sides
Benefits	User-friendly Low leakage No air pockets during coupling
Shape	Straight - 2 connection sides
Connection no 1 type	Quick coupling
Connection no 1 type - male/female	Female
Size code	BG 3
Body size	1/2 Inch
Connection 2, type	Thread
Connection 2, type - male/female	Female
Connection 2, thread diameter	1/2 Inch
Connection 2, threads per inch	14
Connection 2, thread type	BSP
Connectable under pressure	No
Outside diameter	38 mm
Total length	77.5 mm
Material	Steel
Working pressure	350 BAR
Max working temperature	100 Â°C
Min. working temperature	-20 Â°C
Seal material	Nitrile rubber [NBR] Teflon (PTFE)
