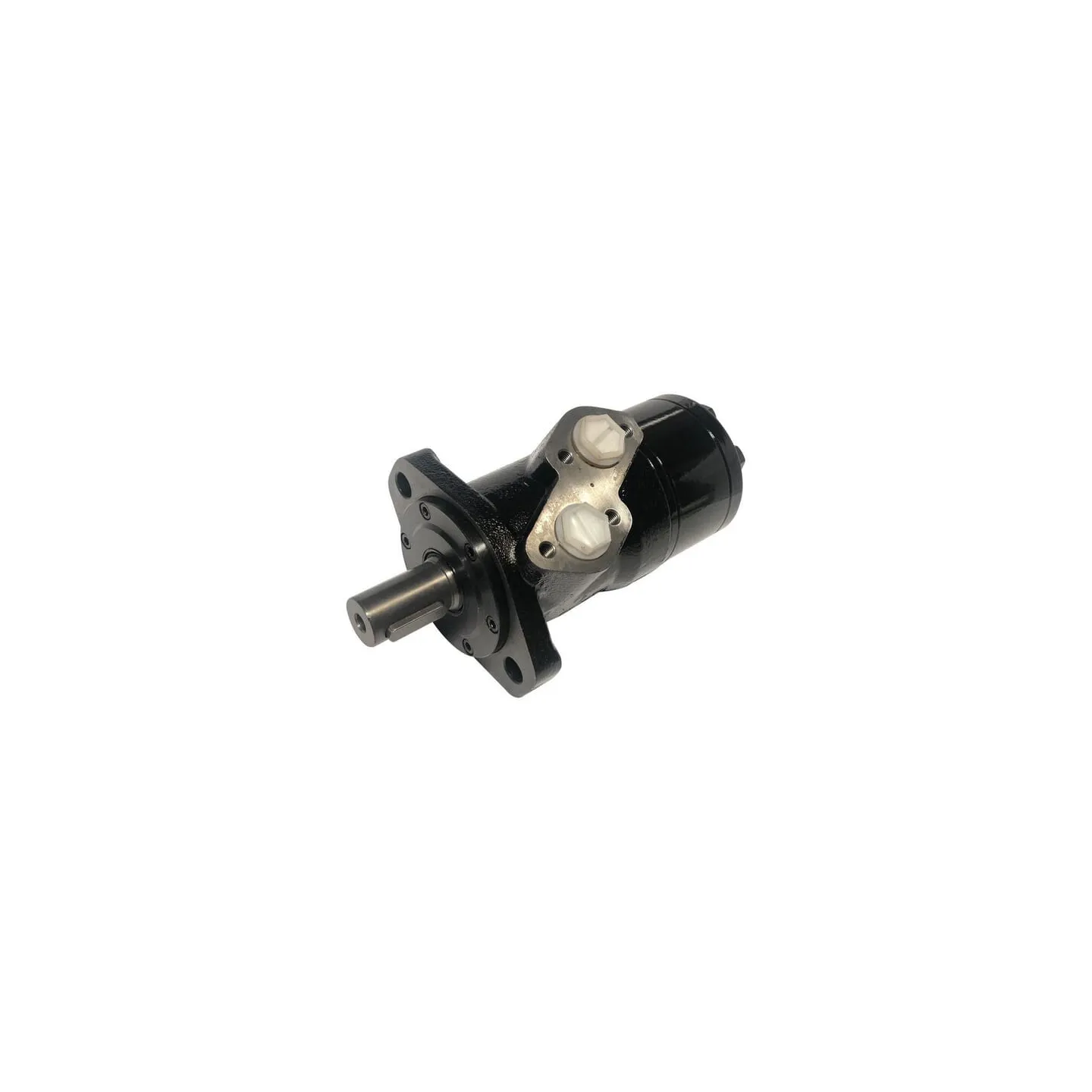

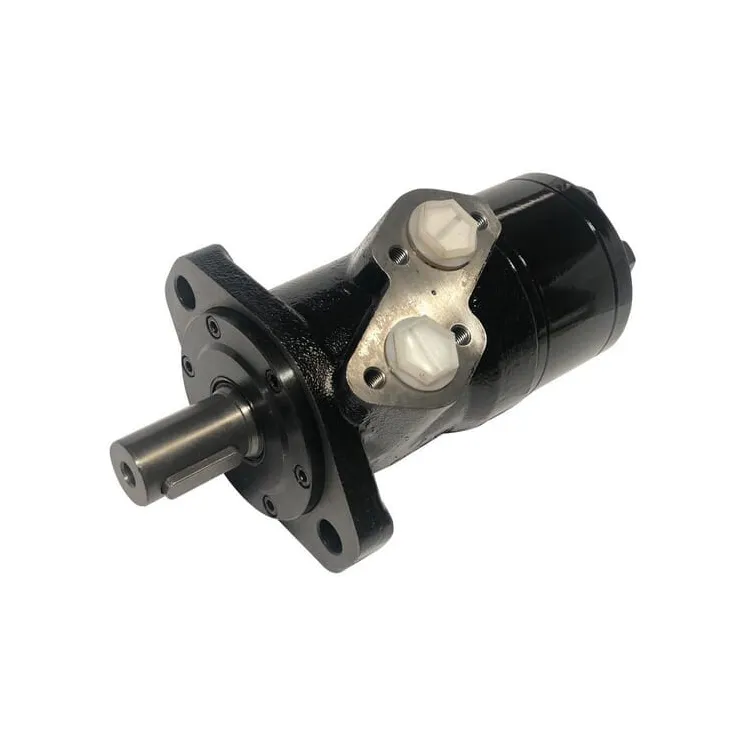

Orbit motor 100cc, SMP100A225YGP

Name: Orbit motor 100cc, SMP100A225YGP
Brand: GoPart
SKU: SMP100A225YGP
Price: 111.3 EUR
Availability: BackOrder

Payment options

€111.30

Tax included

On Request

Orbit motor 100cc, SMP100A225YGP gopart B480SMP1002ADSP BMP1002AD GFS100C2A2 SMP1002AD SMP1002ADGP VMP10011118246 VMP10011174242 WP155100A6312

ON REQUEST

ID: 31477

Description

Part number	SMP100A225YGP
EAN	8719607280303
Unit	Each
Long description	Orbital motor type SMP / gopart
Details	High axial, radial axle load and a high torque
Application range	Can be used wherever a high torque and low speeds are required Can be used briefly in high pressure conditions
Properties	With leakage oil drain Rotor construction Wide shaft slip bearing Can be connected to several motors in a row Suitable for use in closed systems From the medium-sized orbit motors series Robust and compact construction
Benefits	Good price/performance ratio
Flange shape	Oval
Number of mounting holes	2
Shaft type	Cylindrical
Shaft diameter	25 mm
Displacement	100 cmÂ³/rev
Max continuous torque	149 NÂ·m
Max. continous working pressure	125 BAR
Max intermittend working pressure	165 BAR
Max pressure peak	200 BAR
Max. flow rate	60 l/min
Max rotation speed	610 r/min
Min rotation speed	10 r/min
Main port thread diameter	1/2 Inch
Main port thread type	BSP
Drain port thread diameter	1/4 Inch
Drain port thread type	BSP
Port position	Side
L1Rotor length	13 mm
Max. power	10.5 kW
