Orbit motor 400cc, SMS400A432YGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€259.09
Tax included
On Request
Orbit motor 400cc, SMS400A432YGP gopart B480SMS400E4BDSP SMS400E432D00 SMS400E432D00GP
ON REQUEST

31483

  • Brand
  • Reference
    SMS400A432YGP
  • Condition
    New
  • CODE
    B480SMS400E4BDSP SMS400E432D00 SMS400E432D00GP
  • EAN
    8719493058000
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
SMS400A432YGP
EAN8719493058000
Unit
Each
Long description

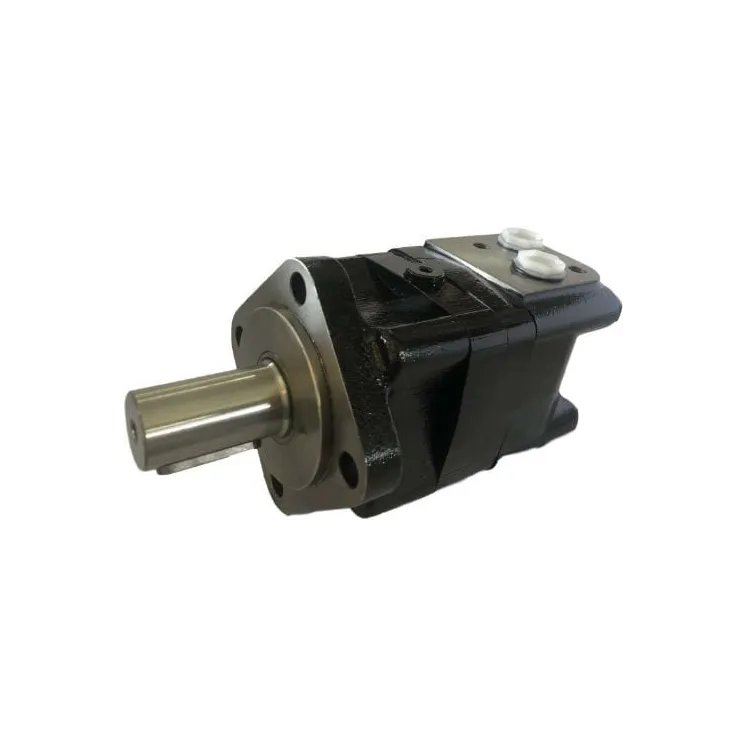

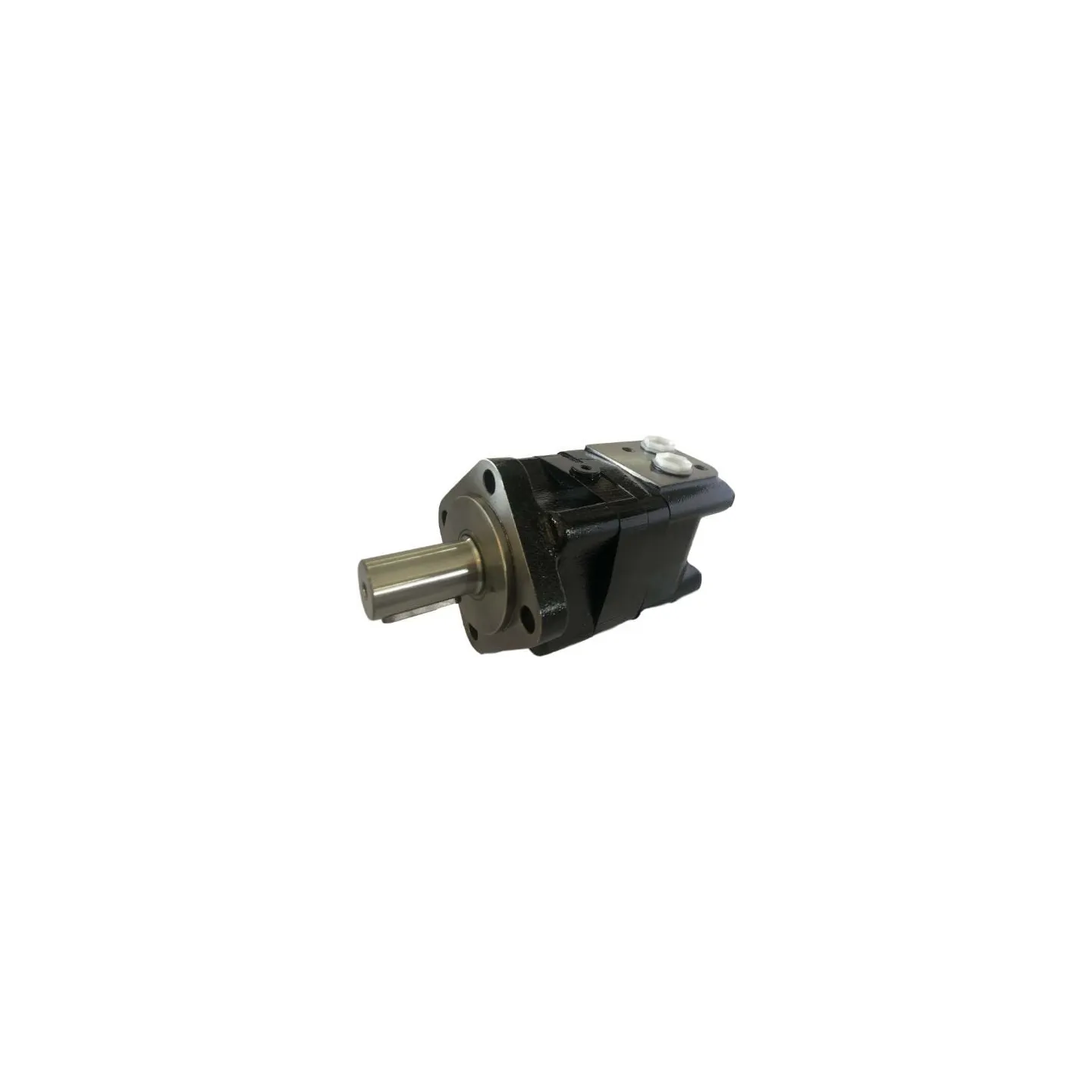

Orbital motor type SMS / gopart
Details
  • High axial, radial axle load and a high torque
  • Runs very quietly at low speeds
Application range
  • Can be used wherever a high torque and low speeds are required
  • Also suitable for continuous reversal of rotation
  • Can be used continuously in high pressure conditions
Properties
  • With leakage oil drain
  • Roller construction
  • Tapered roller bearing
  • From the large orbit motors series
  • Robust and compact construction
  • Excellent starting characteristics
Benefits
  • Good price/performance ratio
  • Minimal loss of power
Flange shape
Square
Flange code
SAE-A
Number of mounting holes
4
Shaft type
Straight parallel
Shaft diameter
32 mm
Displacement
400 cm³/rev
Max continuous torque
560 N·m
Max. continous working pressure
100 BAR
Max intermittend working pressure
140 BAR
Max pressure peak
175 BAR
Max. flow rate
75 l/min
Max rotation speed
180 r/min
Min rotation speed
5 r/min
Main port thread diameter
1/2 Inch
Main port thread type
G
Drain port thread diameter
1/4 Inch
Drain port thread type
G
Port position
Side
L1Rotor length
67 mm
Max. power
6 kW
L2Main port center to front flange distance
180 mm
LHousing length
223 mm
