Orbit motor 250cc, SMH250A432YGP gopart SMH2504BDGP
search
  • Orbit motor 250cc, SMH250A432YGP gopart SMH2504BDGP

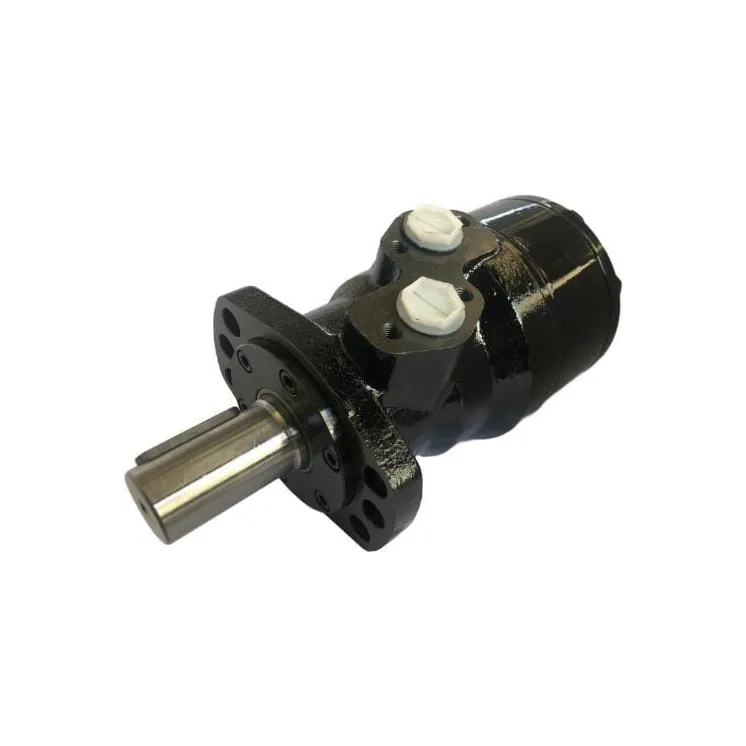

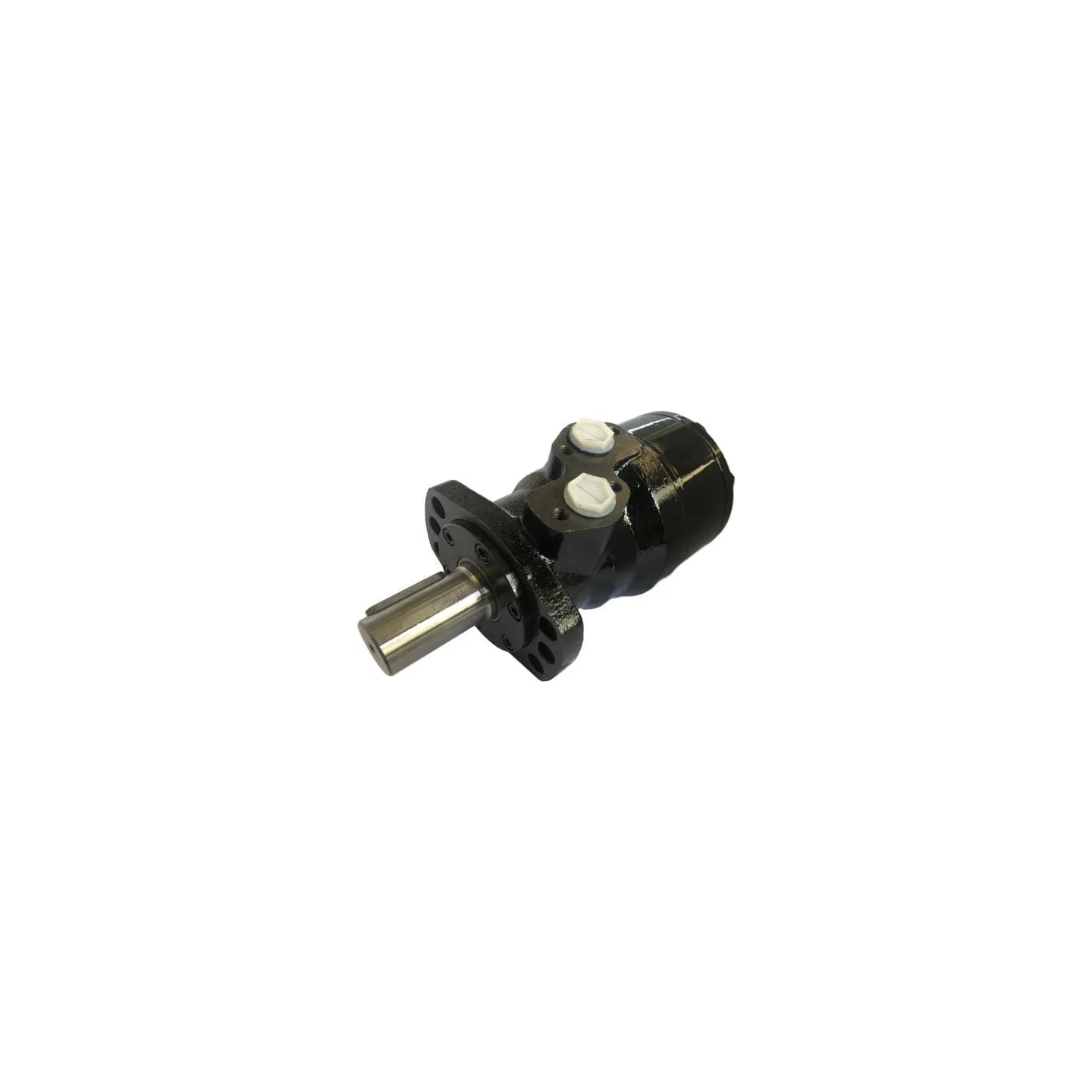

Orbit motor 250cc, SMH250A432YGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€152.34
Tax included
4-5 Working days
Orbit motor 250cc, SMH250A432YGP gopart SMH2504BDGP
IN WAREHOUSE

31487

Part number
SMH250A432YGP
EAN8719493052770
Unit
Each
Long description
Orbital motor type SMH / gopart
Details
  • High axial, radial axle load and a high torque
  • Low wear
Application range
  • Can be used wherever a high torque and low speeds are required
  • Also suitable for continuous reversal of rotation
  • Can be used continuously in high pressure conditions
Properties
  • Roller construction
  • Wide shaft slip bearing
  • From the medium-sized orbit motors series
  • With leakage oil drain
  • Compact and extremely robust construction
Benefits
  • Good price/performance ratio
  • Long service life
Number of mounting holes
6
Shaft type
Straight parallel
Shaft diameter
32 mm
Displacement
250 cm³/rev
Max continuous torque
493 N·m
Max. continous working pressure
155 BAR
Max intermittend working pressure
175 BAR
Max pressure peak
200 BAR
Max. flow rate
75 l/min
Max rotation speed
295 r/min
Min rotation speed
10 r/min
Main port thread diameter
1/2 Inch
Main port thread type
G
Drain port thread diameter
1/4 Inch
Drain port thread type
G
L1Rotor length
35 mm
Max. power
14 kW
LHousing length
175 mm
  • Brand
  • Reference
    SMH250A432YGP
  • In stock
    5 Items
  • Condition
    New
  • CODE
    SMH2504BDGP
  • EAN
    8719493052770
