Orbit motor 400cc, SMT400A440YGP gopart B480SMT4004MDSP SMT4004MD SMT4004MDGP
search
  • Orbit motor 400cc, SMT400A440YGP gopart B480SMT4004MDSP SMT4004MD SMT4004MDGP

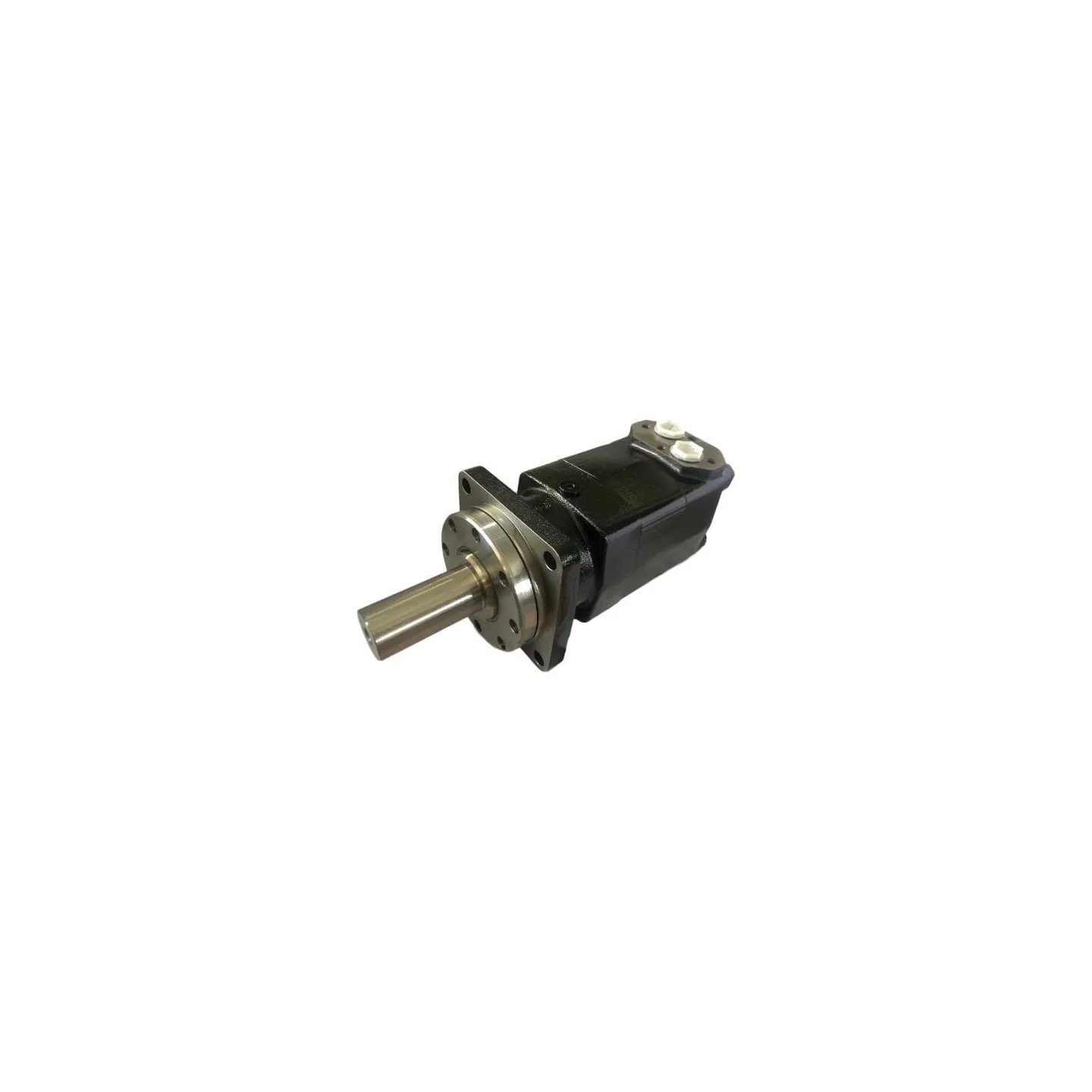

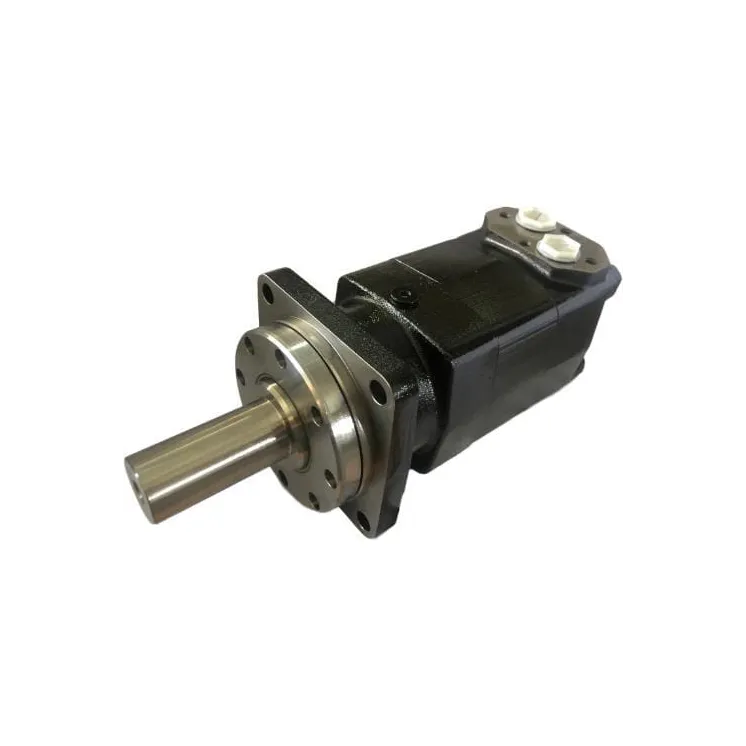

Orbit motor 400cc, SMT400A440YGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€307.18
Tax included
4-5 Working days
Orbit motor 400cc, SMT400A440YGP gopart B480SMT4004MDSP SMT4004MD SMT4004MDGP
IN WAREHOUSE

31503

Part number
SMT400A440YGP
EAN8719493056686
Unit
Each
Long description
Orbital motor type SMT / gopart
Details
High axial, radial axle load and a high torque
Application range
  • Can be used wherever a high torque and low speeds are required
  • Also suitable for continuous reversal of rotation
  • Suitable for continuous use with large loads
Properties
  • With leakage oil drain
  • Roller construction
  • Tapered roller bearing
  • From the large orbit motors series
  • Robust design
  • Excellent starting characteristics
  • Runs very quietly at low speeds
Benefits
Good price/performance ratio
Flange shape
Square
Number of mounting holes
4
Shaft type
Straight parallel
Shaft diameter
40 mm
Displacement
400 cm³/rev
Max continuous torque
1008 N·m
Max. continous working pressure
180 BAR
Max intermittend working pressure
210 BAR
Max pressure peak
240 BAR
Max rotation speed
305 r/min
Min rotation speed
6 r/min
Main port thread diameter
3/4 Inch
Main port thread type
G
Drain port thread diameter
1/4 Inch
Drain port thread type
G
Port position
Side
L1Rotor length
38 mm
Max. power
22 kW
L2Main port center to front flange distance
176 mm
LHousing length
227 mm
  • Brand
  • Reference
    SMT400A440YGP
  • In stock
    5 Items
  • Condition
    New
  • CODE
    B480SMT4004MDSP SMT4004MD SMT4004MDGP
  • EAN
    8719493056686
