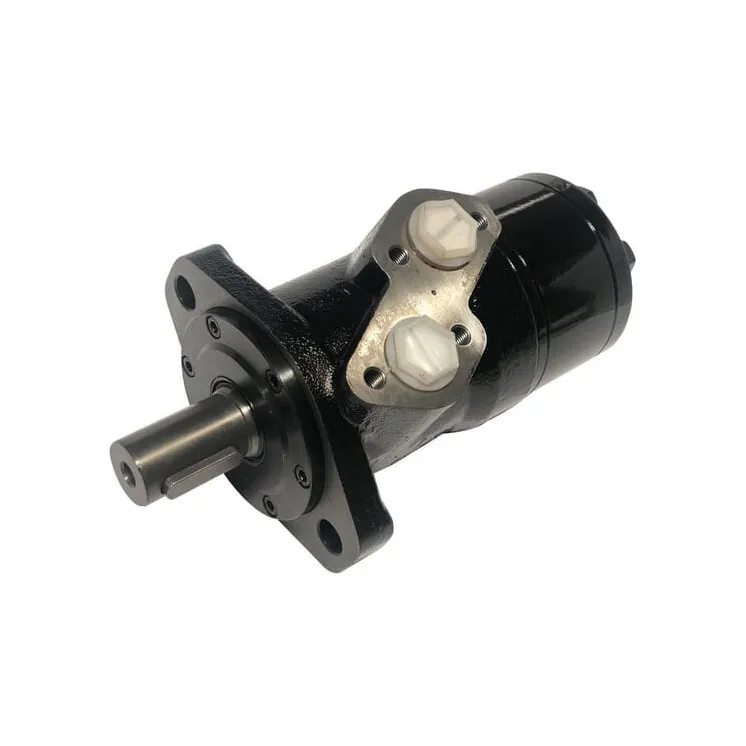

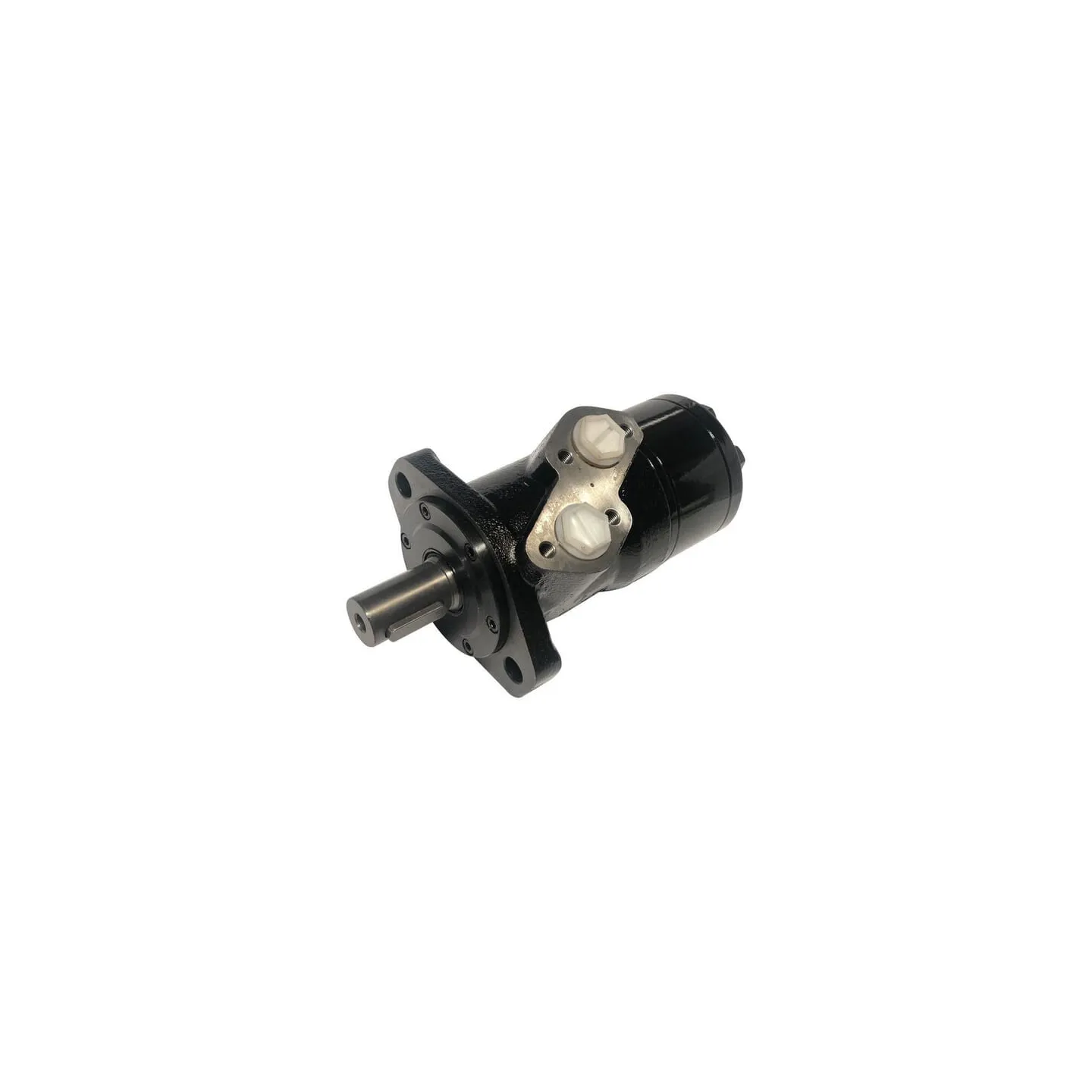

Orbit motor 250cc, SMP250A232YGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€114.95
Tax included
4-5 Working days
Orbit motor 250cc, SMP250A232YGP gopart SMP2502BDB SMP2502BDGP
IN WAREHOUSE

31505

Part number
SMP250A232YGP
EAN8719607280204
Unit
Each
Long description
Orbital motor type SMP / gopart
Details
High axial, radial axle load and a high torque
Application range
  • Can be used wherever a high torque and low speeds are required
  • Can be used briefly in high pressure conditions
Properties
  • With leakage oil drain
  • Rotor construction
  • Wide shaft slip bearing
  • Can be connected to several motors in a row
  • Suitable for use in closed systems
  • From the medium-sized orbit motors series
  • Robust and compact construction
Benefits
Good price/performance ratio
Flange shape
Oval
Number of mounting holes
2
Shaft type
Cylindrical
Shaft diameter
32 mm
Displacement
250 cm³/rev
Max continuous torque
300 N·m
Max. continous working pressure
100 BAR
Max intermittend working pressure
140 BAR
Max pressure peak
160 BAR
Max. flow rate
60 l/min
Max rotation speed
245 r/min
Min rotation speed
10 r/min
Main port thread diameter
1/2 Inch
Main port thread type
BSP
Drain port thread diameter
1/4 Inch
Drain port thread type
BSP
Port position
Side
L1Rotor length
32 mm
Max. power
9 kW
  • Brand
  • Reference
    SMP250A232YGP
  • In stock
    3 Items
  • Condition
    New
  • CODE
    SMP2502BDB SMP2502BDGP
  • EAN
    8719607280204
