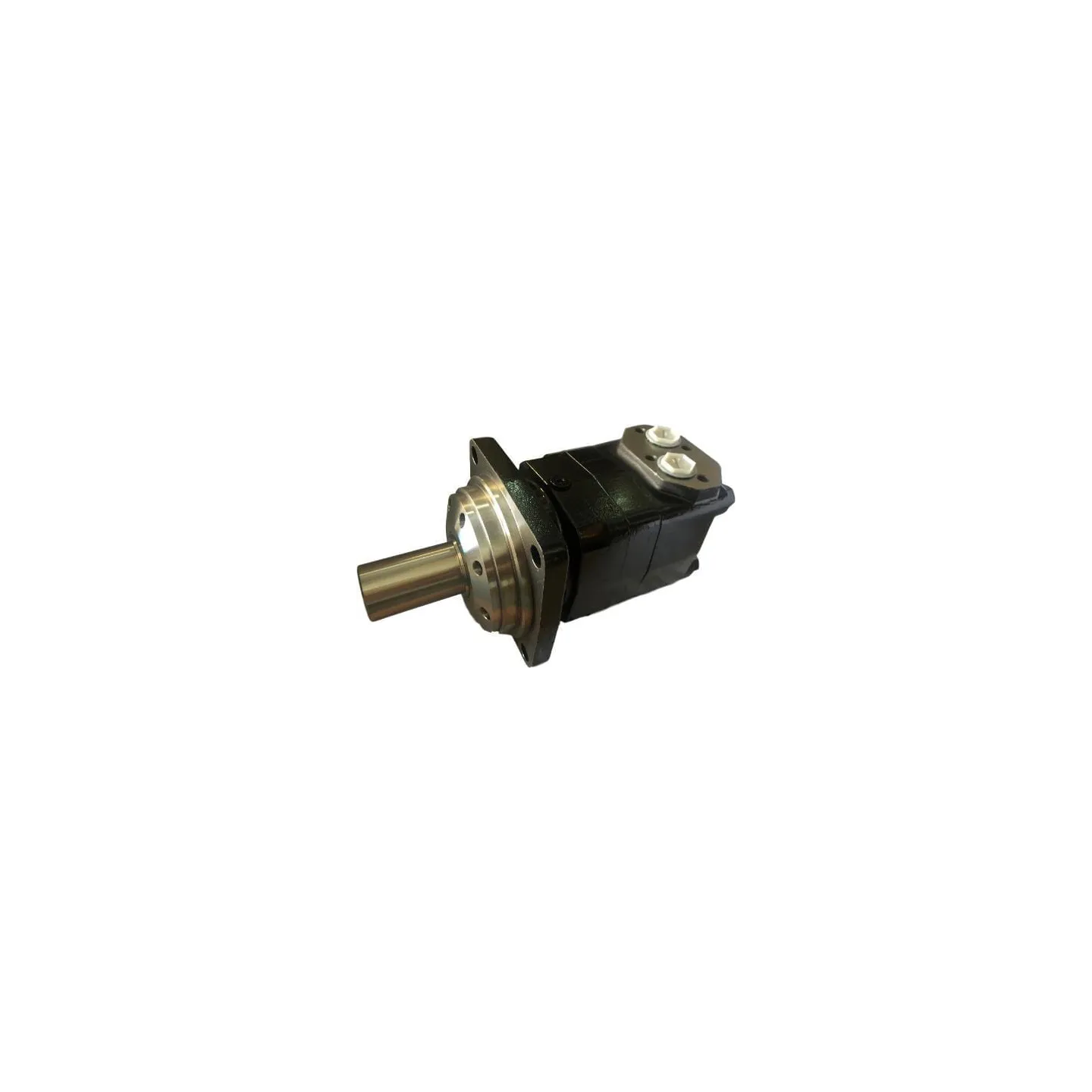

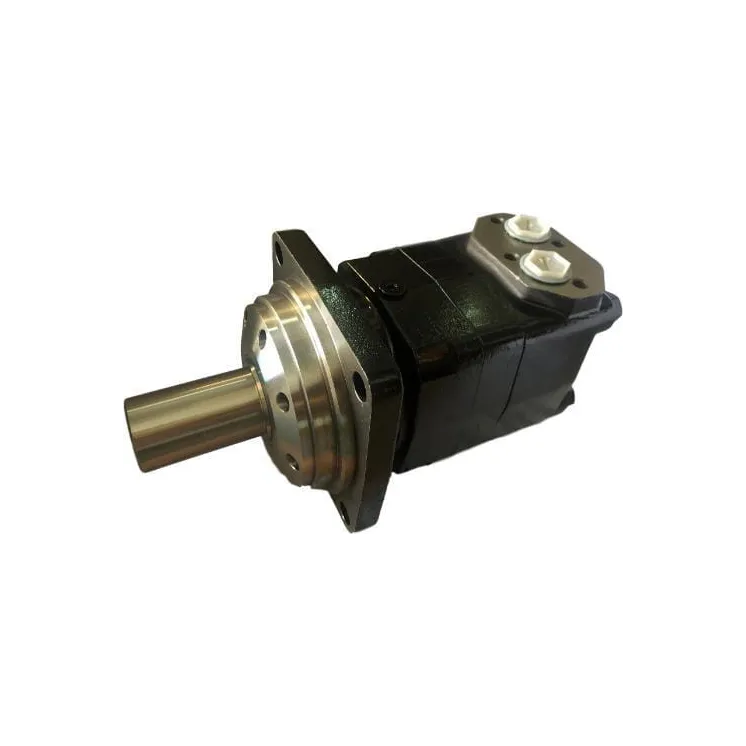

Orbit motor 630cc, SMV630A440YGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€422.47
Tax included
4-5 Working days
Orbit motor 630cc, SMV630A440YGP gopart B480SMV6304ADSP SMV6304AD SMV6304ADGP
IN WAREHOUSE

31513

Part number
SMV630A440YGP
EAN8719493059243
Unit
Each
Long description
Orbital motor type SMV / gopart
Details
  • High axial, radial axle load and a high torque
  • Runs very quietly at low speeds
Application range
  • Can be used wherever a high torque and low speeds are required
  • Also suitable for continuous reversal of rotation
  • Suitable for continuous use with large loads
Properties
  • Roller construction
  • Tapered roller bearing
  • From the large orbit motors series
  • With leakage oil drain
  • Robust design
  • Excellent starting characteristics
Benefits
  • Good price/performance ratio
  • Minimal loss of power
Flange shape
Square
Number of mounting holes
4
Shaft type
Straight parallel
Shaft diameter
50 mm
Displacement
630 cm³/rev
Max continuous torque
1570 N·m
Max. continous working pressure
180 BAR
Max intermittend working pressure
210 BAR
Max pressure peak
240 BAR
Max rotation speed
238 r/min
Min rotation speed
6 r/min
Main port thread diameter
1 Inch
Main port thread type
G
Drain port thread diameter
1/4 Inch
Drain port thread type
G
Port position
Side
L1Rotor length
44 mm
Max. power
32 kW
L2Main port center to front flange distance
211 mm
LHousing length
239 mm
  • Brand
  • Reference
    SMV630A440YGP
  • In stock
    5 Items
  • Condition
    New
  • CODE
    B480SMV6304ADSP SMV6304AD SMV6304ADGP
  • EAN
    8719493059243
