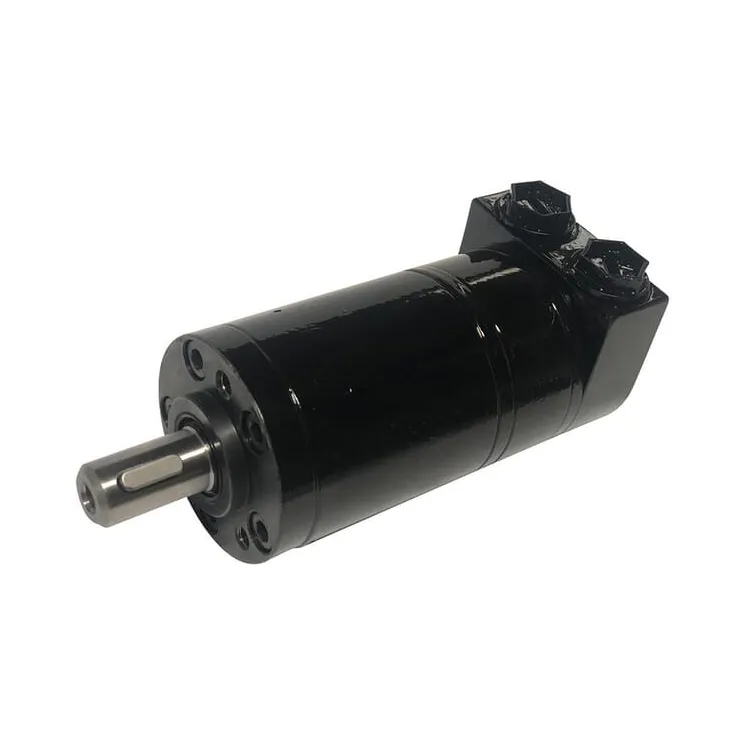

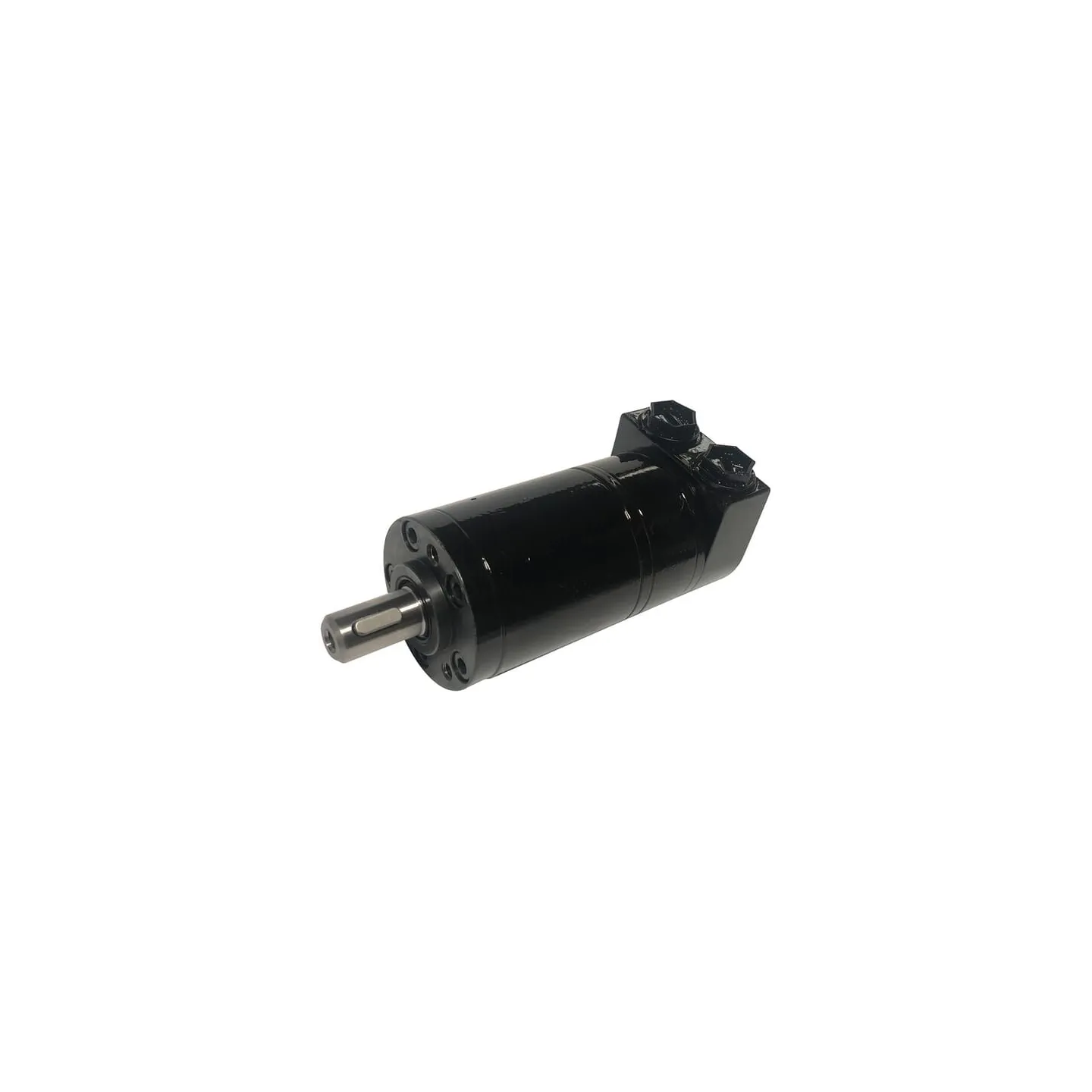

Orbit motor 40cc, SMM40CPSGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€113.76
Tax included
4-5 Working days
Orbit motor 40cc, SMM40CPSGP gopart B480SMM40MAESP SMM40MAE SMM40MAEGP
IN WAREHOUSE

31540

Part number
SMM40CPSGP
EAN8719607280389
Unit
Each
Long description
Orbit motors are distinguished by compact design and high starting torque.
Pros
  • Available with rear or side connections
  • A variety of shaft designs are available
Product details
  • Suitable for continuous operation at medium pressure or short-term operation at high pressure
  • Robust and compact design
  • Refer to technical information on maximum radial and axial loads
  • Belongs to the series of small orbit motors
Flange shape
Round
Number of mounting holes
3
Shaft type
Cylindrical
Shaft diameter
16 mm
Displacement
400 cm³/rev
Max continuous torque
45 N·m
Max. continous working pressure
90 BAR
Max intermittend working pressure
140 BAR
Max pressure peak
160 BAR
Max. flow rate
20 l/min
Max rotation speed
500 r/min
Main port thread diameter
3/8 Inch
Main port thread type
BSP
Drain port thread diameter
1/8 Inch
Drain port thread type
BSP
Port position
End
L1Rotor length
17 mm
Max. power
2.2 kW
  • Brand
  • Reference
    SMM40CPSGP
  • In stock
    5 Items
  • Condition
    New
  • CODE
    B480SMM40MAESP SMM40MAE SMM40MAEGP
  • EAN
    8719607280389
