Orbit motor SMH-400-4-B-D-GP SMH4004BDGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€282.04
Tax included
4-5 Working days
Orbit motor SMH-400-4-B-D-GP SMH4004BDGP gopart
IN WAREHOUSE

31542

Part number
SMH4004BDGP
EAN8716106063659
Unit
Each
Long description

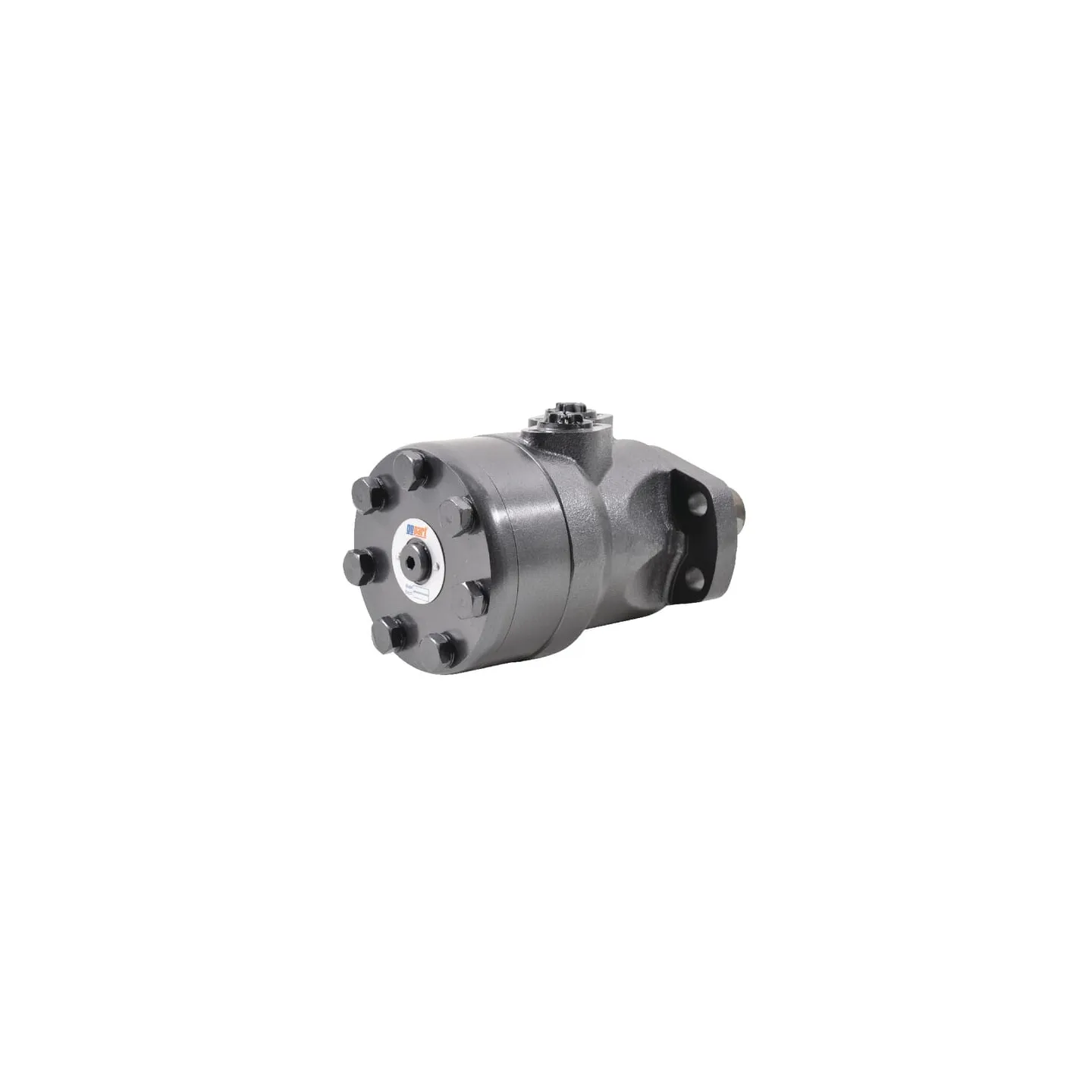

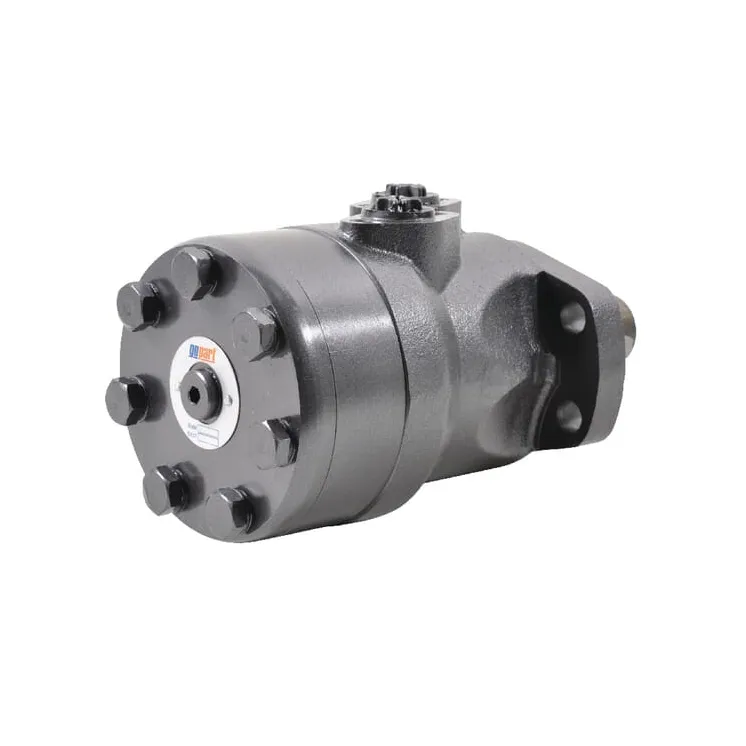

Orbital motor type SMH / gopart
Details
  • High axial, radial axle load and a high torque
  • Low wear
Application range
  • Can be used wherever a high torque and low speeds are required
  • Also suitable for continuous reversal of rotation
  • Can be used continuously in high pressure conditions
Properties
  • Roller construction
  • Wide shaft slip bearing
  • From the medium-sized orbit motors series
  • With leakage oil drain
  • Compact and extremely robust construction
Benefits
  • Good price/performance ratio
  • Long service life
Flange shape
Oval
Flange code
SAE-A
Number of mounting holes
4
Shaft type
Straight parallel
Shaft diameter
32 mm
Displacement
400 cm³/rev
Max continuous torque
850 N·m
Max. continous working pressure
155 BAR
Max intermittend working pressure
190 BAR
Max pressure peak
210 BAR
Max. flow rate
75 l/min
Max rotation speed
183 r/min
Min rotation speed
10 r/min
Main port thread diameter
1/2 Inch
Main port thread type
G
Drain port thread diameter
1/4 Inch
Drain port thread type
G
L1Rotor length
54 mm
Max. power
7.4 kW
LHousing length
195 mm
  • Brand
  • Reference
    SMH4004BDGP
  • In stock
    4 Items
  • Condition
    New
  • EAN
    8716106063659
