Orbit motor 160cc, SMT160A440YGP gopart SMT1604MD SMT1604MDGP
search
  • Orbit motor 160cc, SMT160A440YGP gopart SMT1604MD SMT1604MDGP

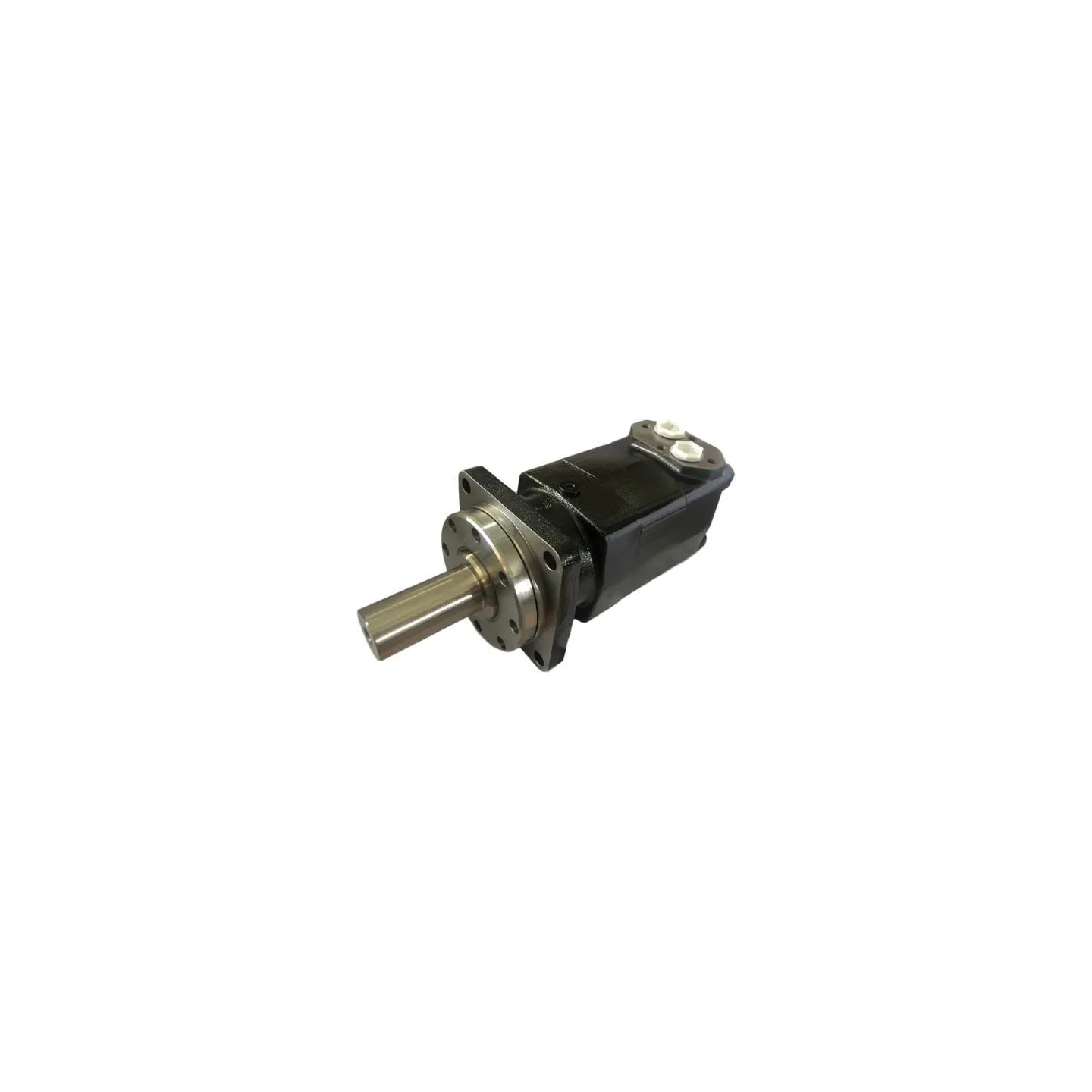

Orbit motor 160cc, SMT160A440YGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€300.30
Tax included
4-5 Working days
Orbit motor 160cc, SMT160A440YGP gopart SMT1604MD SMT1604MDGP
IN WAREHOUSE

31554

Part number
SMT160A440YGP
EAN8719493051803
Unit
Each
Long description
Orbital motor type SMT / gopart
Details
High axial, radial axle load and a high torque
Application range
  • Can be used wherever a high torque and low speeds are required
  • Also suitable for continuous reversal of rotation
  • Suitable for continuous use with large loads
Properties
  • With leakage oil drain
  • Roller construction
  • Tapered roller bearing
  • From the large orbit motors series
  • Robust design
  • Excellent starting characteristics
  • Runs very quietly at low speeds
Benefits
Good price/performance ratio
Flange shape
Square
Number of mounting holes
4
Shaft type
Straight parallel
Shaft diameter
40 mm
Displacement
160 cm³/rev
Max continuous torque
450 N·m
Max. continous working pressure
200 BAR
Max intermittend working pressure
240 BAR
Max pressure peak
280 BAR
Max rotation speed
625 r/min
Min rotation speed
10 r/min
Main port thread diameter
3/4 Inch
Main port thread type
G
Drain port thread diameter
1/4 Inch
Drain port thread type
G
Port position
Side
L1Rotor length
12 mm
Max. power
20.1 kW
L2Main port center to front flange distance
150 mm
LHousing length
201 mm
  • Brand
  • Reference
    SMT160A440YGP
  • In stock
    5 Items
  • Condition
    New
  • CODE
    SMT1604MD SMT1604MDGP
  • EAN
    8719493051803
