Orbit motor 800cc, SMV800A440YGP gopart B480SMV8004ADSP SMV8004ADGP
search
  • Orbit motor 800cc, SMV800A440YGP gopart B480SMV8004ADSP SMV8004ADGP

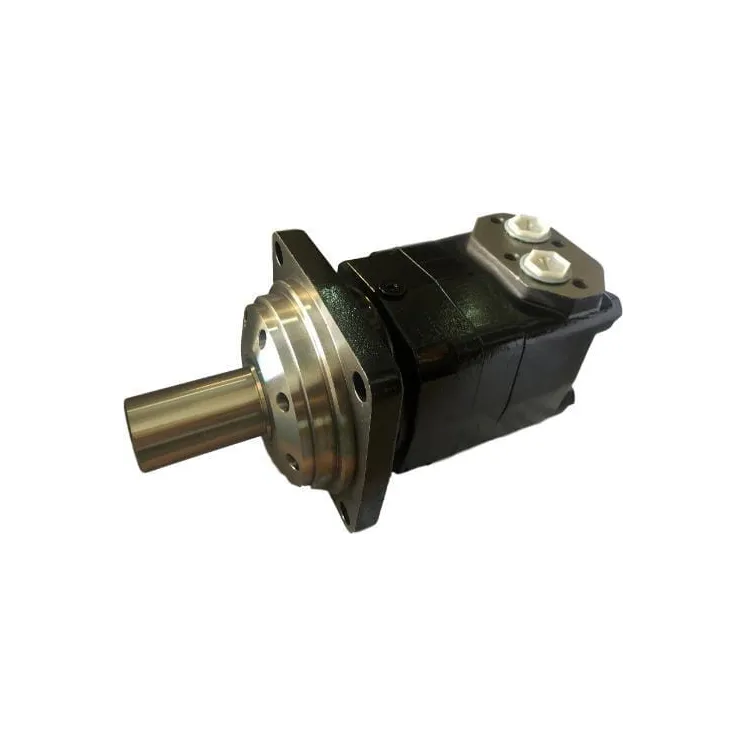

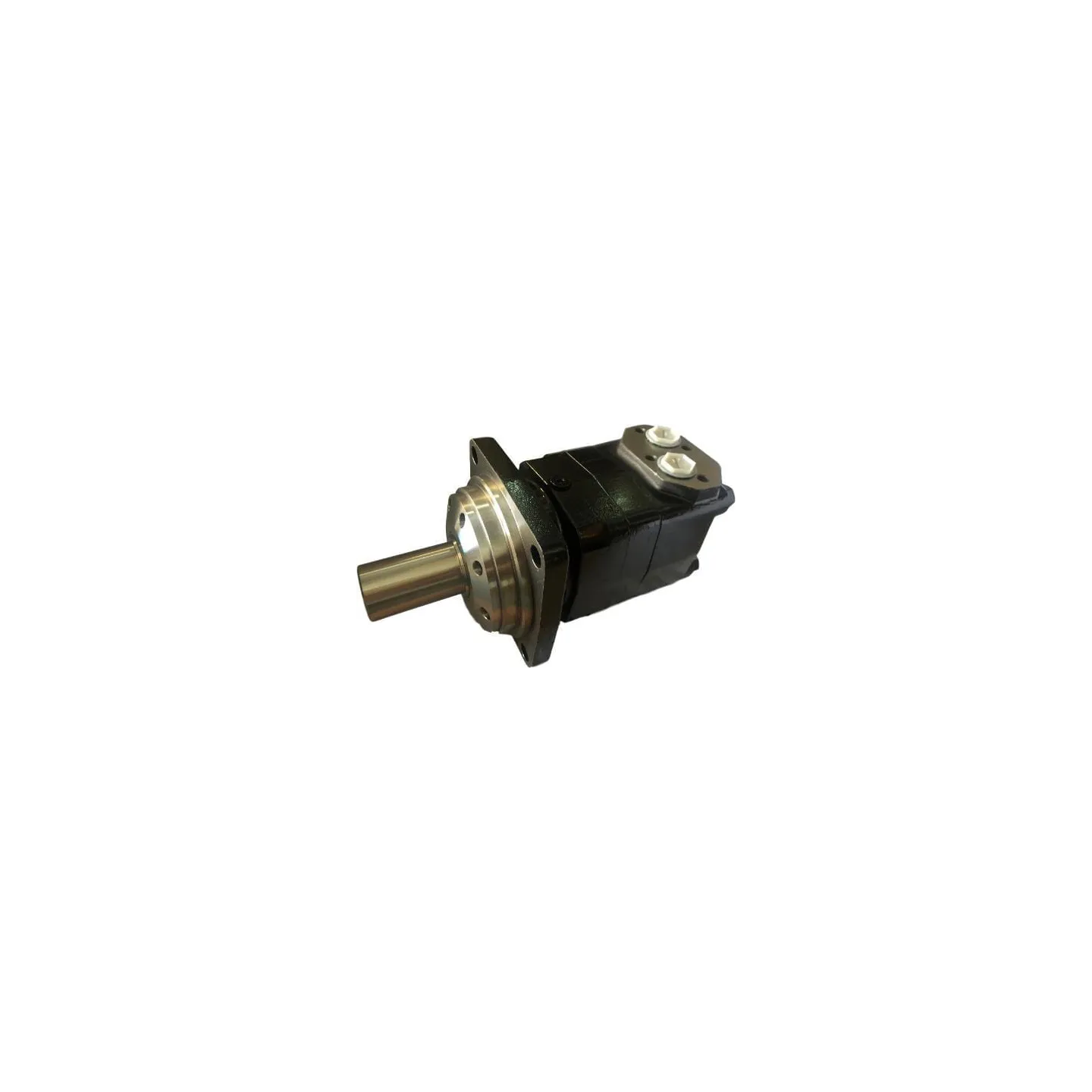

Orbit motor 800cc, SMV800A440YGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€438.32
Tax included
4-5 Working days
Orbit motor 800cc, SMV800A440YGP gopart B480SMV8004ADSP SMV8004ADGP
IN WAREHOUSE

31574

Part number
SMV800A440YGP
EAN8719493053364
Unit
Each
Long description
Orbital motor type SMV / gopart
Details
  • High axial, radial axle load and a high torque
  • Runs very quietly at low speeds
Application range
  • Can be used wherever a high torque and low speeds are required
  • Also suitable for continuous reversal of rotation
  • Suitable for continuous use with large loads
Properties
  • Roller construction
  • Tapered roller bearing
  • From the large orbit motors series
  • With leakage oil drain
  • Robust design
  • Excellent starting characteristics
Benefits
  • Good price/performance ratio
  • Minimal loss of power
Flange shape
Square
Number of mounting holes
4
Shaft type
Straight parallel
Shaft diameter
50 mm
Displacement
800 cm³/rev
Max continuous torque
1773 N·m
Max. continous working pressure
160 BAR
Max intermittend working pressure
180 BAR
Max pressure peak
210 BAR
Max rotation speed
187 r/min
Min rotation speed
5 r/min
Main port thread diameter
1 Inch
Main port thread type
G
Drain port thread diameter
1/4 Inch
Drain port thread type
G
Port position
Side
L1Rotor length
58 mm
Max. power
32 kW
L2Main port center to front flange distance
225 mm
LHousing length
253 mm
  • Brand
  • Reference
    SMV800A440YGP
  • In stock
    1 Item
  • Condition
    New
  • CODE
    B480SMV8004ADSP SMV8004ADGP
  • EAN
    8719493053364
