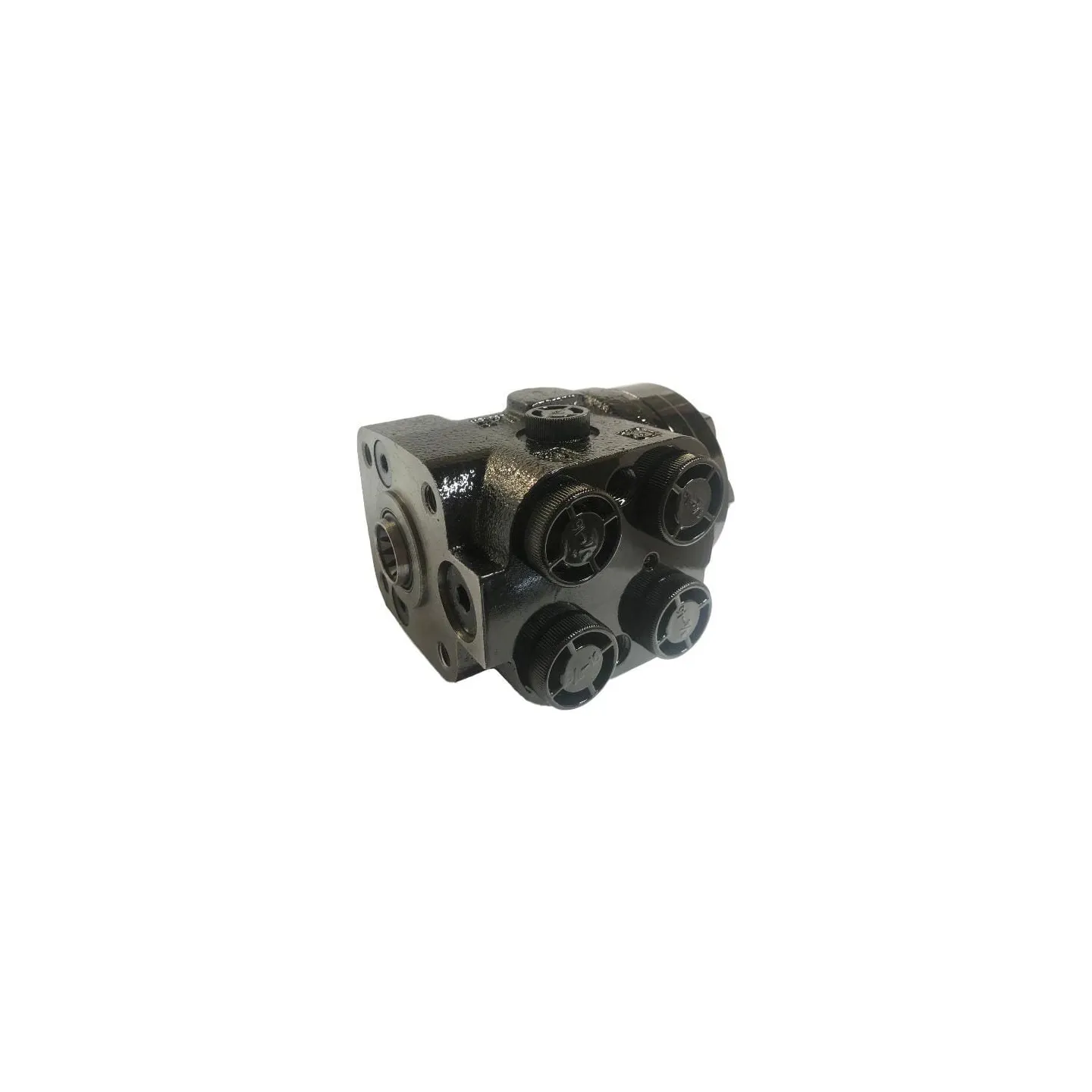

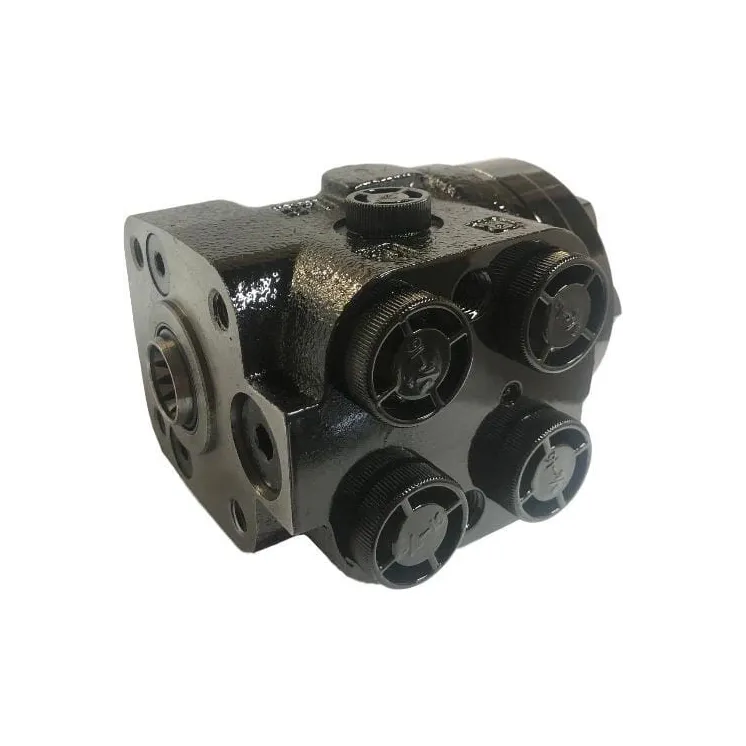

Orbital steering unit 100cc, SOSPC100LSTGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€130.38
Tax included
4-5 Working days
Orbital steering unit 100cc, SOSPC100LSTGP gopart B480SOSPC100LSGP
IN WAREHOUSE

31810

Part number
SOSPC100LSTGP
EAN8719493058895
Unit
Each
Pros
  • Good value for money
  • Minimal loss of energy
  • High levels of safety and comfort
  • Minimal noise emission
  • Slight reduction in pressure
Product details
  • Small design
  • Design: open-centre non reaction (SOSPB with integrated valves)
  • "O" stands for "open system" In the neutral position, oil flows from connection "P" (pump) to connection "T" (tank)
  • "N" stands for "non reaction". Forces acting on the wheels from outside are not transmitted to the steering gear.
Displacement
100 cm³/rev
Type
LS
Pressure relief valve
Yes
Pressure relief valve
140 BAR
Shock valve
Yes
Shock valve pressure
200 BAR
Max T connection pressure
25 BAR
Max. working pressure
175 BAR
Min required flow
10 l/min
Thread diameter - connection A
1/2 Inch
Thread type - connection A
BSP
Thread type - connection LS
BSP
Thread diameter - connection LS
1/4 Inch
Dimension L1
136 mm
Material
Cast iron
  • Brand
  • Reference
    SOSPC100LSTGP
  • In stock
    4 Items
  • Condition
    New
  • CODE
    B480SOSPC100LSGP
  • EAN
    8719493058895
