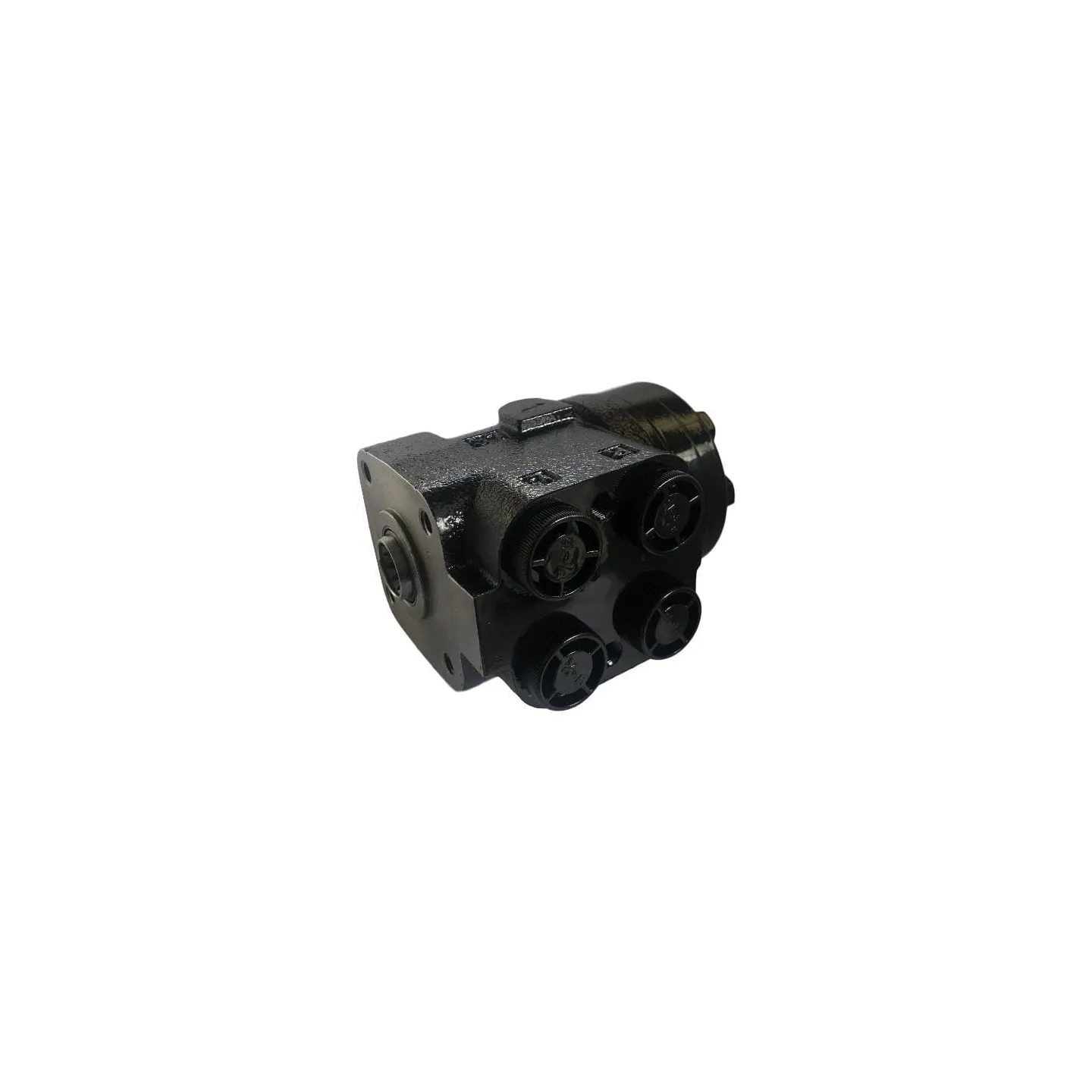

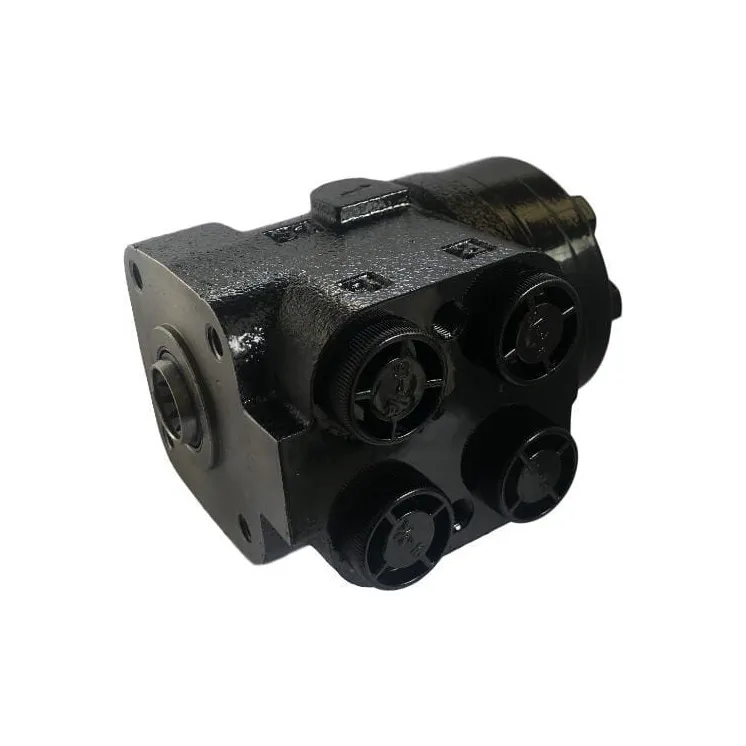

Orbital steering unit 125cc, SOSPB125NONGP gopart B480SOSPB125ONSP SOSPB125ONGP
search
  • Orbital steering unit 125cc, SOSPB125NONGP gopart B480SOSPB125ONSP SOSPB125ONGP

Orbital steering unit 125cc, SOSPB125NONGP

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€140.90
Tax included
4-5 Working days
Orbital steering unit 125cc, SOSPB125NONGP gopart B480SOSPB125ONSP SOSPB125ONGP
IN WAREHOUSE

31821

Part number
SOSPB125NONGP
EAN8719493059618
Unit
Each
Details
Identical in design to the steering orbitrols of well-known manufacturers
Application range
Vehicles and ships with fully hydraulic steering
Properties
  • Compact design
  • Design: open-centre, non reaction
Technical info
  • Open center
  • Open center steering units have open connection between pump and tank in the neutral position. In open center steering systems, pumps with fixed displacement are used.
  • Non-reaction
  • With non-reaction steering units there is no corresponding movement of the steering wheel when the driver is not steering the vehicle.
Benefits
  • Good value for money
  • High levels of safety and comfort
  • Simple system design
  • Minimal noise emission
  • Requires low actuating torque from the steering wheel
Displacement
125 cm³/rev
Type
ON
Max T connection pressure
25 BAR
Max. working pressure
175 BAR
Load sensing type
n/a
Min required flow
12.5 l/min
Thread diameter - connection A
1/2 Inch
Thread type - connection A
BSP
LDimension L1
141 mm
Material
Cast iron
  • Brand
  • Reference
    SOSPB125NONGP
  • In stock
    5 Items
  • Condition
    New
  • CODE
    B480SOSPB125ONSP SOSPB125ONGP
  • EAN
    8719493059618
