| Part number | UCF205GP | |
|---|---|---|
| EAN | 8716106031450 | |
| Unit | Each | |

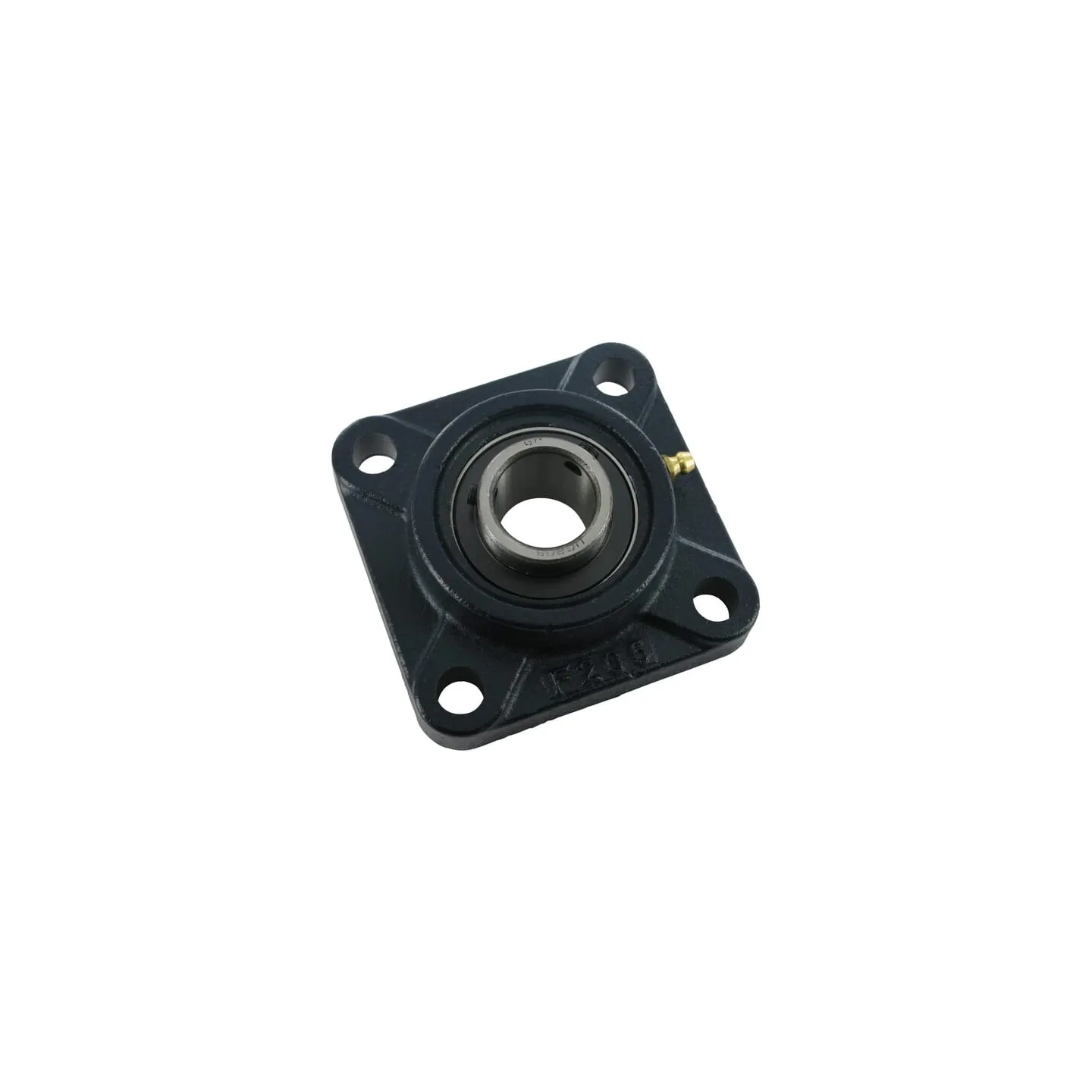

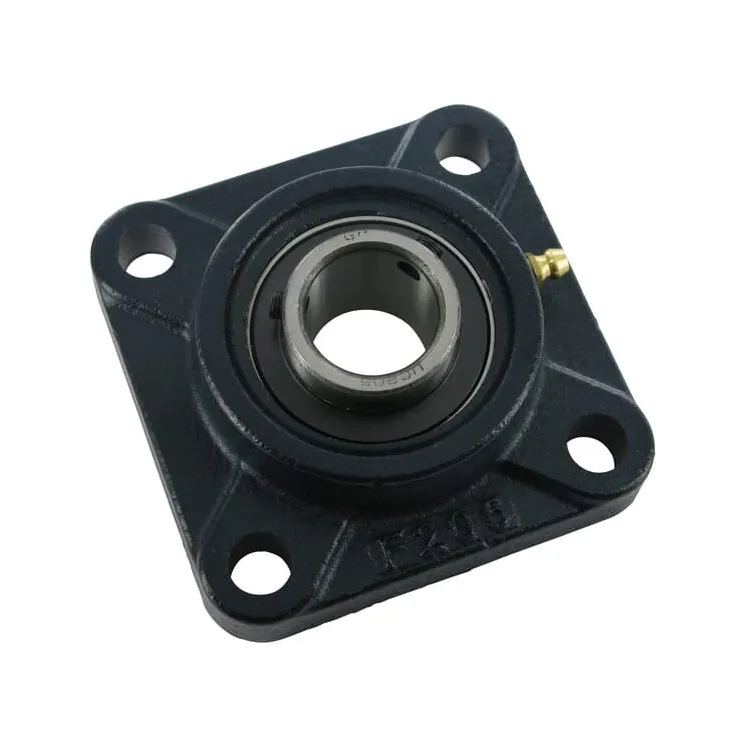

| Long description | These gopart square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. | |
| Pros |
| |
| Product details |
| |
| Includes |
| |
| Housing type | Square flange | |
| dBearing inside diameter | 25 mm | |
| aTotal length | 95 mm | |
| aHousing width | 95 mm | |
| Total height | 35.7 mm | |
| lHousing height | 27 mm | |
| BiBearing inner ring width | 34 mm | |
| Bearing balls distance to locking side end | 16 mm | |
| lBearing balls distance to mounting surface | 14.3 mm | |
| eMounting holes distance | 70 mm | |
| Mounting holes diameter | 12 mm |
