| Part number | UCF209GP | |
|---|---|---|
| EAN | 8716106031498 | |
| Unit | Each | |

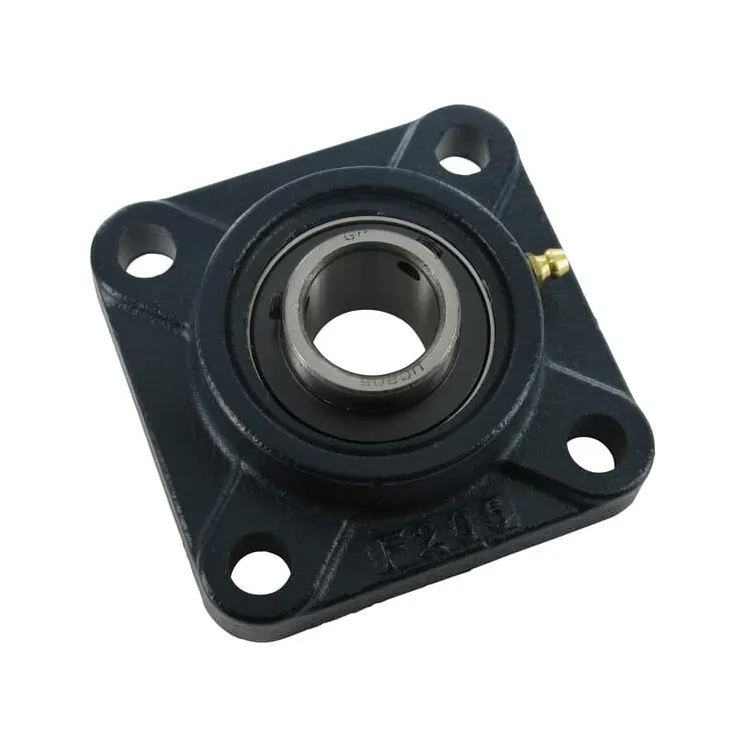

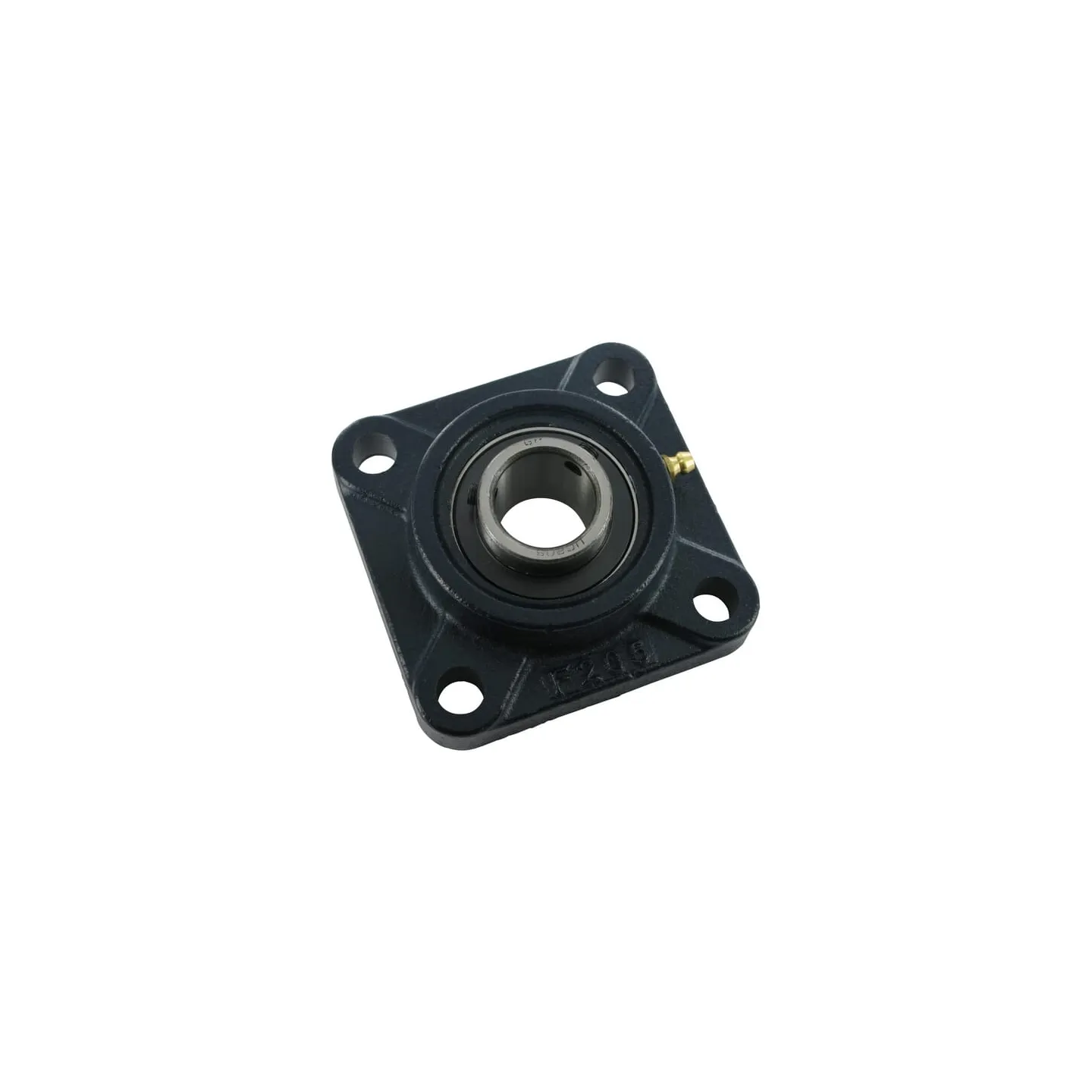

| Long description | These gopart square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. | |
| Pros |
| |
| Product details |
| |
| Includes |
| |
| Housing type | Square flange | |
| dBearing inside diameter | 45 mm | |
| aTotal length | 137 mm | |
| aHousing width | 137 mm | |
| Total height | 52.2 mm | |
| lHousing height | 38 mm | |
| BiBearing inner ring width | 49.2 mm | |
| Bearing balls distance to locking side end | 22 mm | |
| eMounting holes distance | 105 mm | |
| Mounting holes diameter | 16 mm |
