| Part number | UCF206GP | |
|---|---|---|
| EAN | 8716106031467 | |
| Unit | Each | |

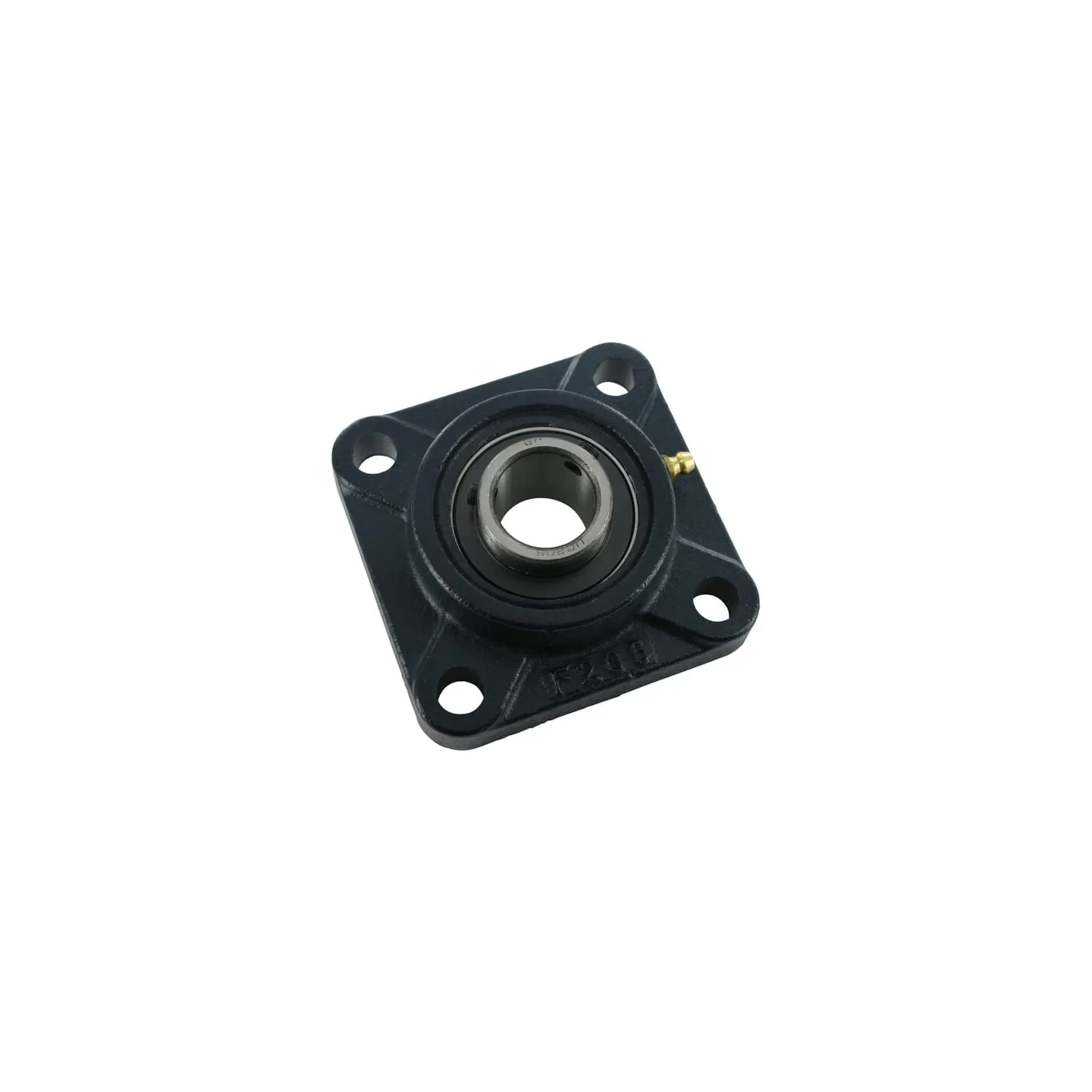

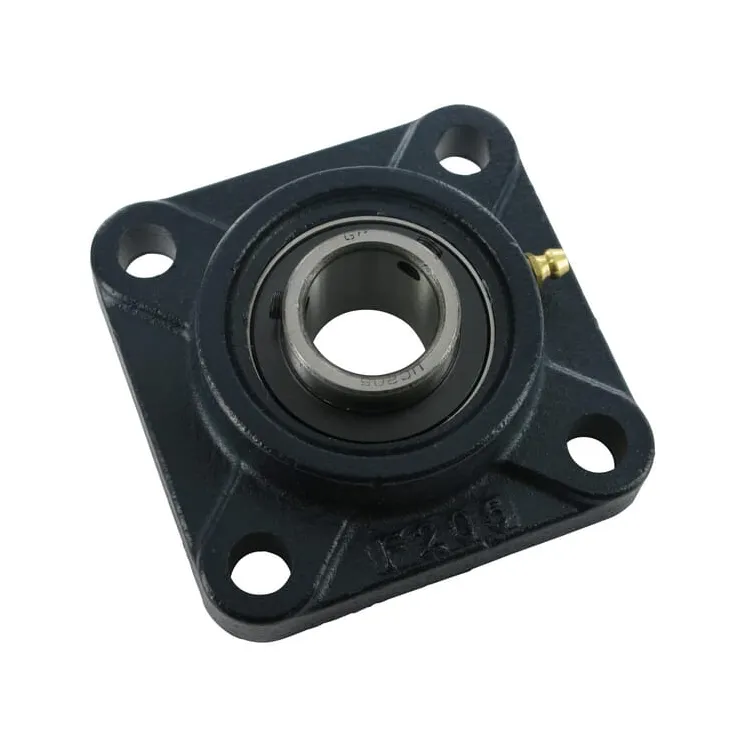

| Long description | These gopart square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. | |
| Pros |
| |
| Product details |
| |
| Includes |
| |
| Housing type | Square flange | |
| dBearing inside diameter | 30 mm | |
| aTotal length | 108 mm | |
| aHousing width | 108 mm | |
| Total height | 40.2 mm | |
| lHousing height | 31 mm | |
| BiBearing inner ring width | 38.1 mm | |
| Bearing balls distance to locking side end | 18 mm | |
| lBearing balls distance to mounting surface | 15.9 mm | |
| eMounting holes distance | 83 mm | |
| Mounting holes diameter | 12 mm |
