| Part number | UCFL208GP | |
|---|---|---|
| EAN | 8716106031566 | |
| Unit | Each | |

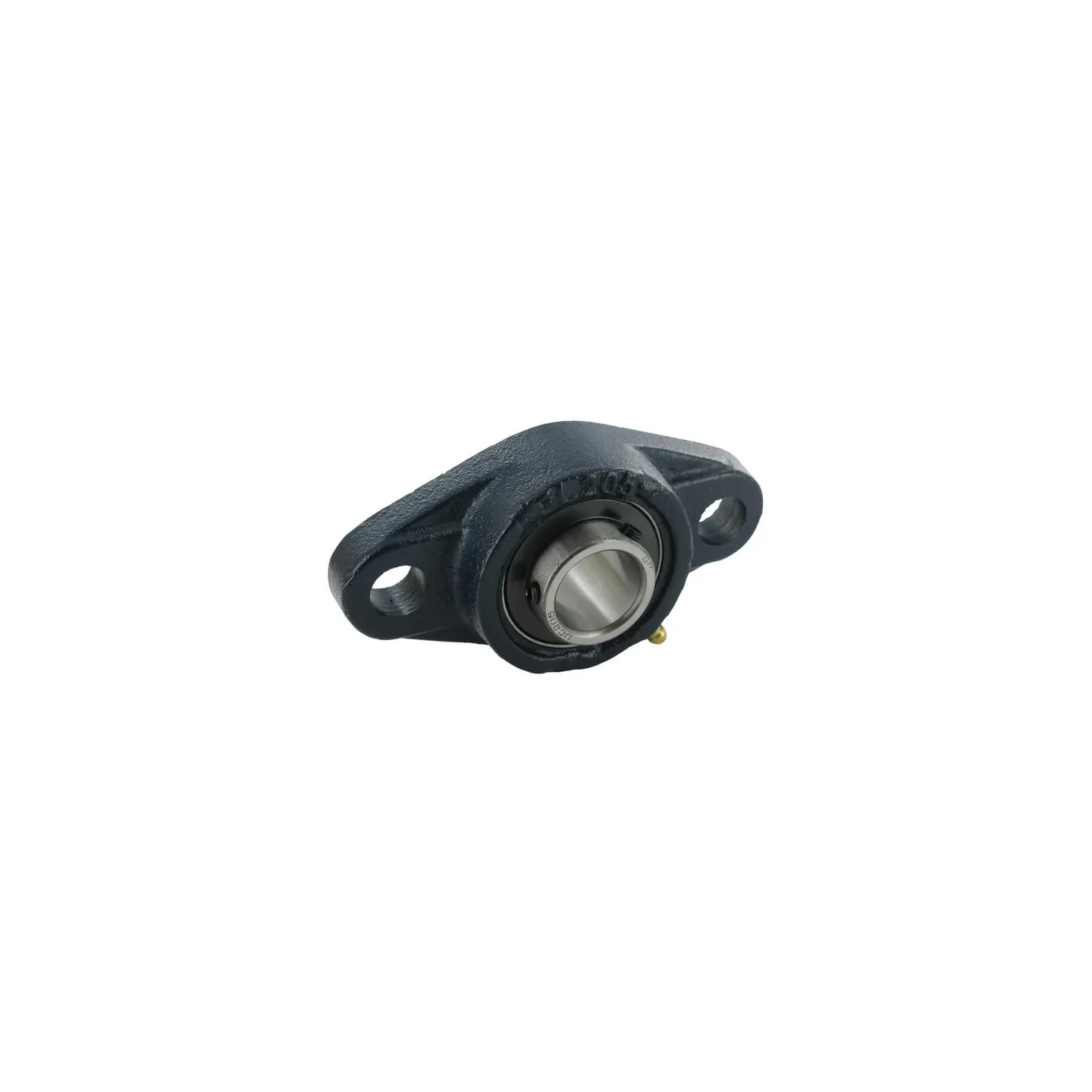

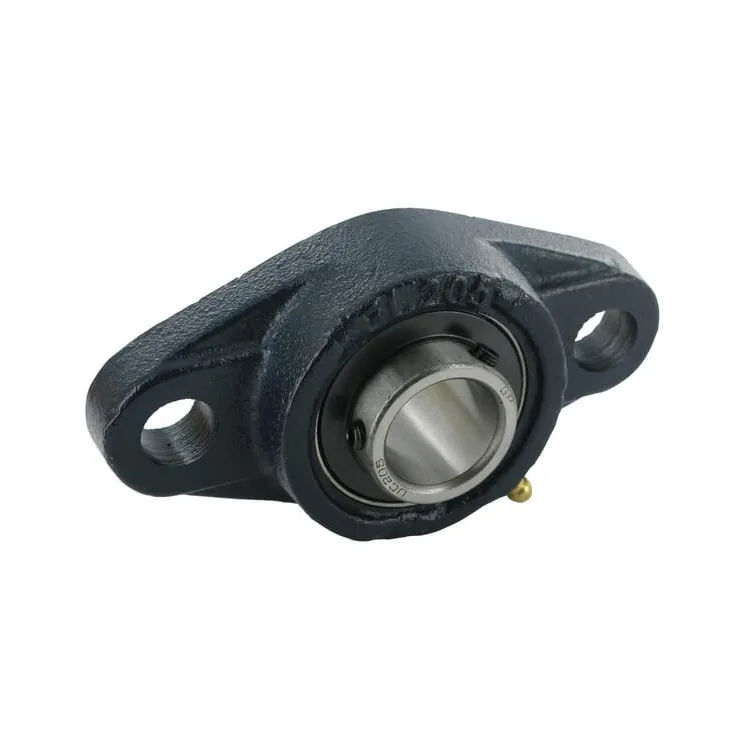

| Long description | These gopart ball bearing units with oval flange are already pre-assembled. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. | |
| Pros |
| |
| Product details |
| |
| Includes |
| |
| Housing type | Oval flange | |
| dBearing inside diameter | 40 mm | |
| aTotal length | 175 mm | |
| bHousing width | 100 mm | |
| ZTotal height | 51.2 mm | |
| lHousing height | 36 mm | |
| BiBearing inner ring width | 49.2 mm | |
| iBearing balls distance to locking side end | 21 mm | |
| eMounting holes distance | 144 mm | |
| SMounting holes diameter | 16 mm |
