| Part number | 3V670 | |
|---|---|---|
| EAN | 4014486044089 | |
| Unit | Each | |

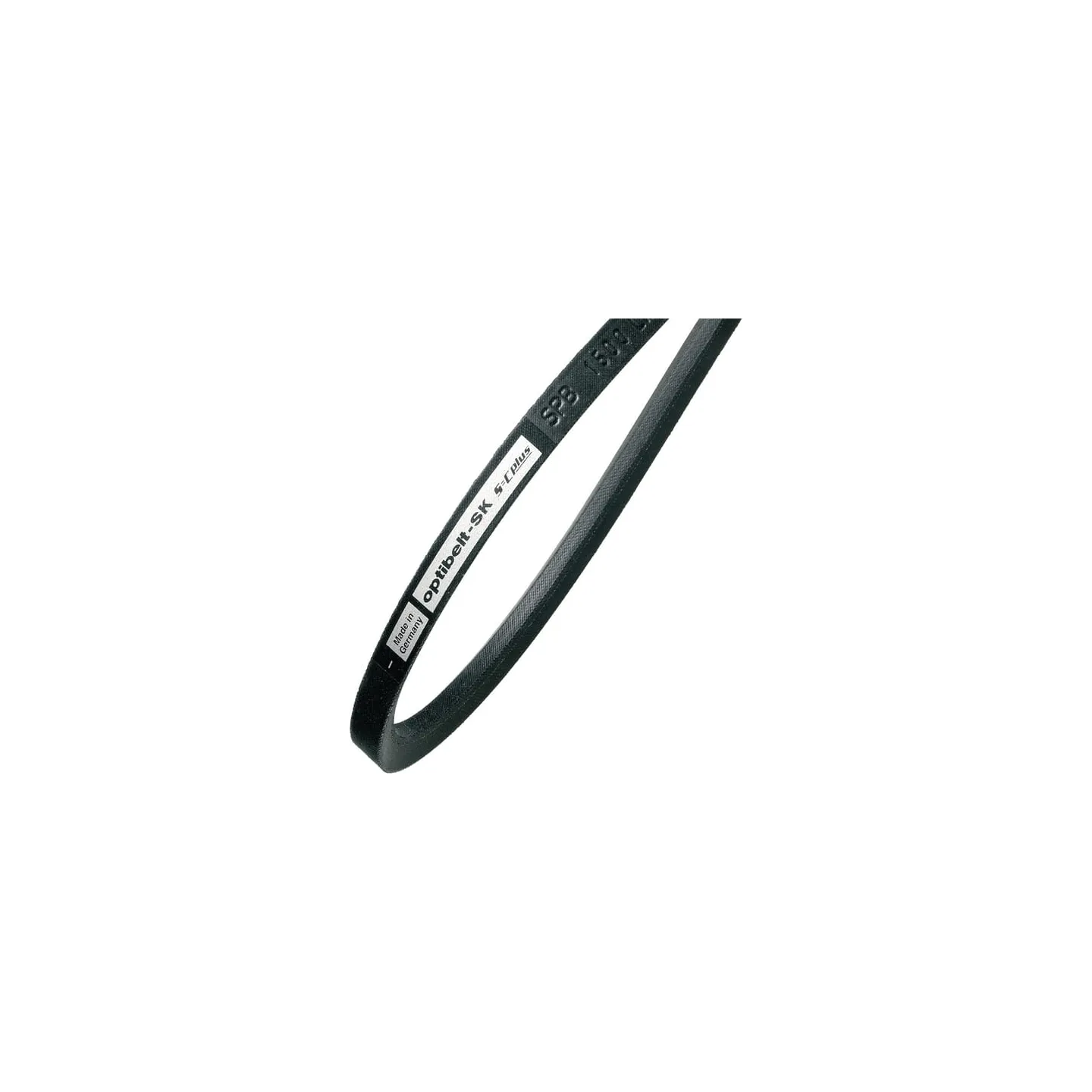

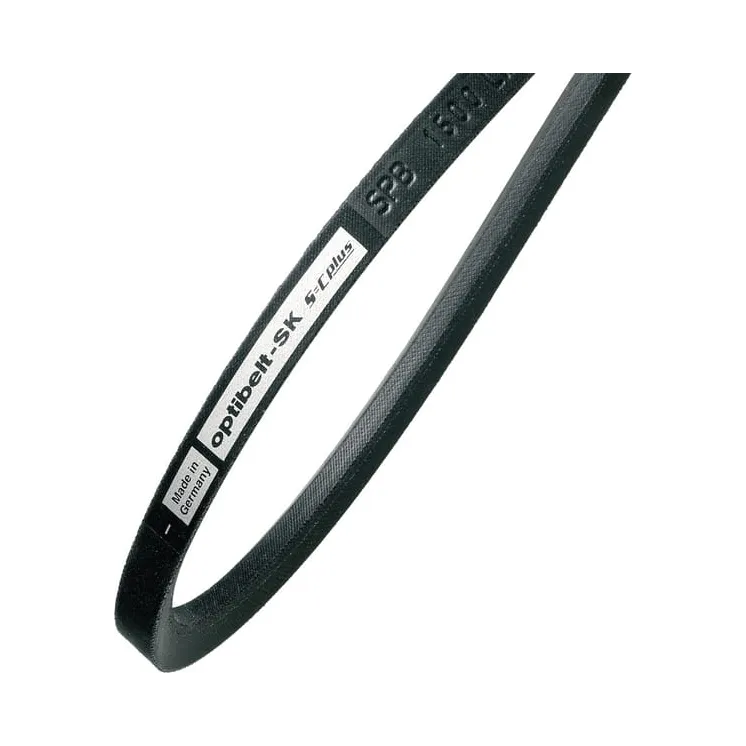

| Long description | Drive belt -high performance profile 3V | |
| Application range |
| |
| Properties |
| |
| Technical info | Inner length = outer length - 42 | |
| Benefits | Low downtimes | |
| Profile | 3V | |
| Width | 9 mm | |
| Outside length | 1702 mm | |
| Height | 8 mm | |
| Tension cord material | Polyester | |
| Pitch length | 1698 mm | |
| Width bottom | 4.2 mm | |
| Inside length | 1660 mm | |
| Max working speed | 42 m/s | |
| Material | Rubber | |
| Min. working temperature | -40 °C | |
| Max. working temperature | 70 °C | |
| Number of sections | 1 | |
| Punched | No | |
| Set-constant [matched] | Yes | |
| Cogged | No | |
| Suitable for back tensioner | No | |
| Oil resistant | Yes | |
| Weight | 0.074 kg/m | |
| Static | Yes | |
| Wrapped | Yes | |
| Content in sale unit | 1 pcs |
