| Part number | CP2081B0AC | |
|---|---|---|
| EAN | ||
| Unit | Each | |

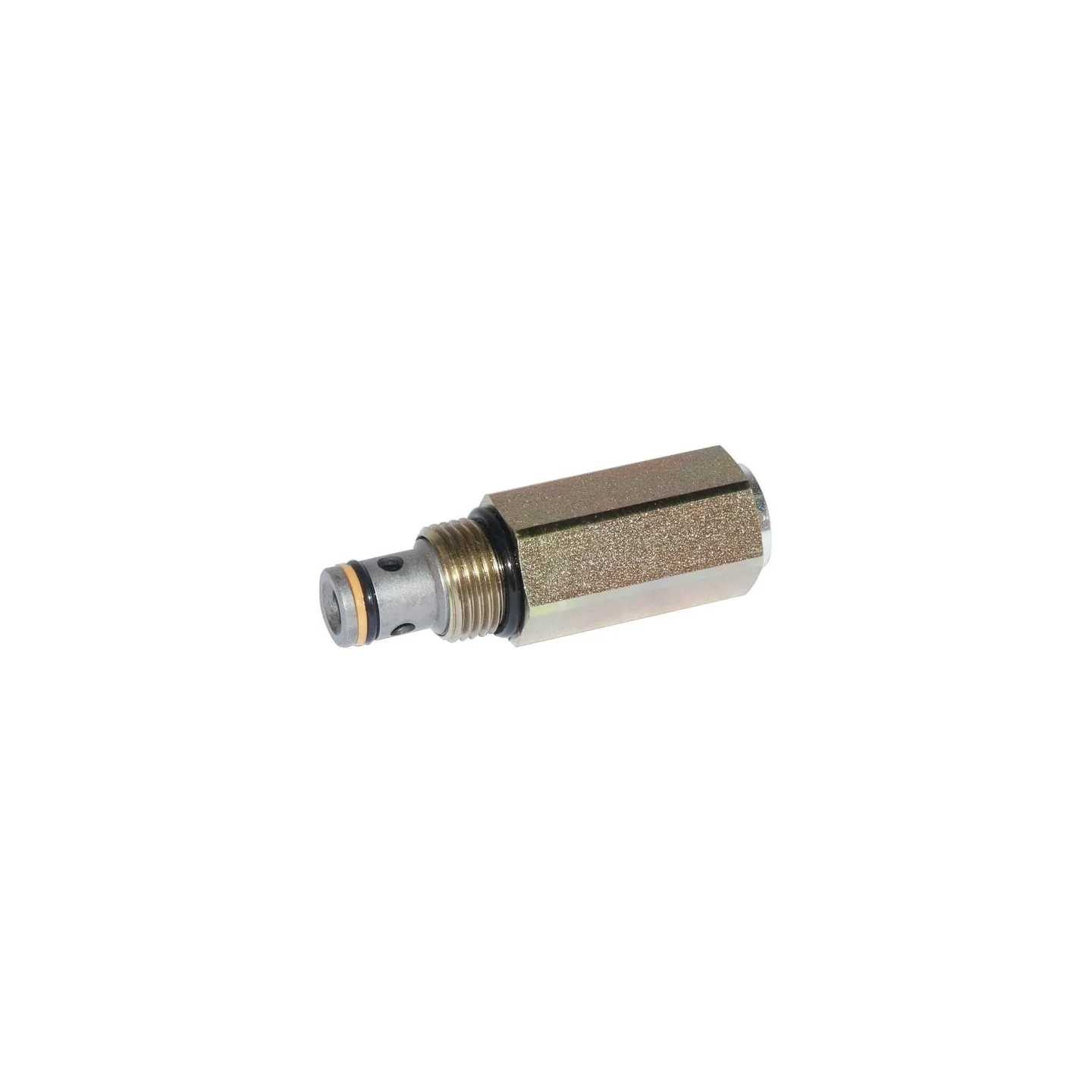

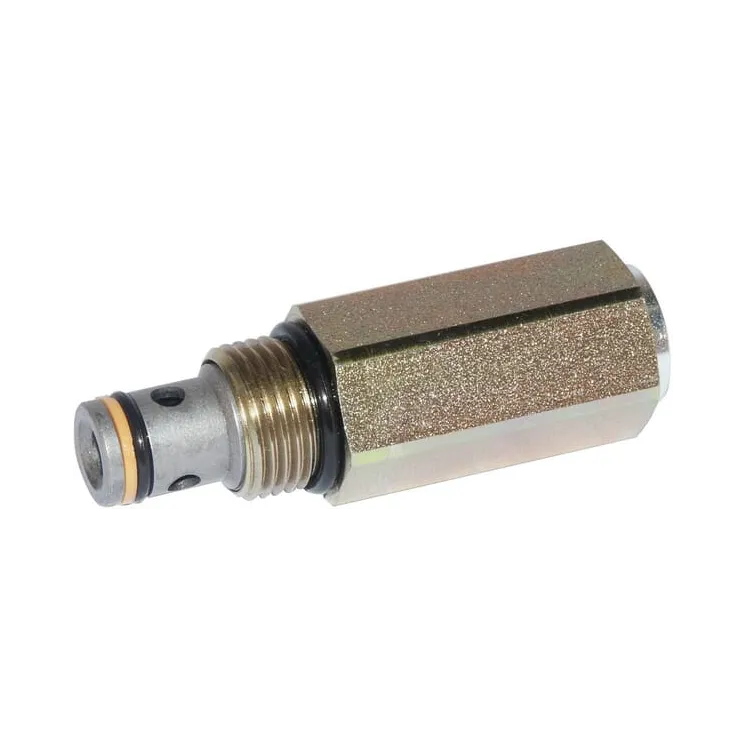

| Technical info | This single acting balancer valve has a free flow direction from 2 to 1 and a hold function with overload protection. | |
| Adjustment | Internal | |
| Designed for | As pump and motor protection or as shock valve on medium volume flow and medium pressure | |
| Flow rate | 38 l/min | |
| Pressure max. | 207 BAR | |
| Torque Nm | 34 - 41 N·m | |
| Note | Continuously switchable, fast reaction, good flow and pressure characteristics | |
| Overall length | 70.3 mm | |
| Pressure range | 41 - 248 BAR | |
| BScrew length | 27.7 mm | |
| Seal | Order no.: with code CP 9-4.8.001 | |
| Size | CP8-2 Inch | |
| Total length | 70.3 mm | |
| SW1Wrench size | 22.2 mm |
