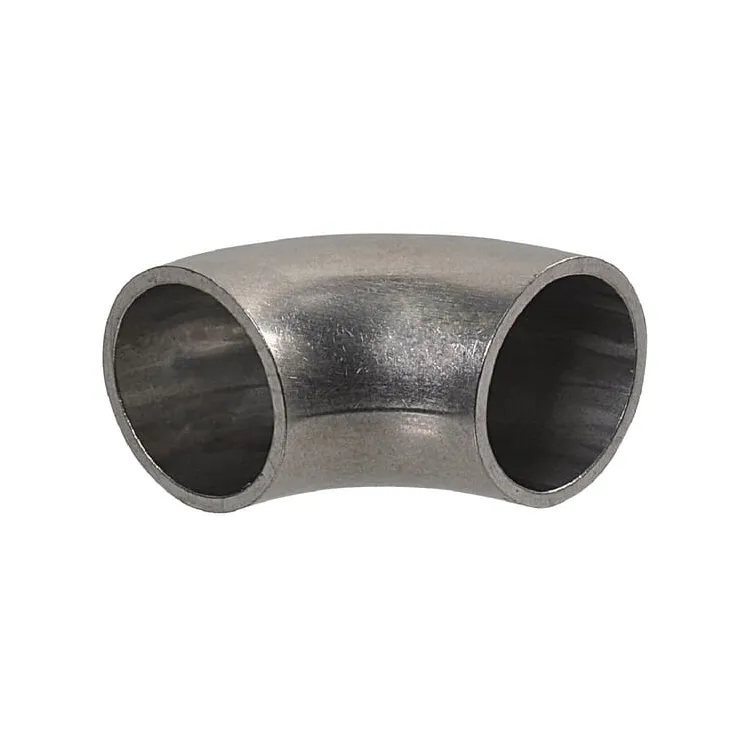

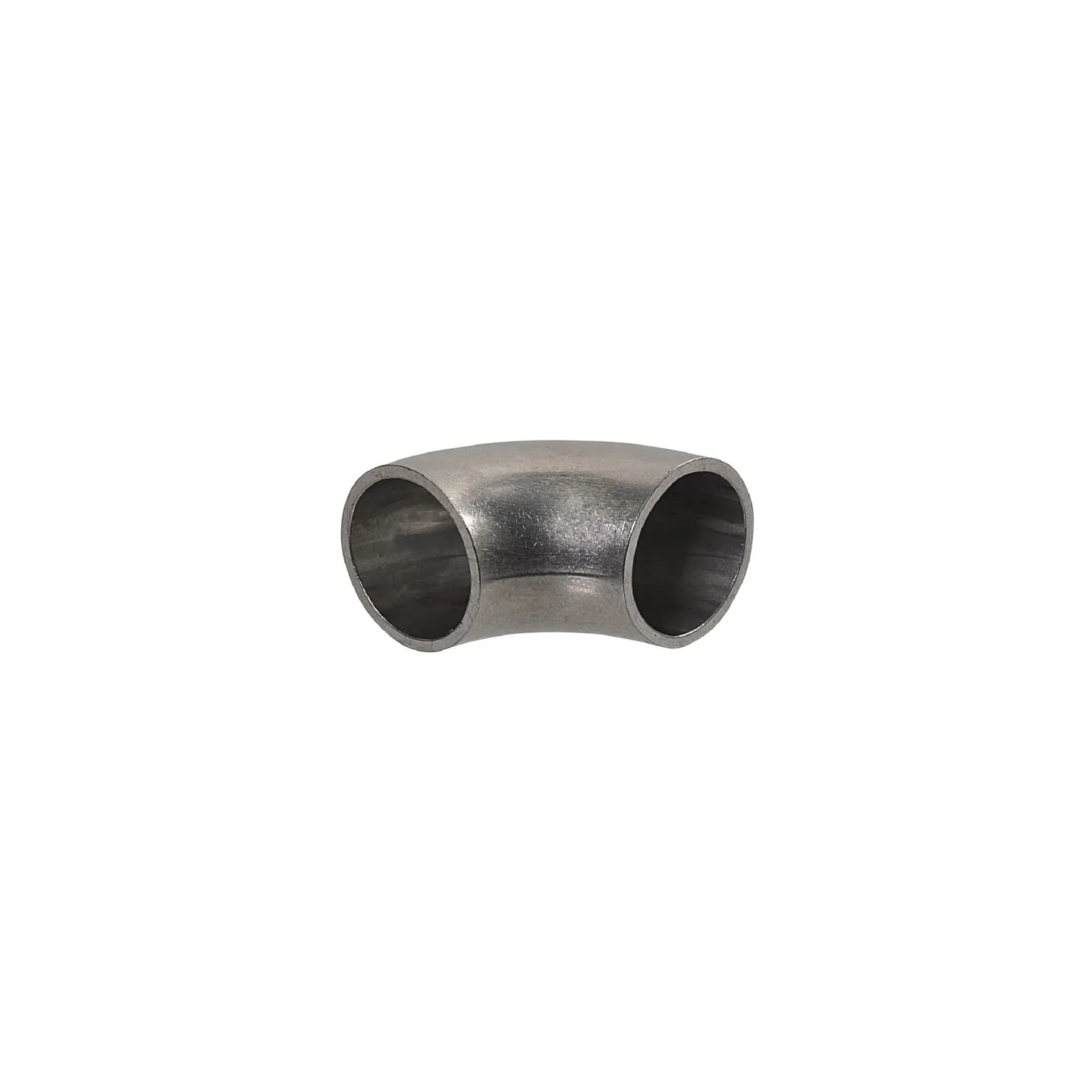

Weld-on bend 90Â° V4A 1 1/4 FG900114RVS

Name: Weld-on bend 90Â° V4A 1 1/4 FG900114RVS
Brand: AGRALV
SKU: FG900114RVS
Price: 9.27 EUR
Availability: InStock

Payment options

€9.27

Tax included

4-5 Working days

Weld-on bend 90Â° V4A 1 1/4 FG900114RVS AGRALV

IN WAREHOUSE

ID: 39110

Description

Part number	FG900114RVS
EAN
Unit	Each
Shape	Elbow - 2 connection sides
Connection no 1 type	Welded
Connection no 1 type - male/female	Male
Connection no 1 diameter	42.4 mm
Connection no 1 thread diameter	1-1/4 Inch
Connection 2, type	Welded
Connection 2, type - male/female	Male
Connection 2, diameter	42.4 mm
Connection 2, thread diameter	1-1/4 Inch
Material - SAE code	304
BInside diameter	32 mm
COutside diameter	42.4 mm
Angle	90 Â°
Max working pressure	16 BAR
DWall thickness	2 mm
Coupling number	900
ARadius	48 mm
