| Part number | FPM06 | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Application range | Suitable for all commercial fuels, including biodiesel, rapeseed oil and alcohol based fuels | |
| Properties | Resistant to ozone, oil and light | |
| Hose inside diameter | 1/4 Inch | |
| Hose inside diameter | 5.5 mm | |
| Max working pressure | 6 BAR | |
| Material inside | Fluo rubber [FPM] | |
| Bend radius | 55 mm | |
| Weight | 0.12 kg/m | |

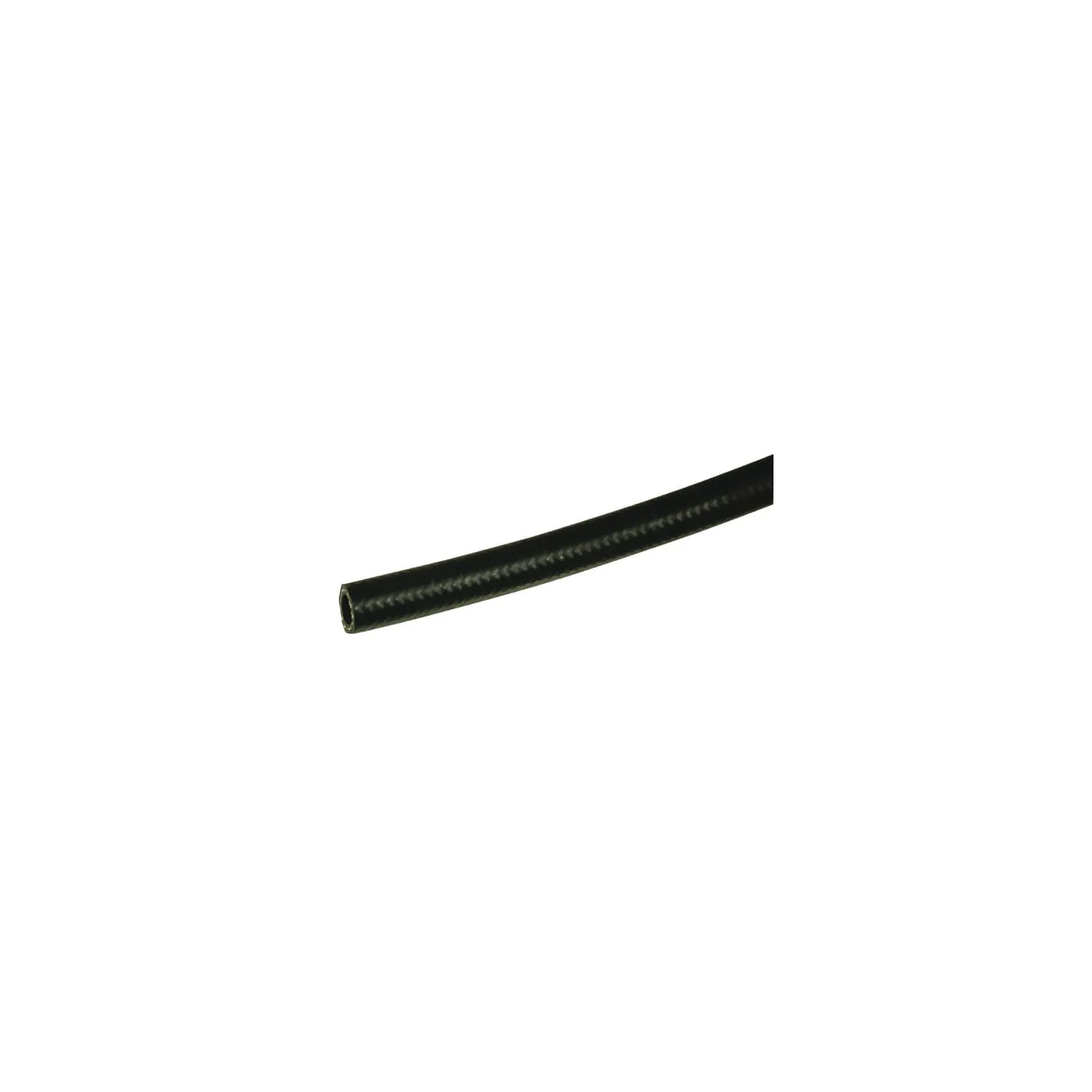

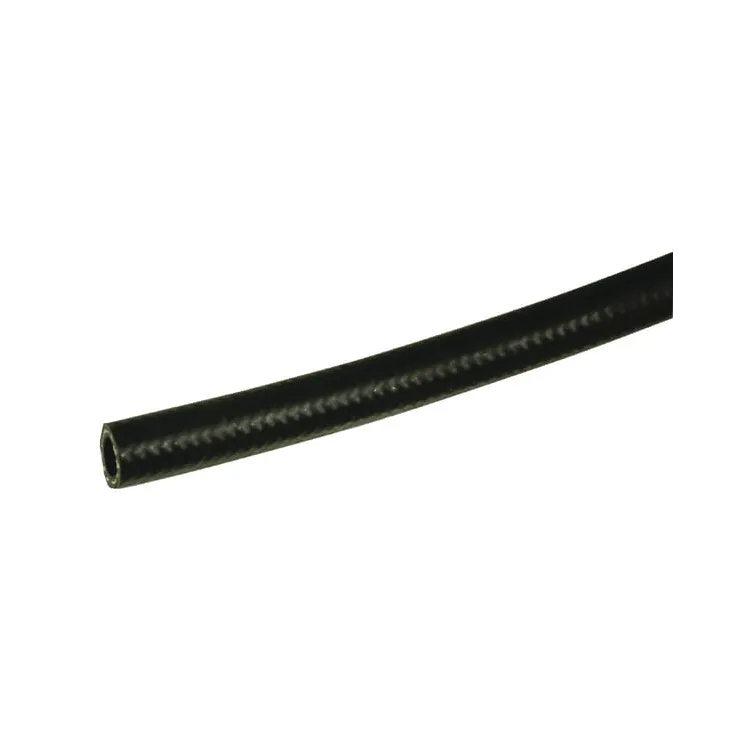

| Type | Oil transmission hose | |
| Hose outside diameter | 11.5 mm | |
| Wall thickness | 3 mm | |
| Burst pressure | 35 BAR | |
| Medium |
| |
| Max working temperature | 110 °C | |
| Min working temperature | -30 °C | |
| Material outside | Fluo rubber [FPM] | |
| Reinforcement type | Braid | |
| Reinforcement material | Poly-aramid | |
| Max length | 15 m | |
| Norm | SAE 30 R9 | |
| DIN standard | 73379 |
