| Part number | GZ1322 | |
|---|---|---|
| EAN | ||
| Unit | Each | |

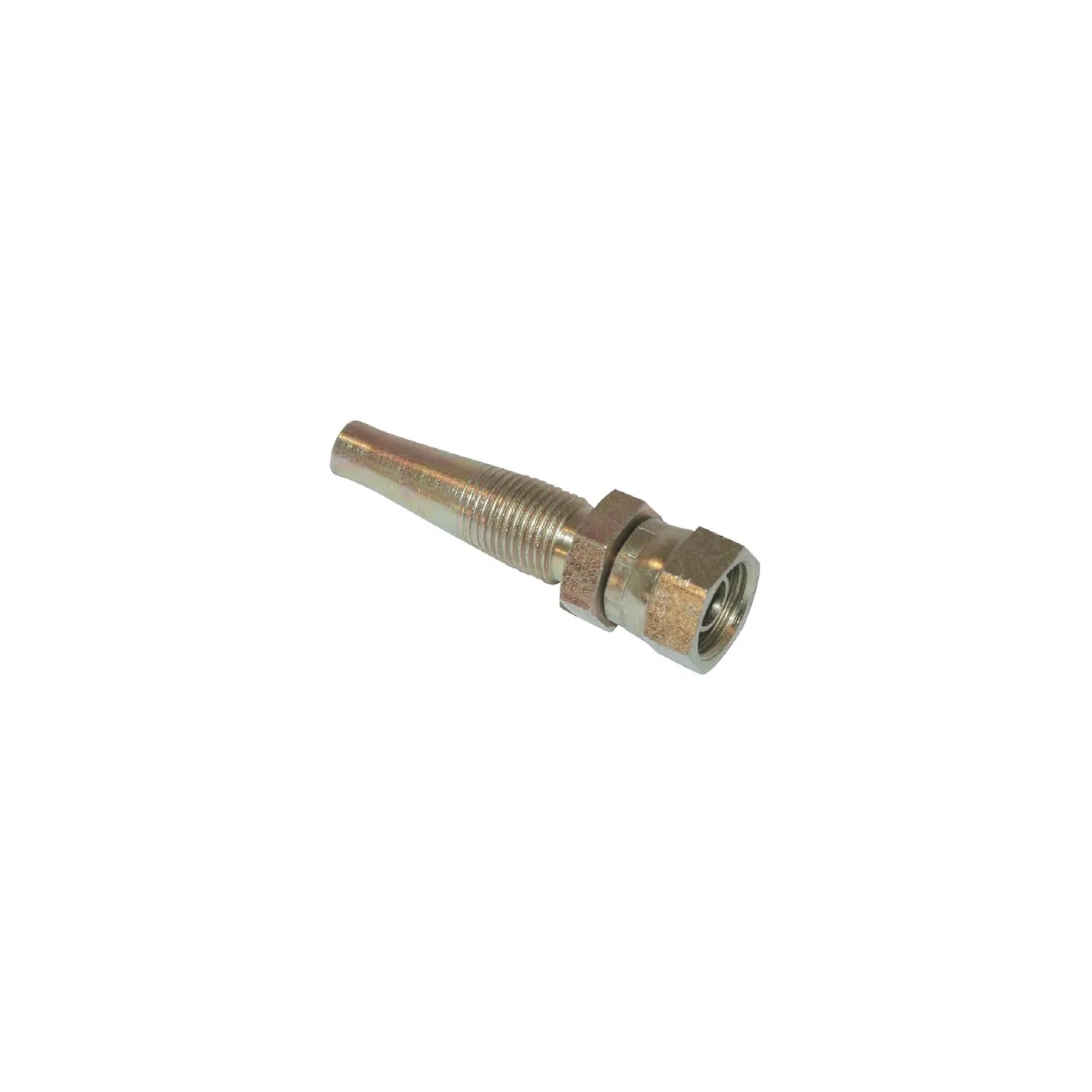

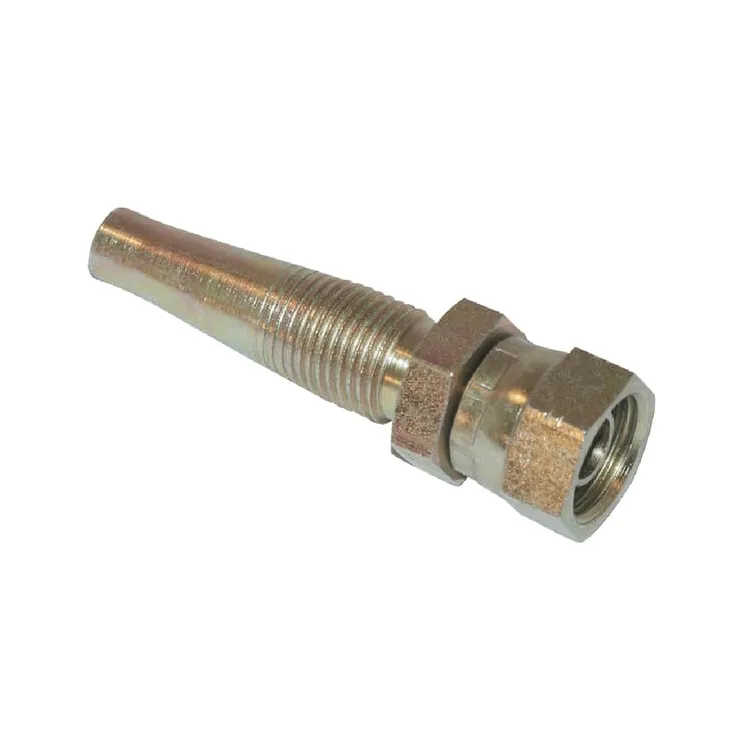

| Long description | Screw connectors GZ | |
| Product details | Metal on metal seal- Screw pipe nozzle allows a hose assembly to be assembled without the use of a hose press | |
| Surface treatment |
| |
| Angle | 180 ° | |
| Cone angle | 60 ° | |
| Connection 2, diameter | 1/2 Inch | |
| Connection 2, diameter | 13 mm | |
| Connection 2, type | Hose end | |
| Connection no 1 length | 43.4 mm | |
| Connection no 1 thread pitch | 1.50 mm | |
| Connection no 1 thread diameter | M22 | |
| Connection no 1 thread type | Metric | |
| Connection no 1 type code | DKM | |
| Connection no 1 type | Cone | |
| HConnection no 1 wrench size | 27.0 mm | |
| Height | 6.9 mm | |
| CInside diameter | 9.9 mm | |
| Material | Steel | |
| Shape | Straight - 2 connection sides |
