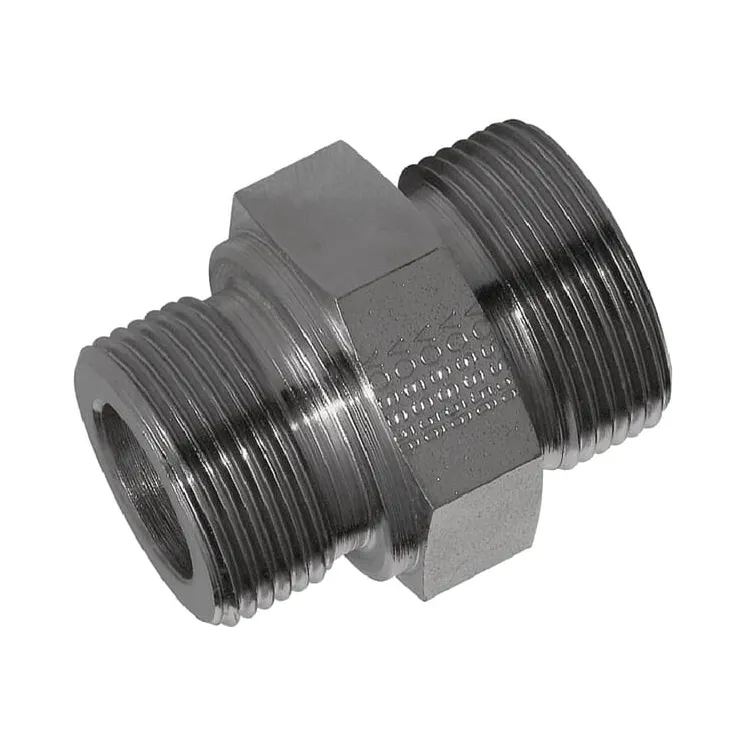

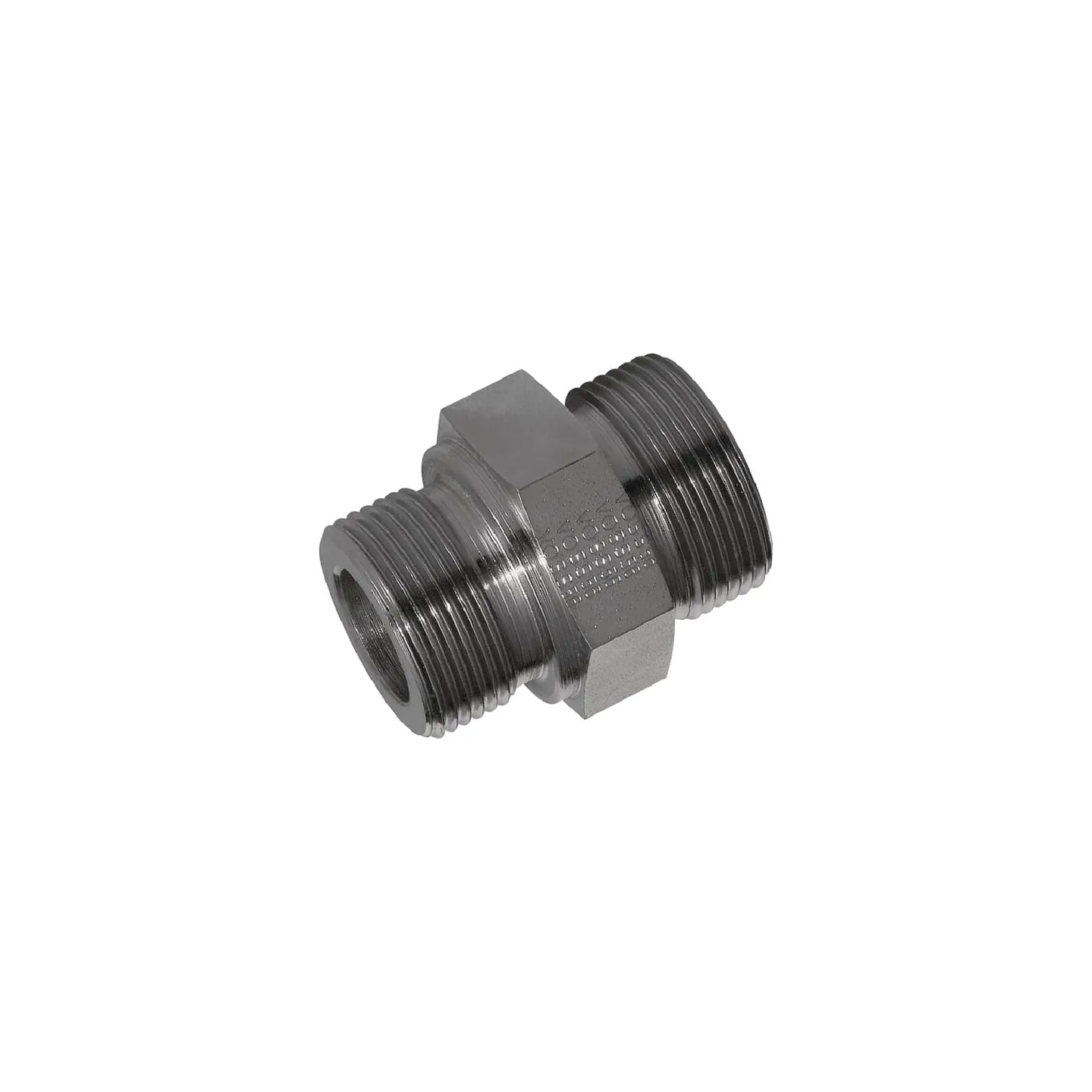

Cut ring coupling 10L M16x1,5 - BSP 3/8 - Male GES10LR38 AGRALV
search
  • Cut ring coupling 10L M16x1,5 - BSP 3/8 - Male GES10LR38 AGRALV

Cut ring coupling 10L M16x1,5 - BSP 3/8 - Male GES10LR38

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1.57
Tax included
4-5 Working days
Cut ring coupling 10L M16x1,5 - BSP 3/8 - Male GES10LR38 AGRALV
IN WAREHOUSE

39439

  • Brand
    AGRALV
  • Reference
    GES10LR38
  • In stock
    5 Items
  • Condition
    New
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
GES10LR38
EAN
Unit
Each
Pros
Reduced risk of leakage
Product details
  • Direct connection with a metric hose gland or pre-mounted coupling
  • Multiple corrosion resistance
DIN standard
  • 2353
  • 228
  • 3852
  • 2401
Surface treatment
  • Zinc
  • Nickel
L1Connection 2, centre to end distance
12.5 mm
Connection 2, thread diameter
3/8 Inch
Connection 2, thread type
BSP
Connection 2, type
Thread
Connection 2, type - male/female
Male
S2Connection 2, wrench size
19.0 mm
L2Connection no 1 center to end distance
27.5 mm
Connection no 1 diameter
10 mm
d2Connection no 1 thread pitch
1.50 mm
d2Connection no 1 thread diameter
M16
KConnection no 1 thread length
12 mm
Connection no 1 thread type
Metric
Connection no 1 type - male/female
Female
Connection no 1 type
Cutting ring
S1Connection no 1 wrench size
22.0 mm
Connection no 1 hex size
22 mm
ISO standard
228
Inside diameter
7 mm
Length
31.5 mm
Max. tightening torque
95 N·m
Max working pressure
400 BAR
Pipe diameter
10 mm
Series
L
Shape
Straight - 2 connection sides
