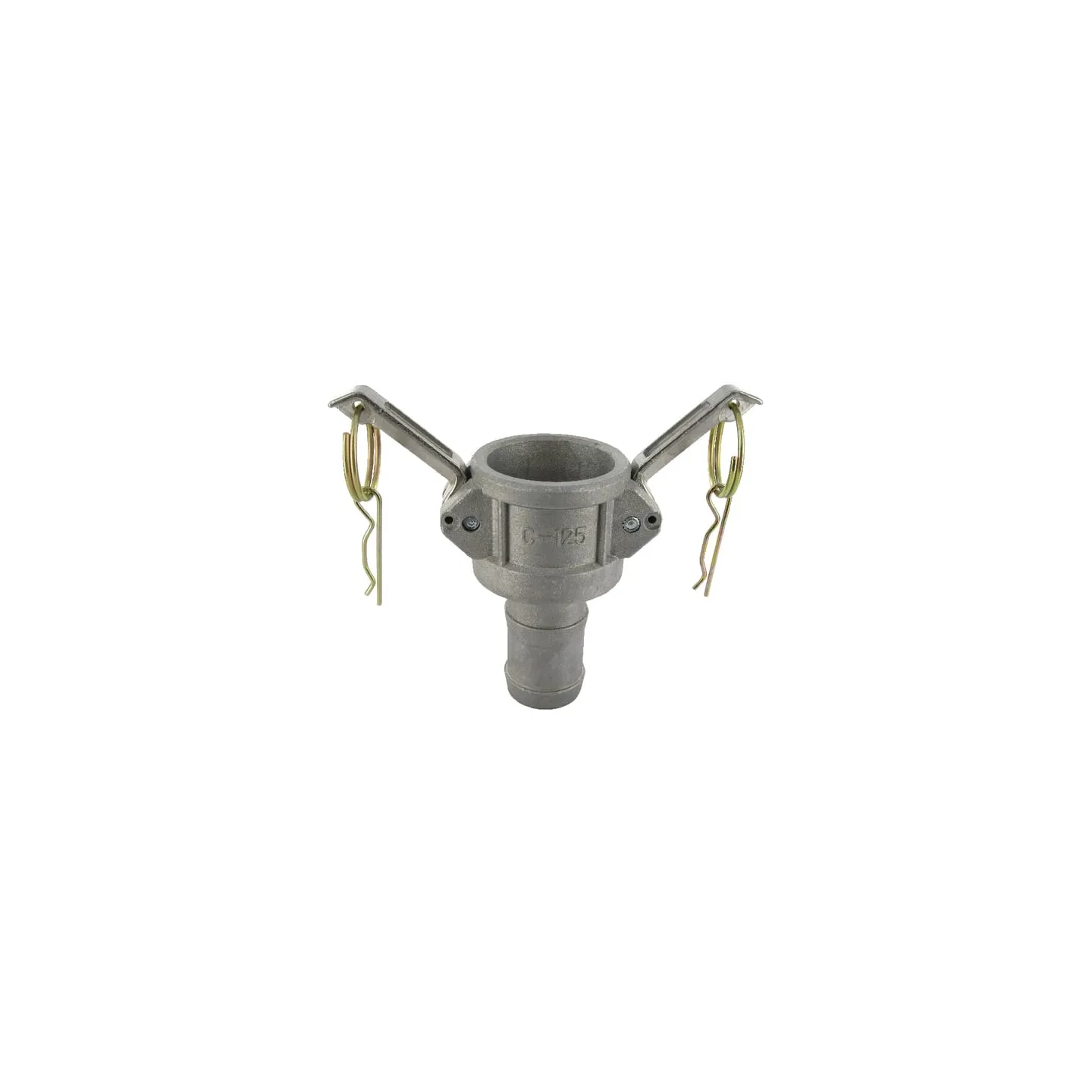

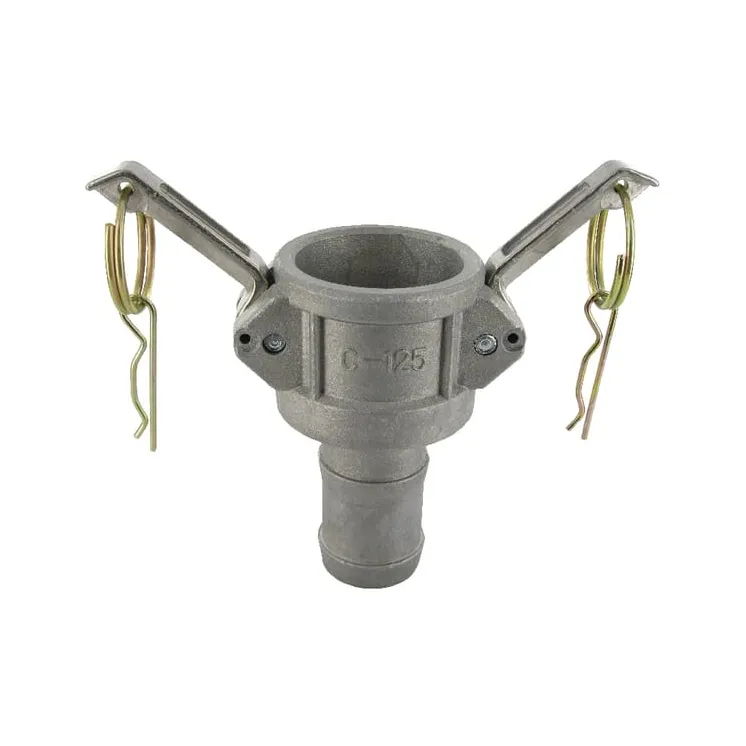

Camlock C 1 1/4 hose end Stainless steel HCN100CSS032

Name: Camlock C 1 1/4 hose end Stainless steel HCN100CSS032
Brand: AGRALV
SKU: HCN100CSS032
Price: 19.08 EUR
Availability: InStock

Payment options

€19.08

Tax included

4-5 Working days

Camlock C 1 1/4 hose end Stainless steel HCN100CSS032 AGRALV

IN WAREHOUSE

ID: 39550

Description

Part number	HCN100CSS032
EAN	3422569559558
Unit	Each
Technical info	The calliper provides the inner diameter of the female part = M (mm)  Attention: Couplings should not be disconnected under pressure or with liquid in the line These Camlock couplings are not suitable for steam en compressed air
Shape	Straight - 2 connection sides
Connection no 1 type	Quick coupling system Camlock
Connection no 1 type - male/female	Female
Connection no 1 diameter	1-1/4 Inch
Connection no 1 diameter	46 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1-1/4 Inch
Connection 2, diameter	31.8 mm
Designed for medium	Water
Pipe diameter	32 mm
Flange inside diameter	46 mm
Material	Stainless steel
