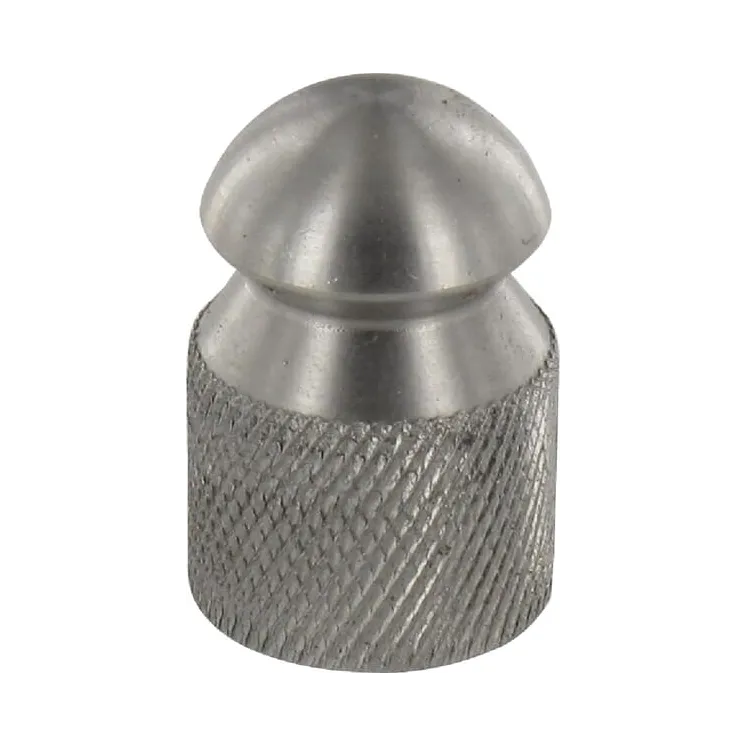

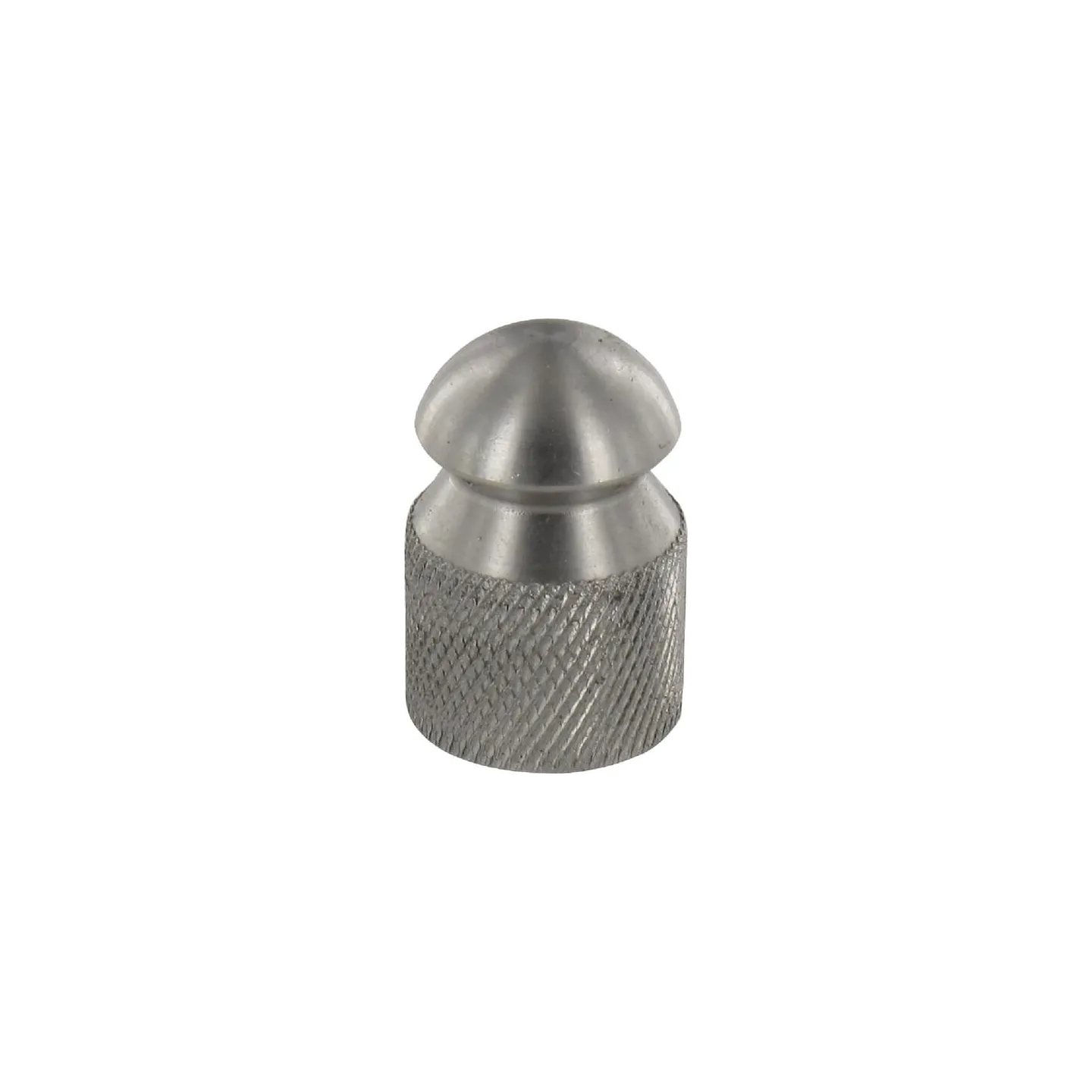

Channel nozzle 1/4 HD95100430

Name: Channel nozzle 1/4 HD95100430
Brand: AGRALV
SKU: HD95100430
Price: 14.44 EUR
Availability: InStock

Payment options

€14.44

Tax included

4-5 Working days

Channel nozzle 1/4 HD95100430 AGRALV

IN WAREHOUSE

ID: 39834

Description

Part number	HD95100430
EAN
Unit	Each
Application range	For maximum 100-mm duct pipes
Technical info	Maximum pressure at 11 l/min: 60 bar Maximum pressure at 15 l/min: 100 bar Maximum pressure at 18 l/min: 150 bar Maximum pressure at 21 l/min: 200 bar
Long description	Application: For maximum 100-mm duct pipes Technical information: Maximum pressure at 11 l/min: 60 bar Maximum pressure at 15 l/min: 100 bar Maximum pressure at 18 l/min: 150 bar Maximum pressure at 21 l/min: 200 ba
Inlet connection type	Thread
Max working pressure	350 BAR
Size number	050
Flow rate at 160 bar pressure	14.3 l/min
Flow rate at 200 bar pressure	16 l/min
Mounting thread diameter	1/4 Inch
