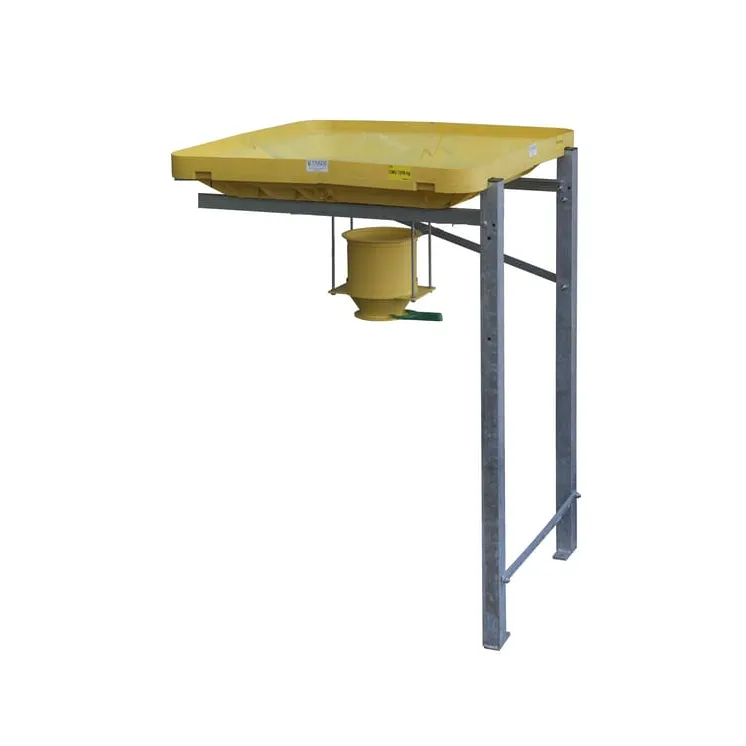

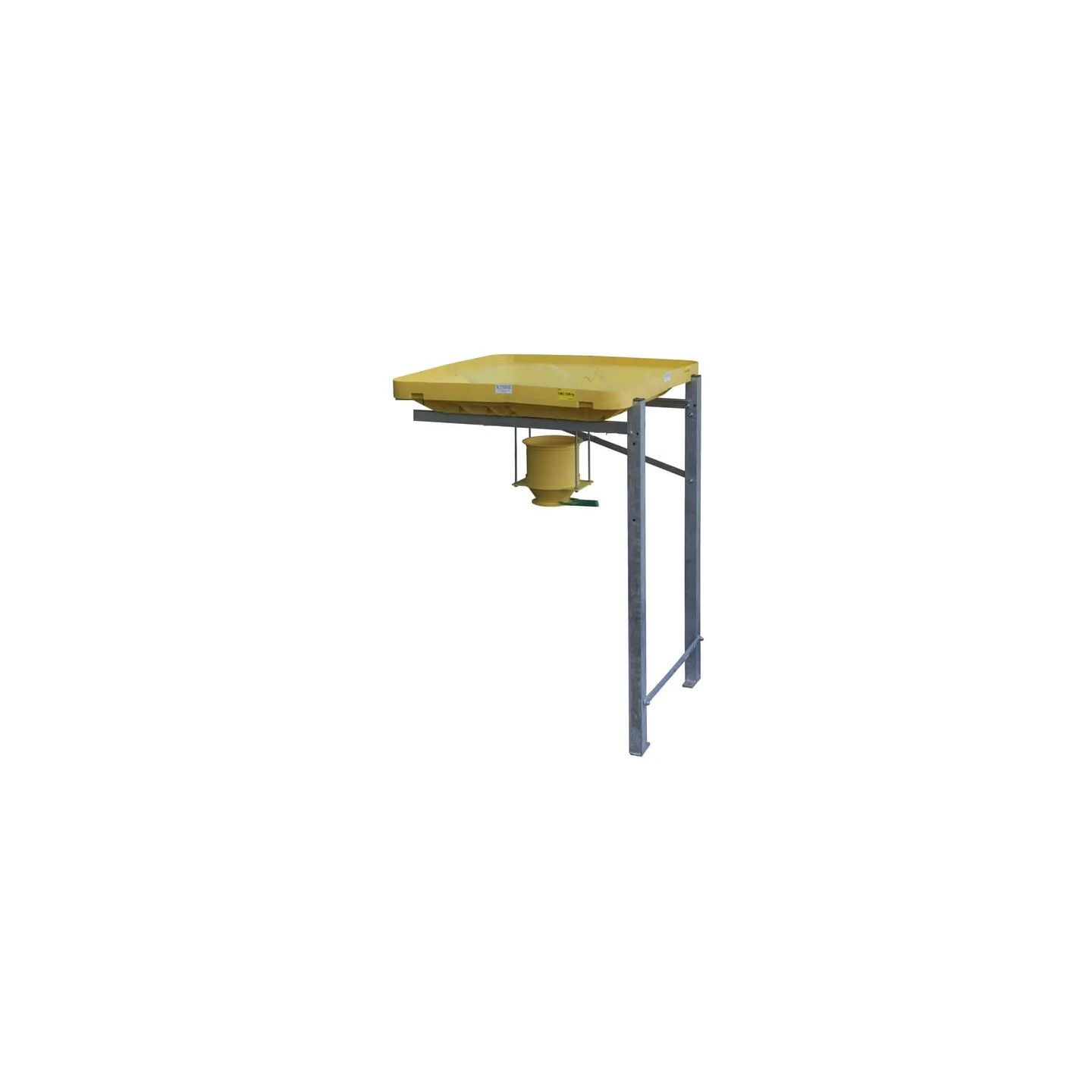

Big-Bag workstation extention MRCV3002261 AGRALV
search
  • Big-Bag workstation extention MRCV3002261 AGRALV

Big-Bag workstation extention MRCV3002261

€829.20
Tax included
On Request
Big-Bag workstation extention MRCV3002261 AGRALV
ON REQUEST

40292

Part number
MRCV3002261
EAN
Unit
Each
Product details
  • Workstation for big-bags with a spout or flat bottom. Lightens the workload and makes work easier. Simplifies unloading of minerals, concentrate pallets, granules etc. ...
  • Construction consists of: galvanised steel frame, plastic plate in 4 parts (polyamide 6) equipped with unloading units. The set is delivered in several boxes.
  • Basic station is expandable by adding two feet to the main unit with the Plastic plate in 4 parts (polyamide 6) fitted with release units.
  • Ability to empty the product in a wheelbarrow or bucket.
  • Place the big-bag on the workstation (In the case of a big-bag with a chute: Remove the cylinder from the Funnel Bag fixed with tie rods under the table top - Remove the first link from the big- bag - Stand the cylinder in the Funnel -Bag – remove the second link, the chute burst against the cylinder) - (In the case of a big-bag with a flat bottom: gradually position the big-bag on the tip placed on the workstation) - Open the valve to empty in a wheelbarrow or bucket - Closing the valve.
  • High under Funnel-Bag: 897 mm
  • Width between the two legs: 1070 mm
Type
Extension
Total height
1530 mm
Total length
1130 mm
Max capacity load
1250 kg
Material
  • Steel
  • Polyamide 6%
Extra info
  • Unit, Packing in 2 cartons box
  • Weight 47 kg
  • Brand
    AGRALV
  • Reference
    MRCV3002261
  • Condition
    New
