| Part number | NH64 | |
|---|---|---|
| EAN | ||
| Unit | Each | |

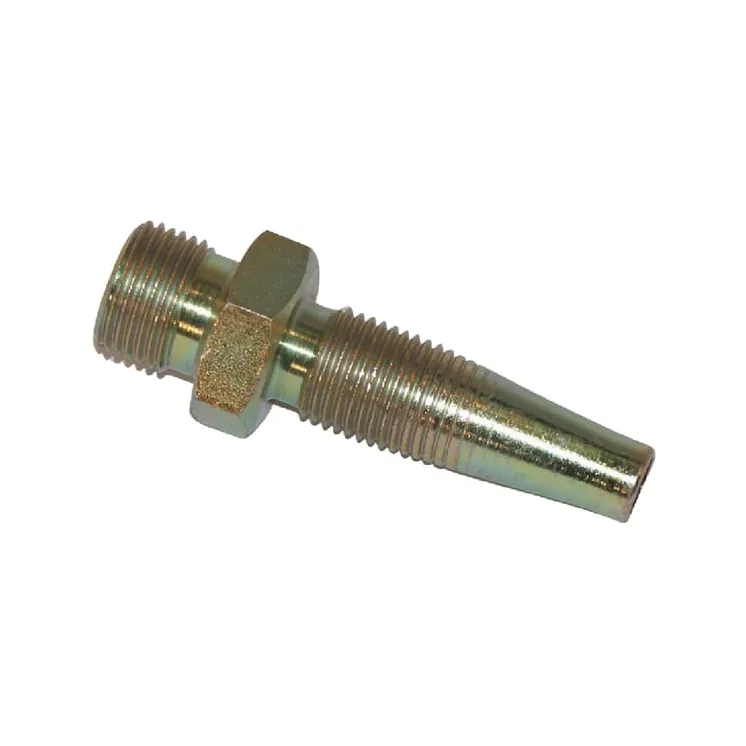

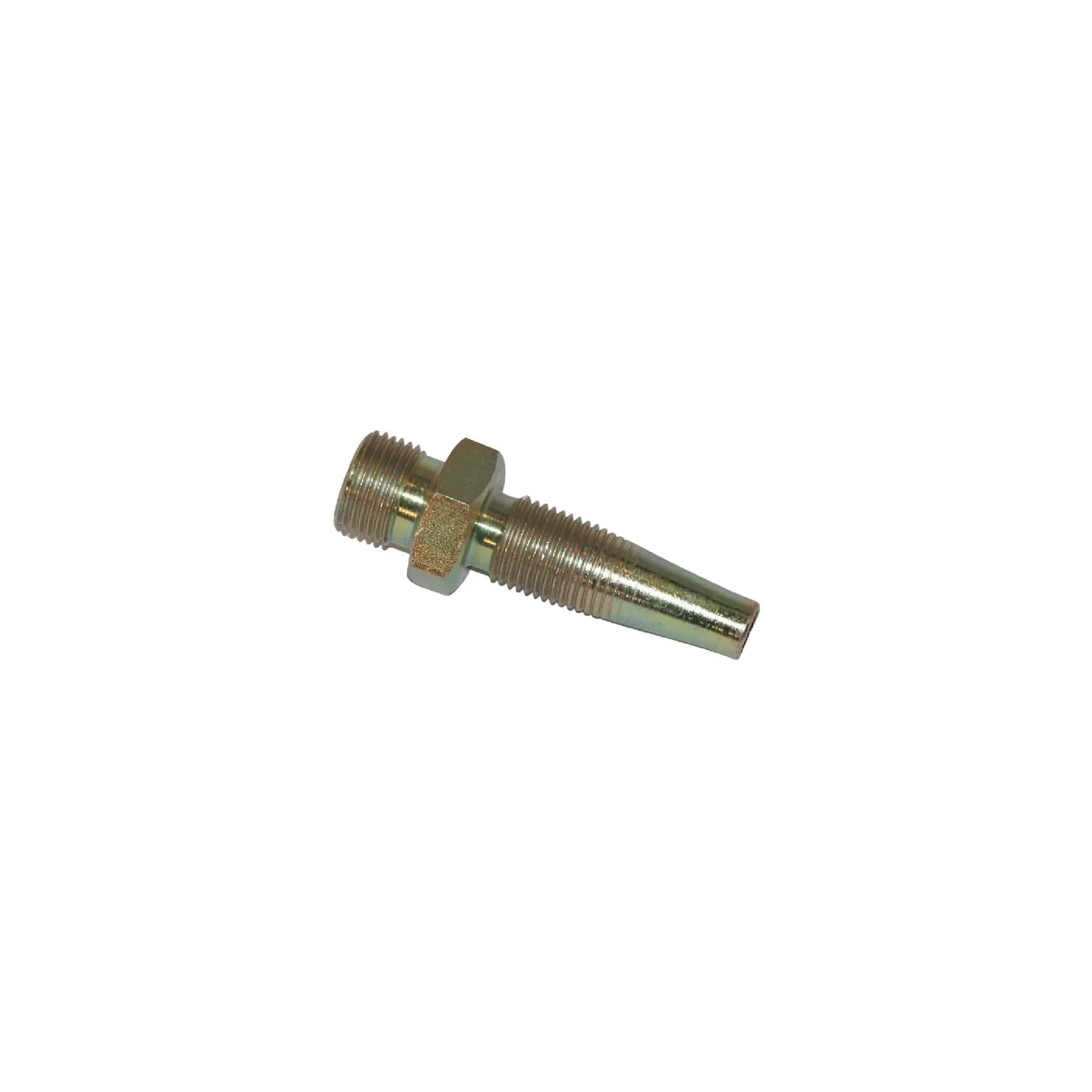

| Product details | Metal on metal seal- Screw pipe nozzle allows a hose assembly to be assembled without the use of a hose press | |
| Shape | Straight - 2 connection sides | |
| Connection no 1 type | Thread | |
| Connection no 1 type - male/female | Male | |
| Connection no 1 type code | DKR | |
| Connection no 1 length | 33.3 mm | |
| Connection no 1 thread diameter | 1/4 Inch | |
| Connection no 1 thread type | BSP | |
| HConnection no 1 wrench size | 19.0 mm | |
| Connection 2, type | Hose end | |
| Connection 2, diameter | 1/4 Inch | |
| Connection 2, diameter | 6 mm | |
| LConnection 2, length | 11.7 mm | |
| ISO standard | 228 | |
| CInside diameter | 4.3 mm | |
| Height | 11.7 mm | |
| Angle | 180 ° | |
| Cone angle | 60 ° | |
| Material | Steel | |
| Surface treatment |
|
