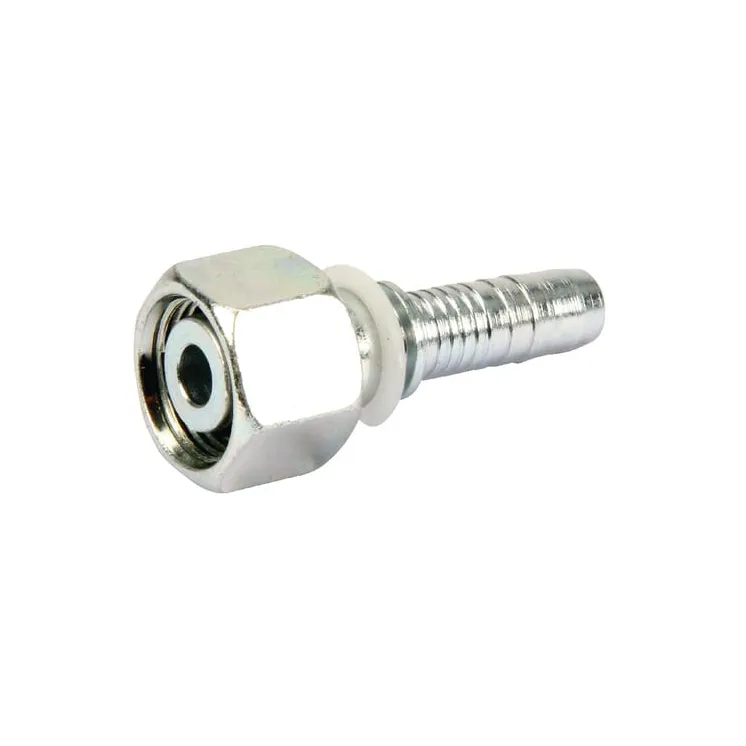

Insert DN16-M22x1.5-15L PGLO1622

Name: Insert DN16-M22x1.5-15L PGLO1622
Brand: AGRALV
SKU: PGLO1622
Price: 6.33 EUR
Availability: InStock

Payment options

€6.33

Tax included

4-5 Working days

Insert DN16-M22x1.5-15L PGLO1622 AGRALV

IN WAREHOUSE

ID: 40331

Description

Part number	PGLO1622
EAN
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Long description	Application range: L-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Shape	Straight - 2 connection sides
Connection no 1 type	Swivel nut O-ring cone
Connection no 1 type - male/female	Female
CConnection no 1 length	28 mm
F1Connection no 1 thread diameter	M22
F1Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread type	Metric
CH1Connection no 1 wrench size	27.0 mm
Connection 2, type	Hose end
Connection 2, diameter	5/8 Inch
Connection 2, diameter	16 mm
Cone angle	24 Â°
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	15L
