Insert DN06-M12x1,5-6L-45° PGL61245 AGRALV
search
  • Insert DN06-M12x1,5-6L-45° PGL61245 AGRALV

Insert DN06-M12x1,5-6L-45° PGL61245

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€8.08
Tax included
On Request

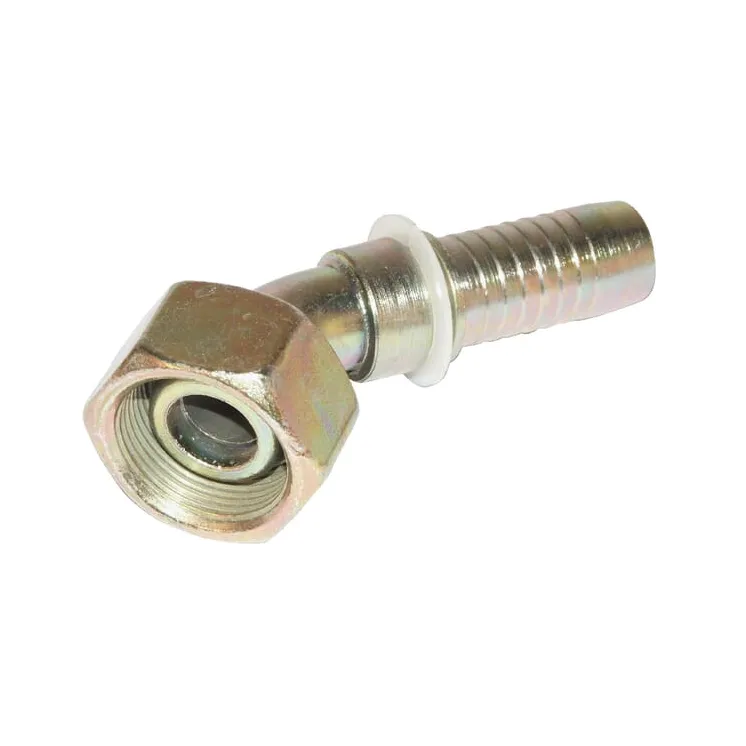

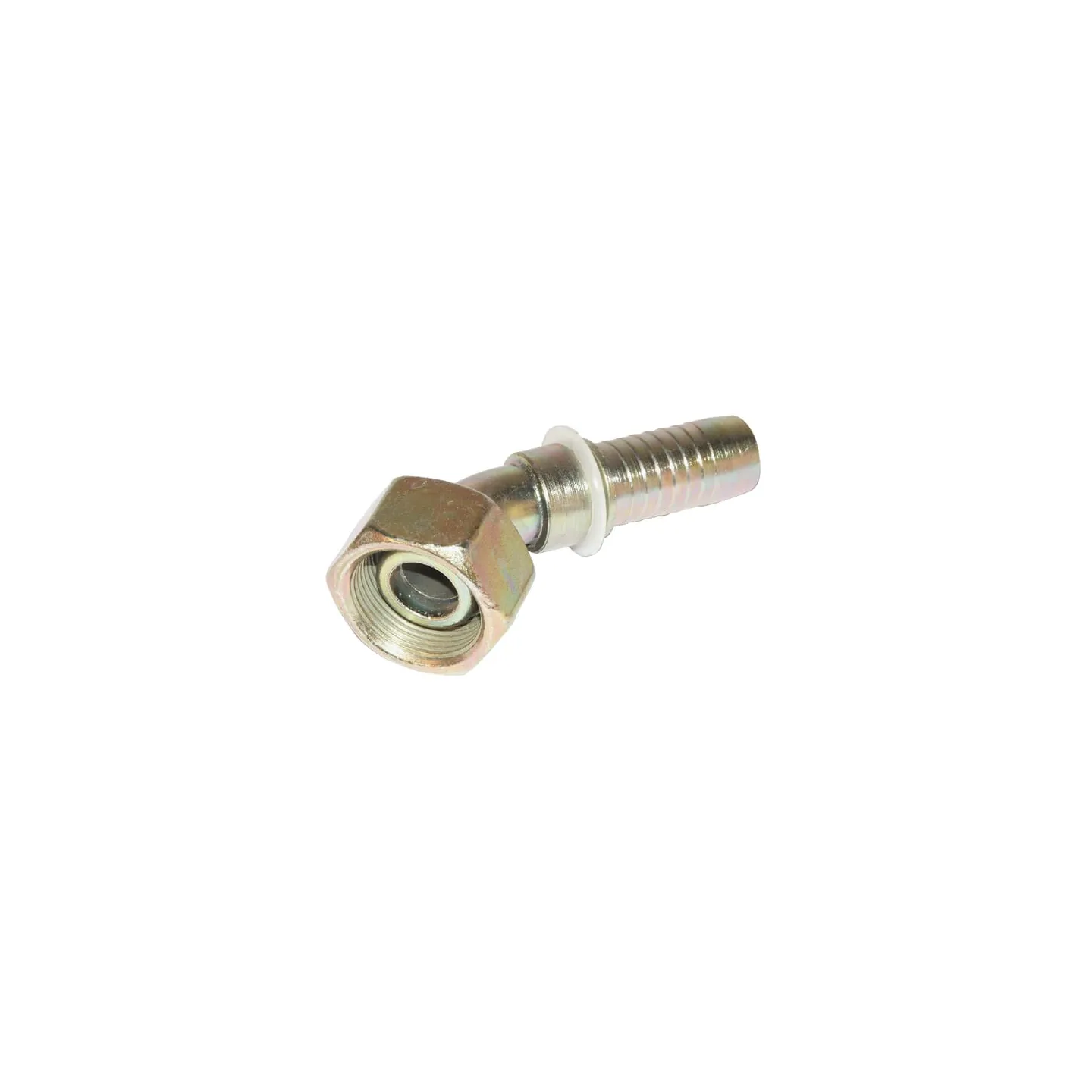

Insert DN06-M12x1,5-6L-45° PGL61245 AGRALV
ON REQUEST

40363

Part number
PGL61245
EAN
Unit
Each
Product details
  • Cone, metal on metal seal
  • Cutting ring adaptors L series 24° cone
  • Adaptors with 60° cone
  • Do not use for 4-layer hose ABT (4SP)
Long description
  • Application range:
  • Cutting ring adapter series L, 24° cone
  • Adapter with 60° cone
  • Properties:
  • Cone, metal on metal seal
  • Technical information:
  • Do not use for HDR hoses with 4 inserts (4SP)
Shape
Elbow - 2 connection sides
Connection no 1 type
Thread
Connection no 1 type - male/female
Female
Connection no 1 type code
DKM
Connection no 1 length
35 mm
Connection no 1 thread diameter
M12
Connection no 1 thread pitch
1.50 mm
Connection no 1 thread type
Metric
HConnection no 1 wrench size
14.0 mm
LConnection no 1 center to end distance
62 mm
Connection 2, type
Hose end
Connection 2, diameter
1/4 Inch
Connection 2, diameter
6 mm
DConnection 2, centre to end distance
16 mm
CConnection centre to insert distance
35 mm
Angle
45 °
Cone angle
60 °
Material
Steel
Surface treatment
  • Zinc-plated
  • White passivated
Series
6L
  • Brand
    AGRALV
  • Reference
    PGL61245
  • Condition
    New
