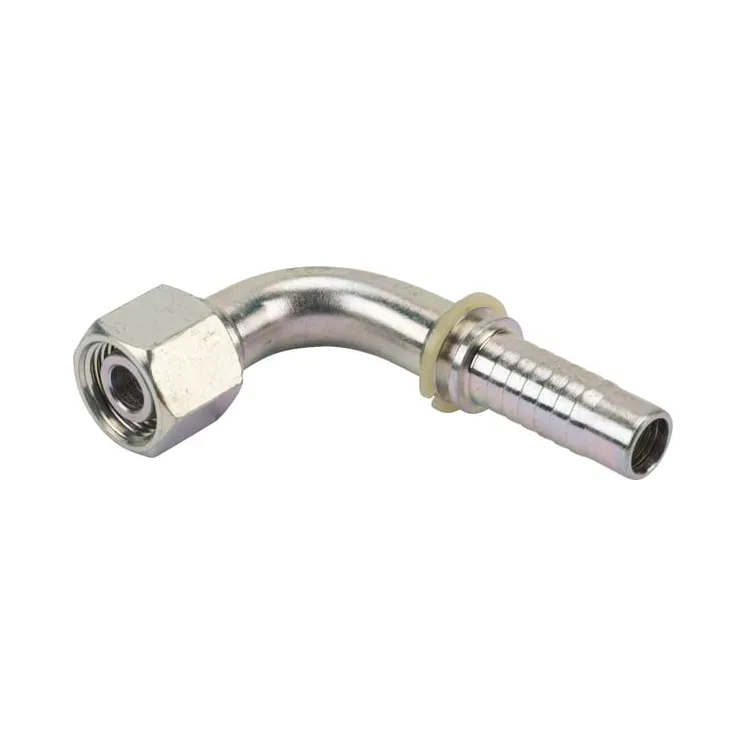

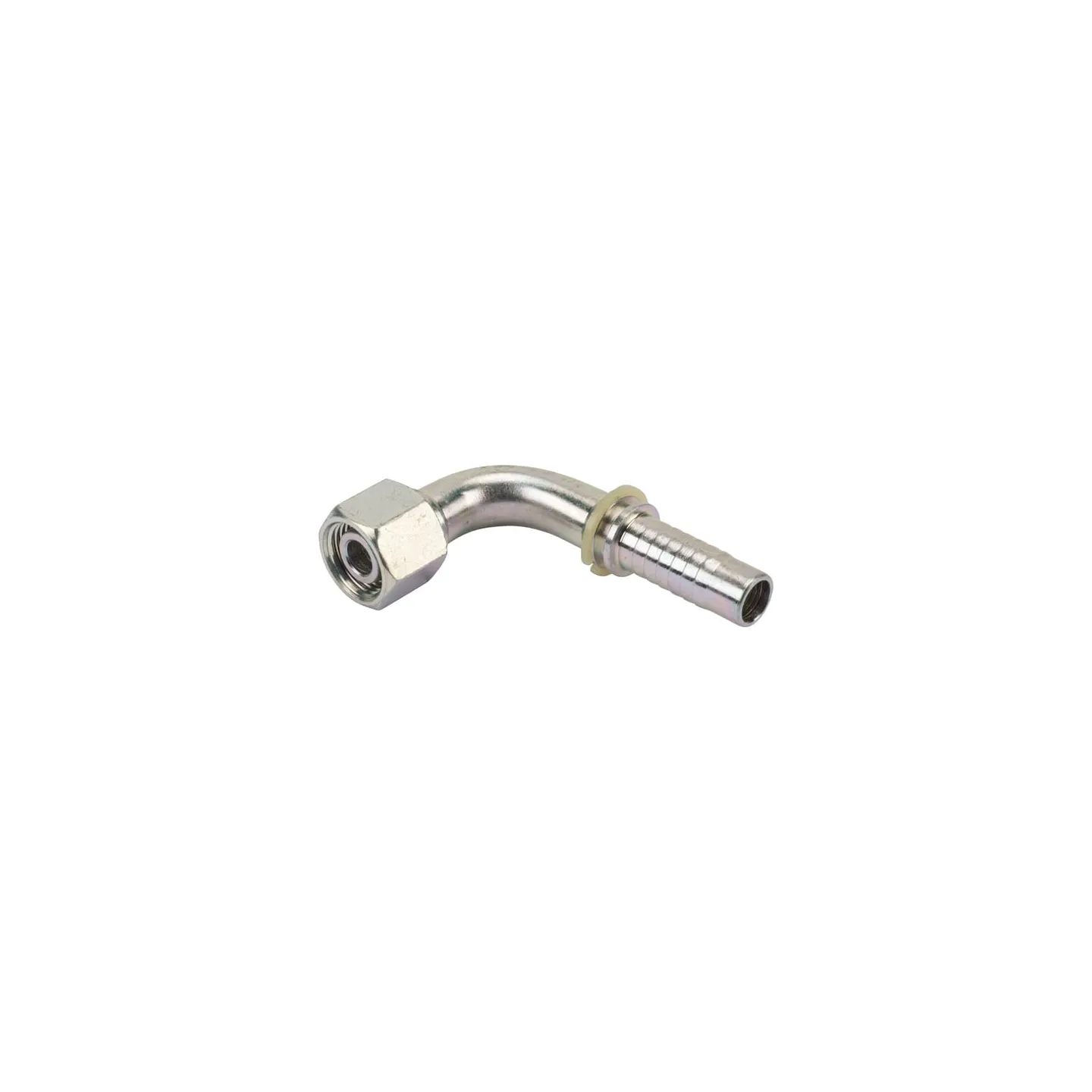

Insert DN13-M18x1,5-12L-90Â° PGL131890

Name: Insert DN13-M18x1,5-12L-90Â° PGL131890
Brand: AGRALV
SKU: PGL131890
Price: 14.79 EUR
Availability: InStock

Payment options

€14.79

Tax included

4-5 Working days

Insert DN13-M18x1,5-12L-90Â° PGL131890 AGRALV

IN WAREHOUSE

ID: 40393

Description

Part number	PGL131890
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24Â° cone Adaptors with 60Â° cone Do not use for 4-layer hose HDR (4SP)
Shape	Elbow - 2 connection sides
Connection no 1 type	Thread
Connection no 1 type - male/female	Female
Connection no 1 type code	DKM
Connection no 1 length	39.8 mm
Connection no 1 thread diameter	M18
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread type	Metric
HConnection no 1 wrench size	27.0 mm
Connection 2, type	Hose end
Connection 2, diameter	1/2 Inch
Connection 2, diameter	13 mm
Angle	90 Â°
Cone angle	60 Â°
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	12L
