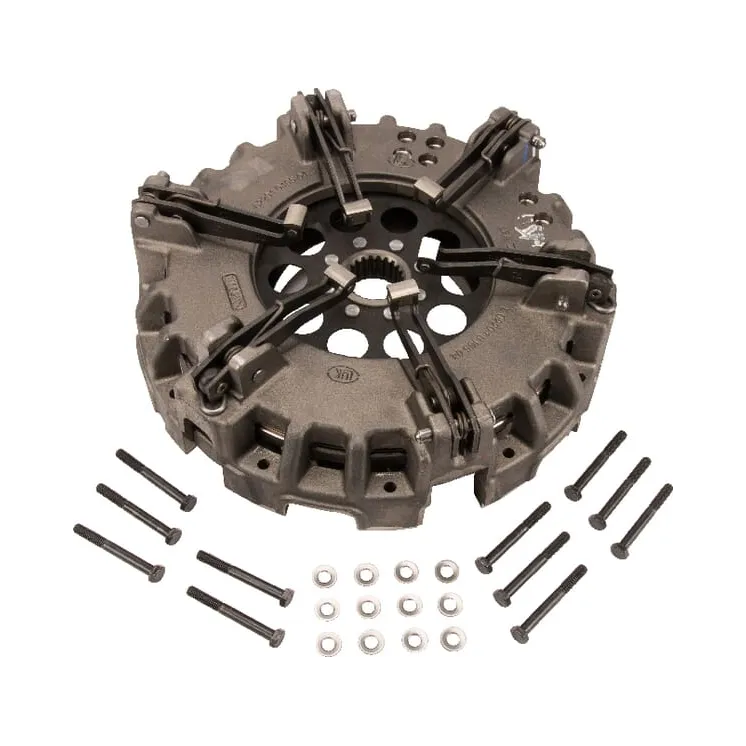

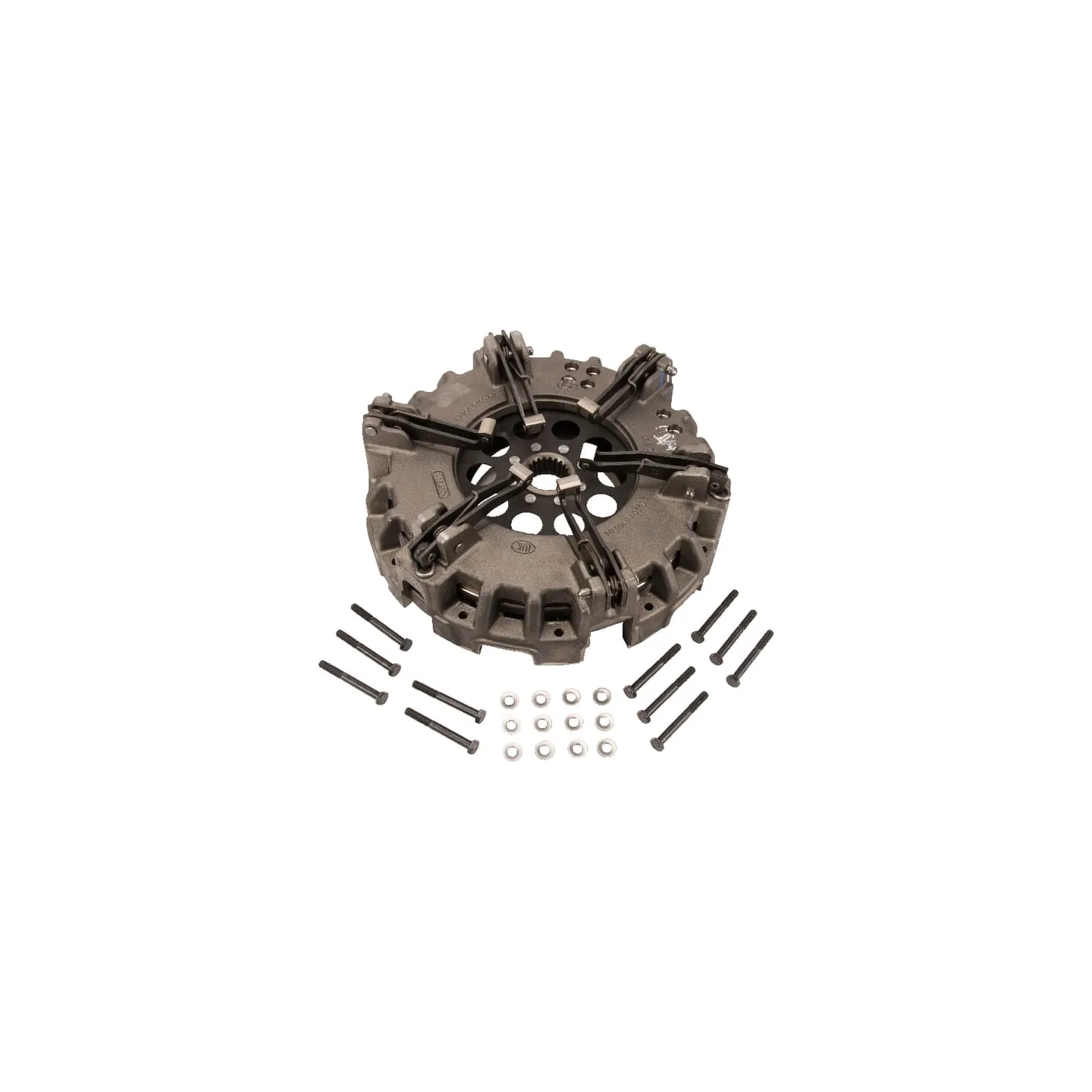

Clutch cover double TGU6 231002316 LuK 1888034302 231002314 2310023160

Clutch cover double TGU6 231002316 1888034302 231002314 2310023160

Name: Clutch cover double TGU6 231002316 1888034302 231002314 2310023160
Brand: LuK
SKU: 231002316
Price: 649.01 EUR
Availability: BackOrder

Payment options

€649.01

Tax included

On Request

Clutch cover double TGU6 231002316 LuK 1888034302 231002314 2310023160

ON REQUEST

ID: 49439

Description

Part number	231002316
EAN	4013872321070
Unit	Each
Technical info	SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers
Diameter (mm)	500/500 mm
Thickness	160 mm
