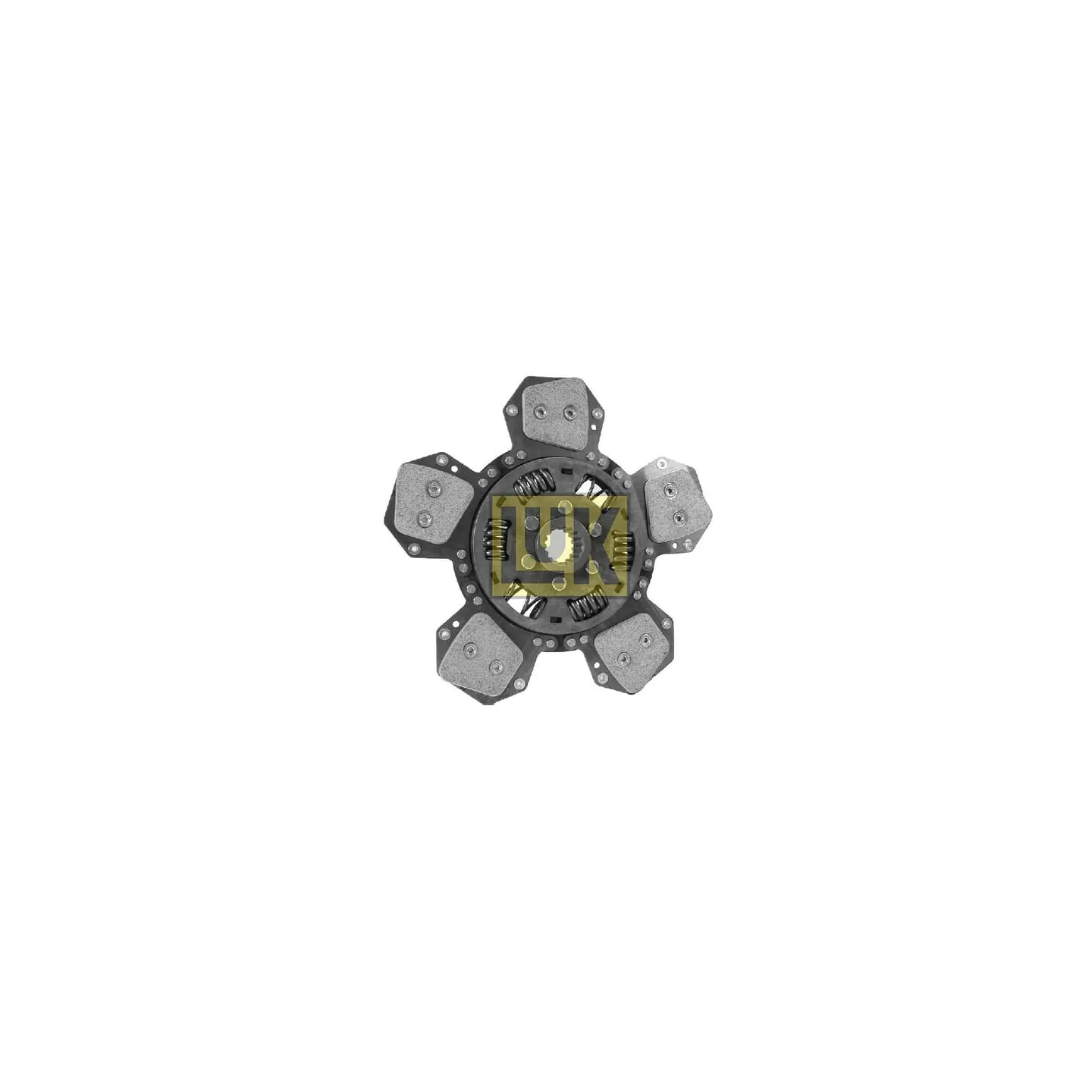

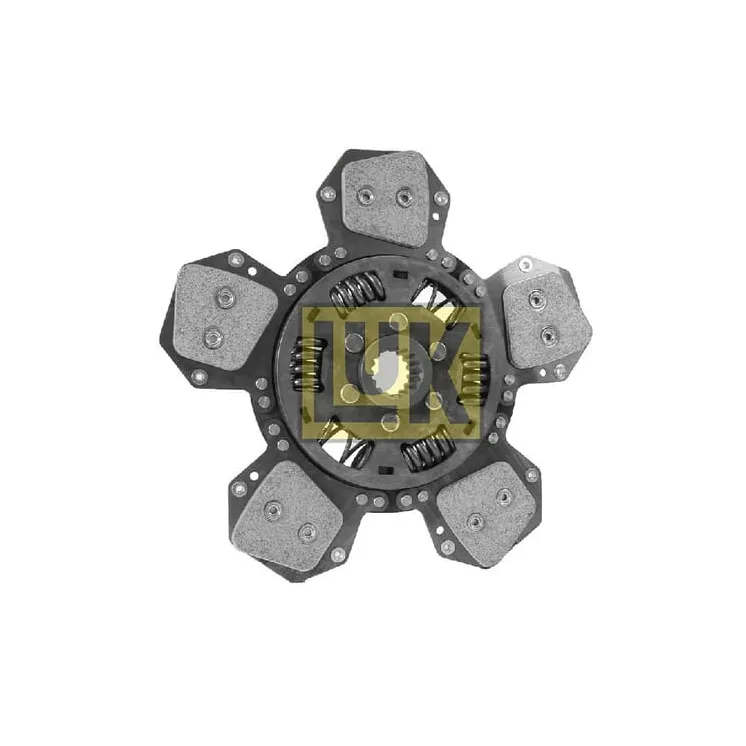

Clutch disc 329001710 329001310

Name: Clutch disc 329001710 329001310
Brand: LuK
SKU: 329001710
Price: 239.79 EUR
Availability: BackOrder

Payment options

€239.79

Tax included

On Request

Clutch disc 329001710 LuK 329001310

ON REQUEST

ID: 49500

Description

Part number	329001710
EAN	4005108340412
Unit	Each
Long description	Clutch plates overview
Product details	1st letter: hub version U = rigid T = torsion damped 2nd letter: cushion deflection K = without axial cushion S = with segment cushion D = with dual segment cushion Z = with intermediate segments L = central plate with segments 3rd letter: friction material C = cerametallic lining F = asbestos free 4th letter: torsion damper N = standard damper A = with compensating springs V = pre-damper
Technical info	1st figure: basic version U = rigid T = torsion damped 2nd figure: cushion deflection K = without axial cushion S = with segment cushion D = with dual segment cushion Z = with intermediate segments L = central plate with segments 3rd figure: friction material C = cerametallic lining F = asbestos free 4th figure: torsion damper N = standard damper A = with compensating springs V = pre-damper
Connection number of splines/groves	17
LuK type code	TDCN
Diameter inside groove	32 mm
Groove diameter	28 mm
Levers	No
Number of paddles	5
Outside diameter	290 mm
