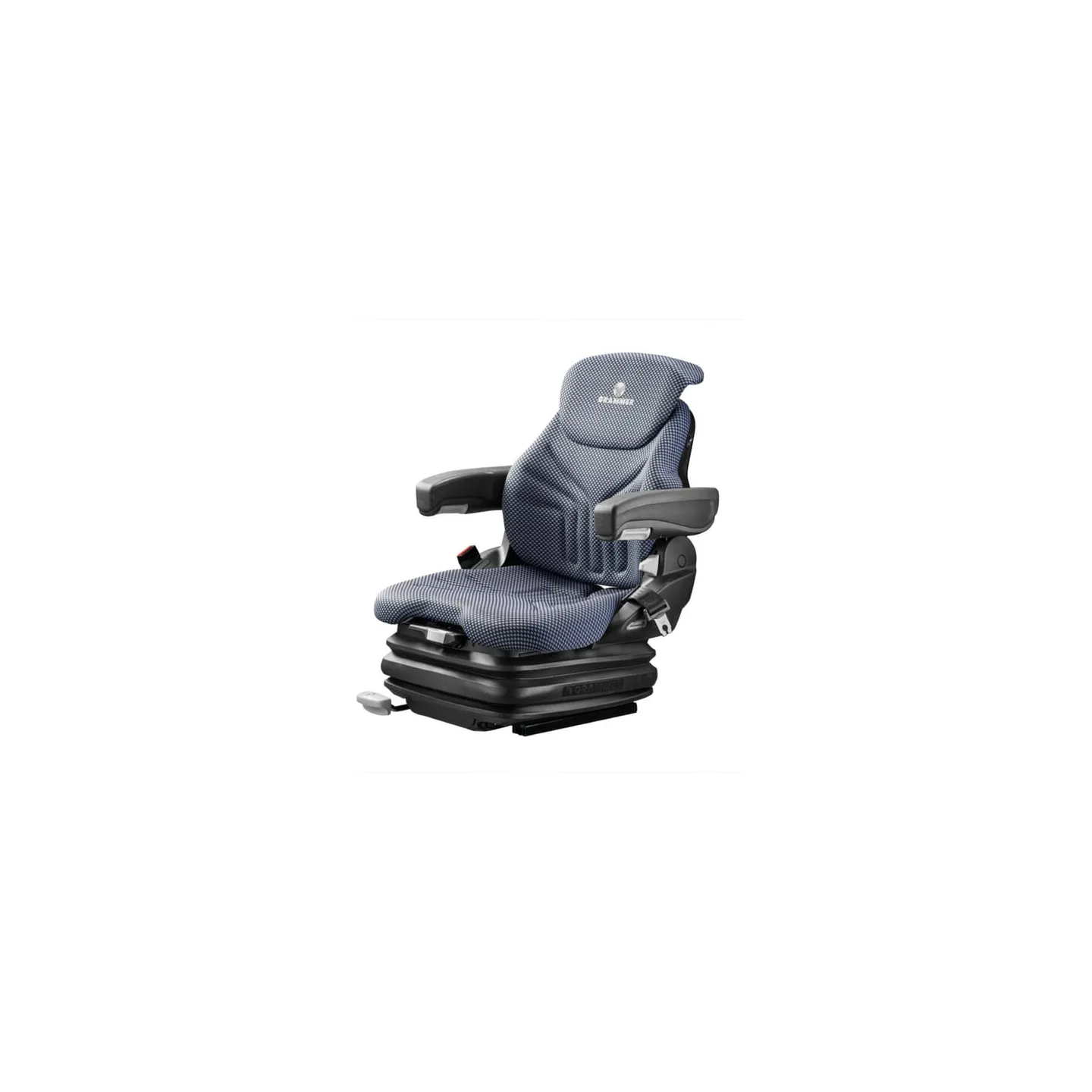

Seat Primo XL Plus fabric 12V low frequency G1453490 Grammer
search
  • Seat Primo XL Plus fabric 12V low frequency G1453490 Grammer

Seat Primo XL Plus fabric 12V low frequency G1453490

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,490.71
Tax included
4-5 Working days
Seat Primo XL Plus fabric 12V low frequency G1453490 Grammer
IN WAREHOUSE

55361

Part number
G1453490
EAN
Unit
Each
Long description
Seat Primo XL with cloth Grammer
Details
  • Air-sprung seat
  • Compliant with ISO 6683 for construction machines
  • Compliant with FEM 4.002 for forklifts
Application range
For construction machines and forklifts
Properties
  • Seat cushion width 470mm
  • Spring travel 110mm
  • Horizontal adjustment 210mm
  • Backrest inclination adjustment, -5° - +30°
  • Lumbar support, mechanically adjustable
  • Restraining system with Duo Sensitiv, retracting
  • Electropneumatic weight adjustment 45 - 170 kg
  • Weight 28 kg
Benefits
  • Elbow room through asymmetric backrest
  • Easy to operate
  • Low installation dimensions
Suspension type
Pneumatic
Upholstery material
Fabric
Upholstery colour
  • Blue
  • Black
Total width
520 mm
Consists of
  • Seat contact switch
  • Backrest extention
Armrests included
No
Backrest extension included
No
Seatbelt included
Yes
Contact switch included
Yes
Auto user weight adjustment
No
Model
n/a
Back angle adjustment
30 °
Depth
693 mm
Min. working load
45 kg
Suspension stroke
11 cm
Max. working load
170 kg
Total height
653 mm
Heating kit included
No
Total length
693 mm
Supply voltage
12 V
  • Brand
    Grammer
  • Reference
    G1453490
  • In stock
    1 Item
  • Condition
    New
